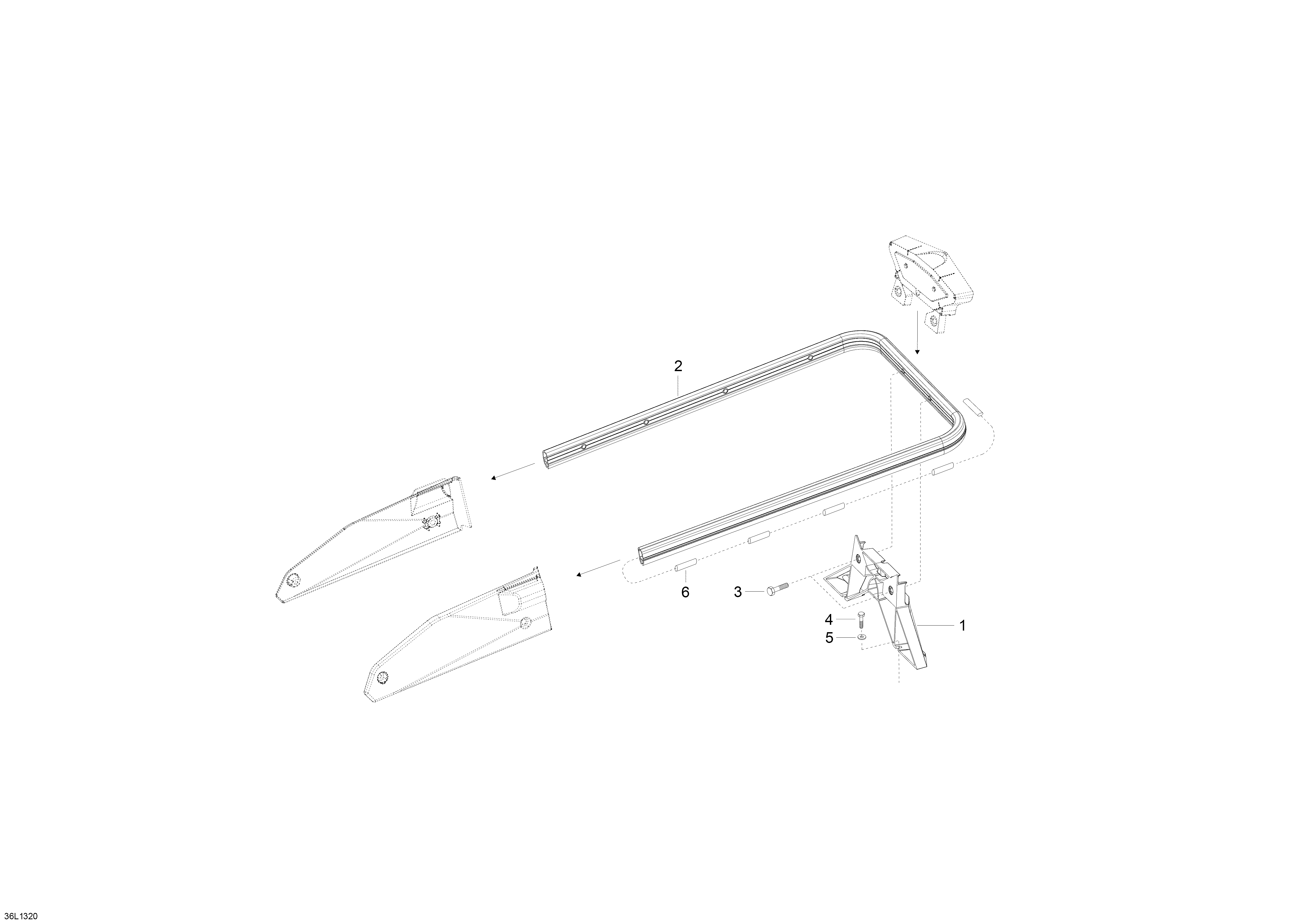

09- Cargo Rack для BRP Lynx 49 Ranger 600 E-TEC - 2013
-
№АртикулНазвание
-
1511000559 Rear Light SupportRear Light Support
-
2510005582 Rack BarRack Bar
-
3207663534 Screw Hex. Flange M6 x 35Screw Hex. Flange M6 x 35
-
4205562044 Socket Head Screw M6 x 20Socket Head Screw M6 x 20
-
5234062410 Flat WasherFlat Washer
-
6511000657 Support HoseSupport Hose
