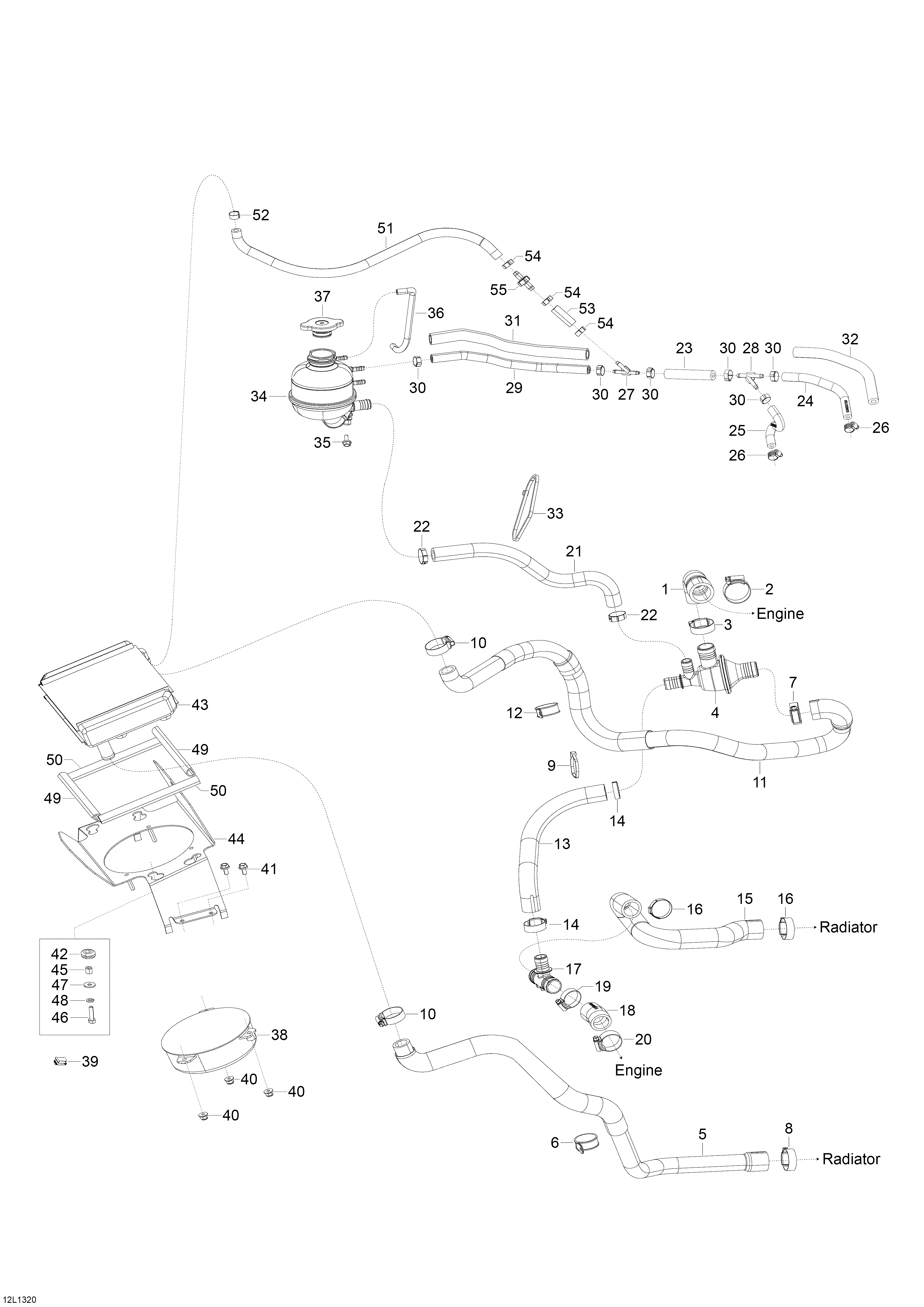

01- Cooling System для BRP Lynx 49 Ranger 600 E-TEC - 2013
-
№АртикулНазвание
-
1509000678 Hose, Engine OutletHose, Engine Outlet
-
2509000443 Gear ClampGear Clamp
-
3509000529 Crimp ClampCrimp Clamp
-
4509000499 Thermostat HousingThermostat Housing
-
5509000760 Hose, RadiatorHose, Radiator
-
627011 ClampClamp
-
7509000181 Crimp ClampCrimp Clamp
-
8509000443 Gear ClampGear Clamp
-
9414115200 Tie-Rap 180mmTie-Rap 180mm
-
10293650099 Crimp ClampCrimp Clamp
-
11509000761 Hose, ThermostatHose, Thermostat
-
1227011 ClampClamp
-
13509000672 Bypass HoseBypass Hose
-
14293650099 Crimp ClampCrimp Clamp
-
15509000589 Hose, RadiatorHose, Radiator
-
16509000443 Gear ClampGear Clamp
-
17509000372 T-FittingT-Fitting
-
18509000675 Hose, RadiatorHose, Radiator
-
19509000529 Crimp ClampCrimp Clamp
-
20509000443 Gear ClampGear Clamp
-
21509000676 Filling HoseFilling Hose
-
22509000442 Crimp ClampCrimp Clamp
-
23415129508 HoseHose
-
24509000769 HoseHose
-
25509000768 HoseHose
-
26293650170 Gear ClampGear Clamp
-
27293710059 Y-ConnectorY-Connector
-
28293710059 Y-ConnectorY-Connector
-
29415129508 HoseHose
-
30293650046 Crimp ClampCrimp Clamp
-
31415080000 Protector TubeProtector Tube
-
32513033231 Protector TubeProtector Tube
-
33293750008 Tie-Rap 368mmTie-Rap 368mm
-
34509000368 Coolant TankCoolant Tank
-
35241151640 Hex. Flange Screw K50 x 16Hex. Flange Screw K50 x 16
-
36415110000 HoseHose
-
37509000180 Pressure CapPressure Cap
-
38509000837 Cooling FanCooling Fan
-
39710000992 ClipClip
-
40233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
41207661244 Hex. Flange Screw M6 x 12Hex. Flange Screw M6 x 12
-
42293720053 GrommetGrommet
-
43509000756 RadiatorRadiator
-
44509000746 Radiator SupportRadiator Support
-
45605453745 BushingBushing
-
46207162044 Hex. Cap Screw M6 x 20Hex. Cap Screw M6 x 20
-
47234062410 Flat Washer M6Flat Washer M6
-
4820052 Lock Washer M6Lock Washer M6
-
49509000823 D-Seal 12 x 15D-Seal 12 x 15
-
50509000824 D-Seal 12 x 15D-Seal 12 x 15
-
51509000407 HoseHose
-
52293650140 Crimp ClampCrimp Clamp
-
53509000407 HoseHose
-
54293650140 Crimp ClampCrimp Clamp
-
55509000153 Check ValveCheck Valve
