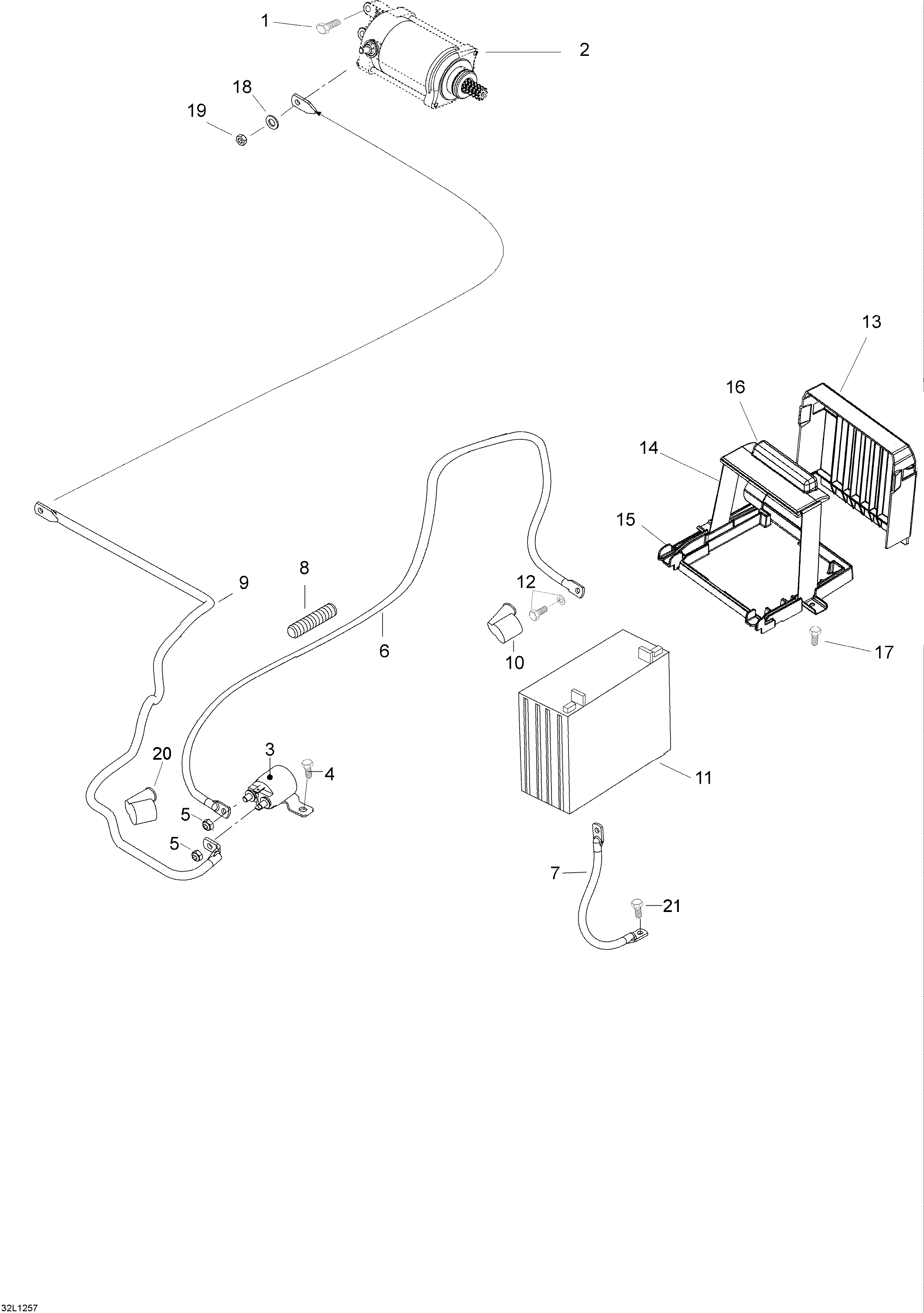

10- Electric Starter And Battery для BRP Lynx 59 YETI 550 - 2012
-
№АртикулНазвание
-
1420440647 Flanged Torx Screw M6 X 30Flanged Torx Screw M6 X 30
-
2515176858 Starter Ass'yStarter Ass'y
-
3515176011 Starter RelayStarter Relay
-
4207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
5232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
6515176967 Battery + wire (1200mm)Battery + wire (1200mm)
-
7515176780 Ground WireGround Wire
-
828015 TubingTubing
-
9515175905 Battery WireBattery Wire
-
10710000495 Protector CapProtector Cap
-
11410301203 Battery Ass'y, 18 AmperesBattery Ass'y, 18 Amperes
-
12295500849 Battery Fastener KitBattery Fastener Kit
-
13510005079 Battery CoverBattery Cover
-
14510005143 Battery StrapBattery Strap
-
15515176804 Battery SupportBattery Support
-
16510005146 Strap CoverStrap Cover
-
17207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
19232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
20710000495 Protector CapProtector Cap
-
21207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
22233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
