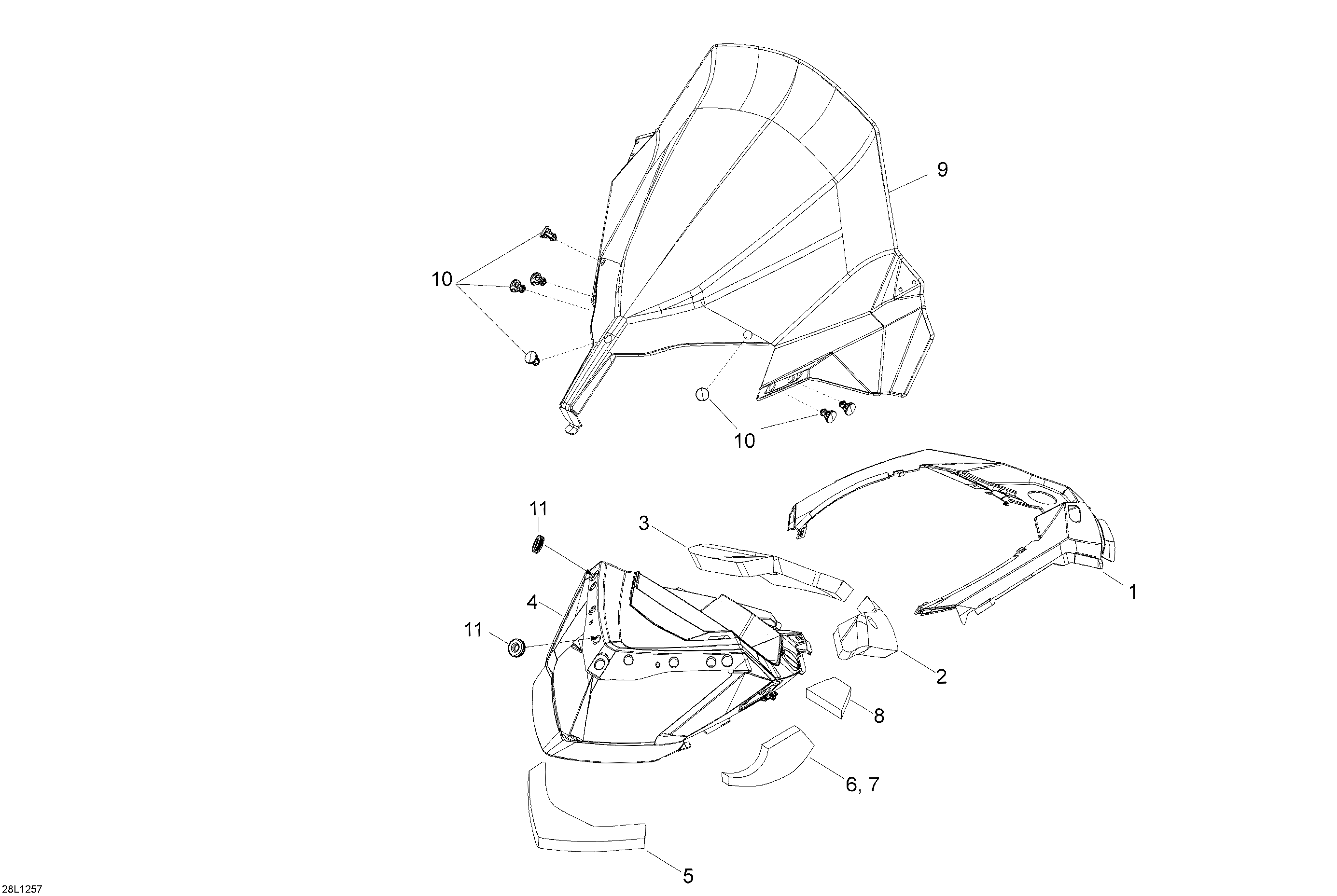

09- Windshield And Console для BRP Lynx 59 YETI 550 - 2012
-
№АртикулНазвание
-
1517304820 ConsoleConsole
-
2517304317 InsulatorInsulator
-
3517304318 InsulatorInsulator
-
4517304002 Indicator SupportIndicator Support
-
5517304314 InsulatorInsulator
-
6517304315 InsulatorInsulator
-
7517304316 InsulatorInsulator
-
8517304319 InsulatorInsulator
-
9860200555 Windshield Ass'yWindshield Ass'y
-
10517304744 ButtonButton
-
11517303756 GrommetGrommet
