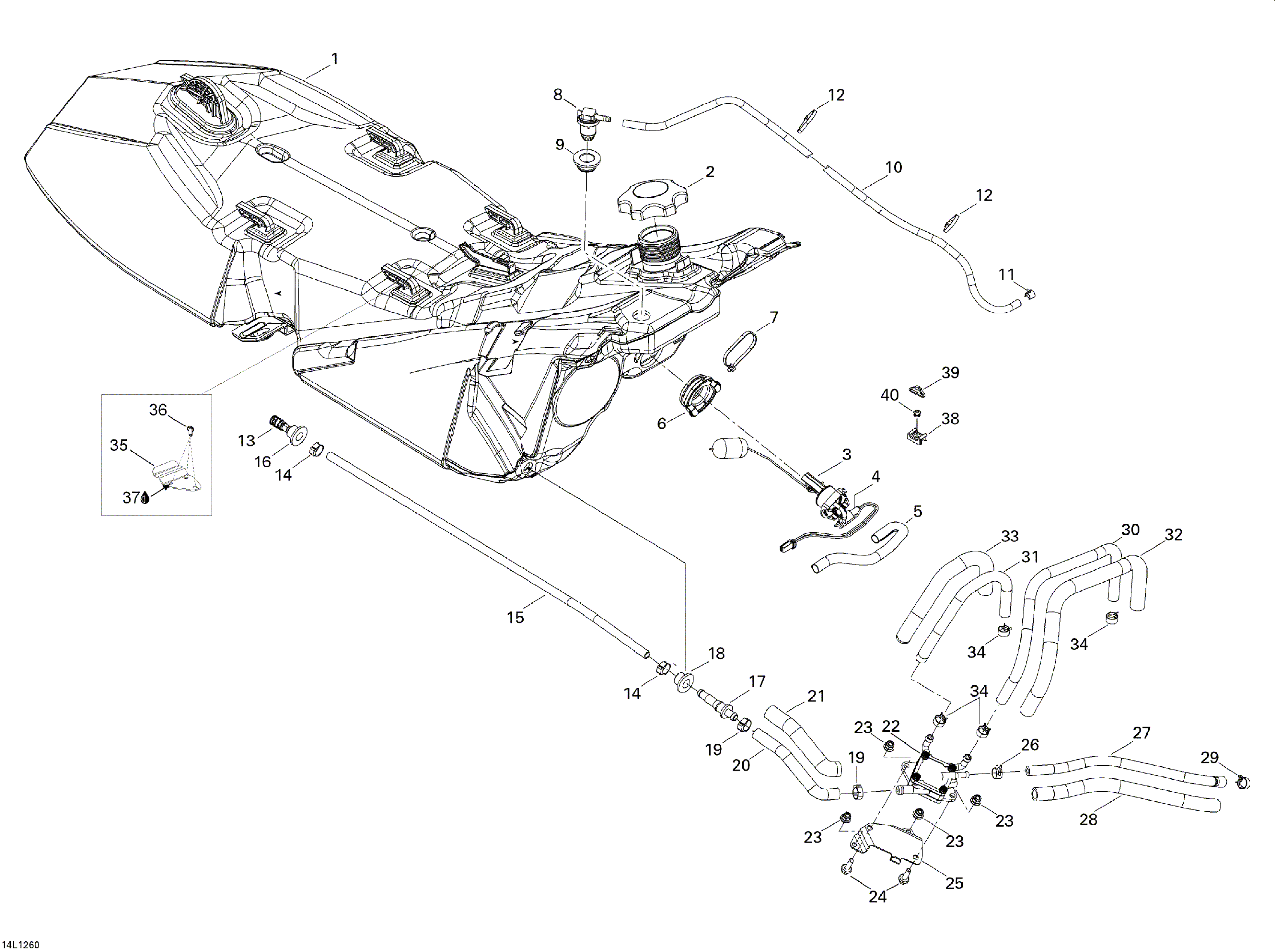

02- Fuel System для BRP Lynx Rave 550 - 2012
-
№АртикулНазвание
-
1513033609 Fuel TankFuel Tank
-
2513033025 Fuel Tank CapFuel Tank Cap
-
3513033642 Fuel Level Sensor Ass'yFuel Level Sensor Ass'y
-
4710001995 Fuse, 0.5 AmpereFuse, 0.5 Ampere
-
5415079900 Tubing 10 mmTubing 10 mm
-
6513033606 GrommetGrommet
-
7293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
8513033188 Check ValveCheck Valve
-
9513033596 GrommetGrommet
-
10415080200 Hose, PolyurethaneHose, Polyurethane
-
11414554800 Spring ClampSpring Clamp
-
12414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
13414872100 Fuel FilterFuel Filter
-
14513033010 Norma Spring ClampNorma Spring Clamp
-
15513033332 HoseHose
-
1628037 Grommet 16/10x11Grommet 16/10x11
-
17414872700 Male ConnectorMale Connector
-
18513033435 GrommetGrommet
-
19293650053 Crimp ClampCrimp Clamp
-
20513033499 Formed HoseFormed Hose
-
21415080000 Tubing 16 mmTubing 16 mm
-
22403901813 Fuel PumpFuel Pump
-
23233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
24207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
25513033543 Pump BracketPump Bracket
-
26414415200 Universal Spring ClampUniversal Spring Clamp
-
27513033553 Formed HoseFormed Hose
-
28415080000 Tubing 16 mmTubing 16 mm
-
29513033029 Universal Spring ClampUniversal Spring Clamp
-
30415129492 HoseHose
-
31415129492 HoseHose
-
32415080000 Tubing 16 mmTubing 16 mm
-
33415080000 Tubing 16 mmTubing 16 mm
-
34513033029 Universal Spring ClampUniversal Spring Clamp
-
35510005129 Seat front fastening plateSeat front fastening plate
-
36205461046 Screw socketScrew socket
-
37293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
38515176795 ClipClip
-
39293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
40390402000 Pop Rivet 3/16''Pop Rivet 3/16''
