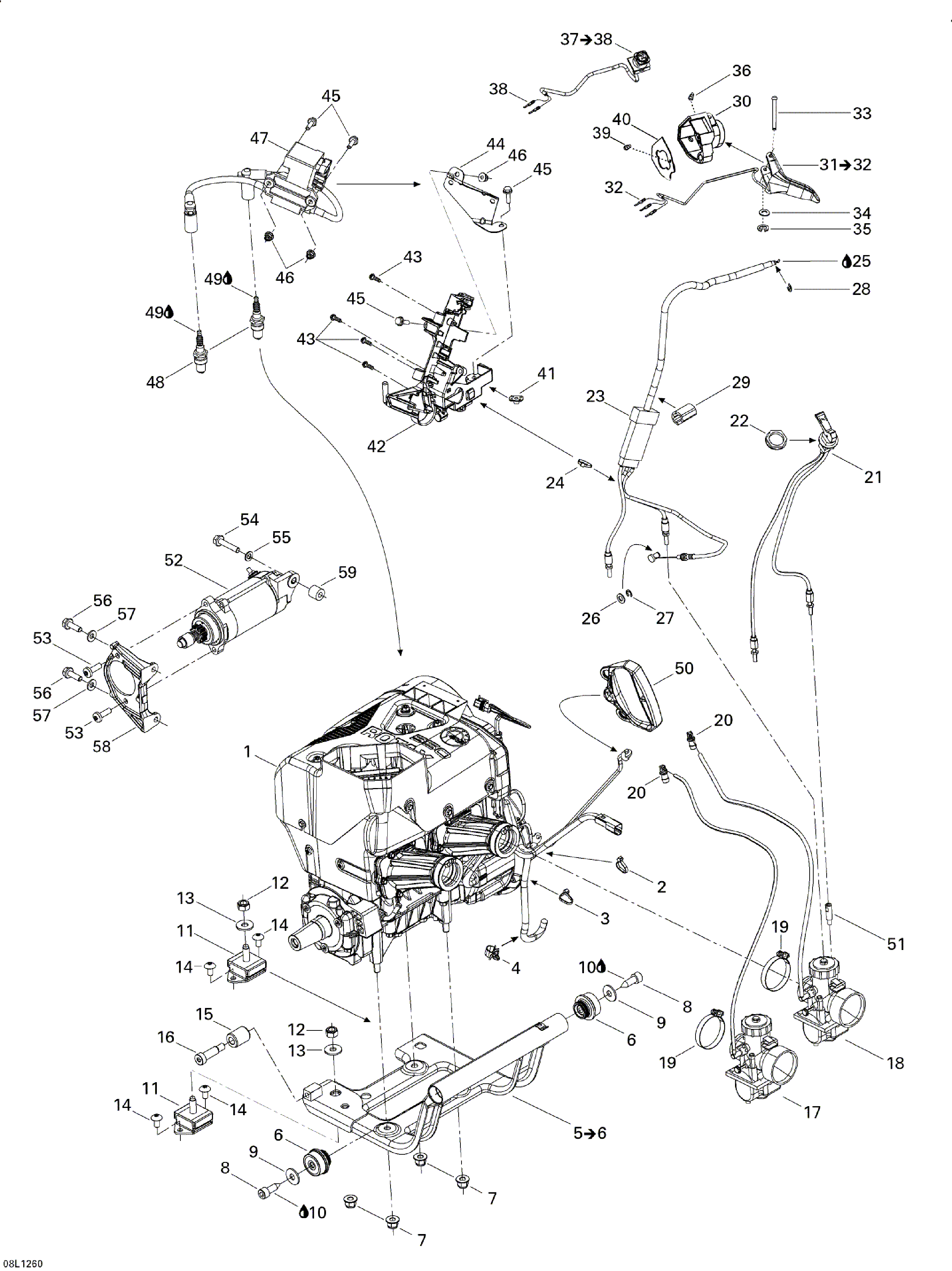

01- Engine And Engine Support для BRP Lynx Rave 550 - 2012

№

Артикул

Название
2

414115200 Tie-Rap 180 mm

Tie-Rap 180 mm

60 ₽
3

414115200 Tie-Rap 180 mm

Tie-Rap 180 mm

60 ₽
4

515176795 Clip

Clip

1 980 ₽
5

512060637 Engine Support Ass'y

Engine Support Ass'y

18 960 ₽
6

512059691 Rubber Mount

Rubber Mount

16 700 ₽
7

233201414 Hex. Flanged Elastic Nut M10

Hex. Flanged Elastic Nut M10

810 ₽
8

250000094 Screw M10 X 30

Screw M10 X 30

2 100 ₽
9

250200014 Flat Washer

Flat Washer

540 ₽
10

413703400 Loctite 222, 10 Cc

Loctite 222, 10 Cc

1 810 ₽
11

512060564 Rubber Mount

Rubber Mount

13 300 ₽
12

232500416 Elastic Stop Nut M10

Elastic Stop Nut M10

670 ₽
13

250200014 Flat Washer

Flat Washer

540 ₽
14

250000198 Torx Truss Screw M8 X 16

Torx Truss Screw M8 X 16

310 ₽
15

512060395 Stopper

Stopper

6 020 ₽
16

250000463 Socket Head Screw, Scotch Grip

Socket Head Screw, Scotch Grip

2 650 ₽
17

403138814 Carburetor VM30-219, PTO

Carburetor VM30-219, PTO

101 850 ₽
18

403138813 Carburetor VM30-218, MAG

Carburetor VM30-218, MAG

129 850 ₽
19

512059834 Gemi Clamp

Gemi Clamp

990 ₽
20

414814100 Male Connector

Male Connector

800 ₽
21

512060674 Choke Cable

Choke Cable

15 470 ₽
22

512060671 Plastic Nut

Plastic Nut

330 ₽
23

512060320 Throttle Cable

Throttle Cable

0 ₽
24

293750002 Tie-Rap 142 mm

Tie-Rap 142 mm

380 ₽
25

293550004 Dielectric Grease, 150 g

Dielectric Grease, 150 g

5 900 ₽
26

234081100 Flat Washer 8 mm, Nylon

Flat Washer 8 mm, Nylon

460 ₽
27

414753500 Circlip

Circlip

260 ₽
28

414274500 Circlip

Circlip

320 ₽
29

512060313 Protector

Protector

800 ₽
30

512060603 Throttle Housing

Throttle Housing

3 500 ₽
31

512060307 Handle Ass'y

Handle Ass'y

8 000 ₽
32

515175232 Male Terminal

Male Terminal

540 ₽
33

414438700 Lever Pin

Lever Pin

950 ₽
34

234051600 Flat Washer M5, Stainless

Flat Washer M5, Stainless

280 ₽
35

293370050 Circlip

Circlip

150 ₽
36

414440800 Socket Set Screw M8 X 10

Socket Set Screw M8 X 10

1 330 ₽
37

515177061 Kill Switch

Kill Switch

0 ₽
38

515175232 Male Terminal

Male Terminal

540 ₽
39

250000265 Torx Screw M2.9 X 12

Torx Screw M2.9 X 12

50 ₽
40

512060390 Plate

Plate

3 090 ₽
41

293100003 Nut M6

Nut M6

2 690 ₽
42

512060278 Coil Support

Coil Support

1 590 ₽
43

241151640 Hex. Flanged Screw K50 X 16

Hex. Flanged Screw K50 X 16

540 ₽
44

512060460 Support Coils

Support Coils

1 630 ₽
45

207662044 Hex. Flanged Screw M6 X 20

Hex. Flanged Screw M6 X 20

1 470 ₽
46

233261414 Hex. Flanged Elastic Nut M6

Hex. Flanged Elastic Nut M6

490 ₽
47

512060324 Calibrated Module

Calibrated Module

138 320 ₽
48

512059552 Spark Plug, NGK BR9ECS-5

Spark Plug, NGK BR9ECS-5

6 110 ₽
49

293550004 Dielectric Grease, 150 g

Dielectric Grease, 150 g

5 900 ₽
50

512060136 Starter Grip

Starter Grip

7 250 ₽
51

512060562 Extension

Extension

1 510 ₽
52

515176858 Starter Ass'y. Electric Start

Starter Ass'y. Electric Start

0 ₽
53

250000248 Torx Screw M8 X 25, Scotch Grip. Electric Start

Torx Screw M8 X 25, Scotch Grip. Electric Start

280 ₽
54

207584044 Hex. Flanged Screw M8 X 40, Scotch Grip. Electric Start

Hex. Flanged Screw M8 X 40, Scotch Grip. Electric Start

600 ₽
55

250200008 Flat Washer With Teflon 8 mm. Electric Start

Flat Washer With Teflon 8 mm. Electric Start

1 330 ₽
56

207582586 Hex. Flanged Screw M8 X 25, Scotch Grip. Electric Start

Hex. Flanged Screw M8 X 25, Scotch Grip. Electric Start

670 ₽
57

234281474 Conical Spring Washer M8. Electric Start

Conical Spring Washer M8. Electric Start

540 ₽
58

512060328 Support. Electric Start

Support. Electric Start

5 700 ₽
59

515176597 Spacer. Electric Start

Spacer. Electric Start

1 150 ₽
