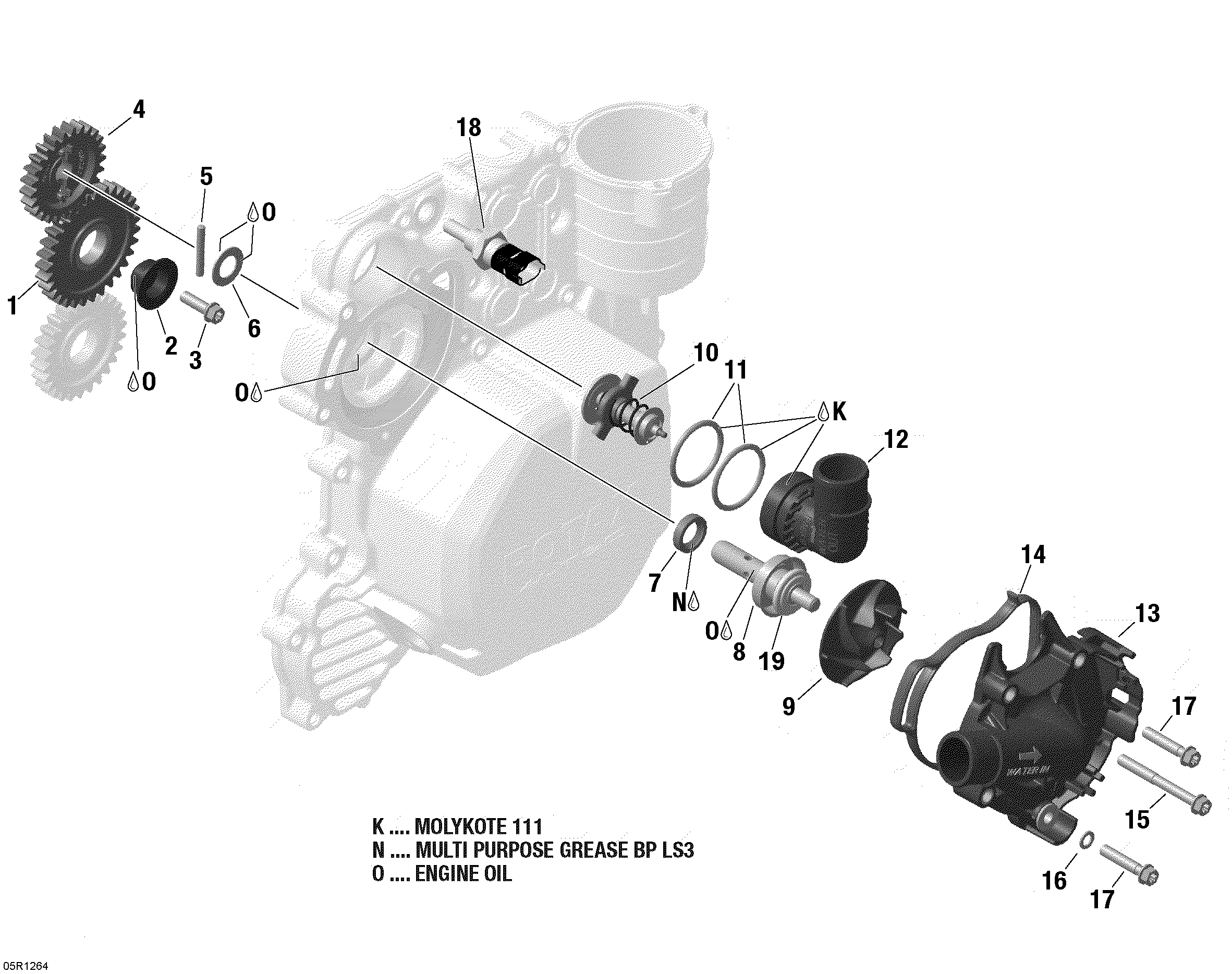

01- Engine Cooling для BRP Lynx 49 Ranger 600 ACE - 2012

  • №
    Артикул
    Название
  • 1
    420835059 INTERMEDIATE GEAR 31 T
    INTERMEDIATE GEAR 31 T
  • 2
    420947390 GRADUATED SPACER
    GRADUATED SPACER
  • 3
    420440207 HEX./TORX-FLANGE SCREW M6X20-SW8/T30. TIGHTENING TORQUE 11NM +/- 12%
    HEX./TORX-FLANGE SCREW M6X20-SW8/T30. TIGHTENING TORQUE 11NM +/- 12%
  • 4
    420835230 WATERPUMP GEAR 25T
    WATERPUMP GEAR 25T
  • 5
    420232430 NEEDLE PIN B 4X29,8 G5 DIN 5402
    NEEDLE PIN B 4X29,8 G5 DIN 5402
  • 6
    420827261 THRUST WASHER 12,5/21,5/1
    THRUST WASHER 12,5/21,5/1
  • 7
    420931802 OIL SEAL BA 12X20X5 FPM. INCLUDED IN GASKET KIT
    OIL SEAL BA 12X20X5 FPM. INCLUDED IN GASKET KIT
  • 8
    420820150 WATERPUMP SHAFT
    WATERPUMP SHAFT
  • 9
    420222880 IMPELLER. TIGHTENING TORQUE 9NM +/- 12%
    IMPELLER. TIGHTENING TORQUE 9NM +/- 12%
  • 10
    420822650 THERMOSTAT 75 DEGREES
    THERMOSTAT 75 DEGREES
  • 11
    420950893 O-RING DIN 3771-31X3-N, FPM GLT 70. INCLUDED IN GASKET KIT
    O-RING DIN 3771-31X3-N, FPM GLT 70. INCLUDED IN GASKET KIT
  • 12
    420922150 THERMOSTAT COVER
    THERMOSTAT COVER
  • 13-14
    420922290 WATER PUMP HOUSING ASSY.
    WATER PUMP HOUSING ASSY.
  • 14
    420431680 GASKET. INCLUDED IN GASKET KIT
    GASKET. INCLUDED IN GASKET KIT
  • 15
    420440702 HEX./TORX-FLANGE SCREW M6X55-SW8/T30. TIGHTENING TORQUE 9NM +/- 12%
    HEX./TORX-FLANGE SCREW M6X55-SW8/T30. TIGHTENING TORQUE 9NM +/- 12%
  • 16
    420230415 SEALING RING A 6X10 DIN 7603. INCLUDED IN GASKET KIT
    SEALING RING A 6X10 DIN 7603. INCLUDED IN GASKET KIT
  • 17
    420440647 HEX./TORX-FLANGE SCREW M6X30-SW8/T30. TIGHTENING TORQUE 9NM +/- 12%
    HEX./TORX-FLANGE SCREW M6X30-SW8/T30. TIGHTENING TORQUE 9NM +/- 12%
  • 18
    278001016 TEMPERATURE SENSOR. TIGHTENING TORQUE 16NM +/- 12%
    TEMPERATURE SENSOR. TIGHTENING TORQUE 16NM +/- 12%
  • 19
    420850946 SEAL
    SEAL
  • O
    293600112 ENGINE OIL
    ENGINE OIL
