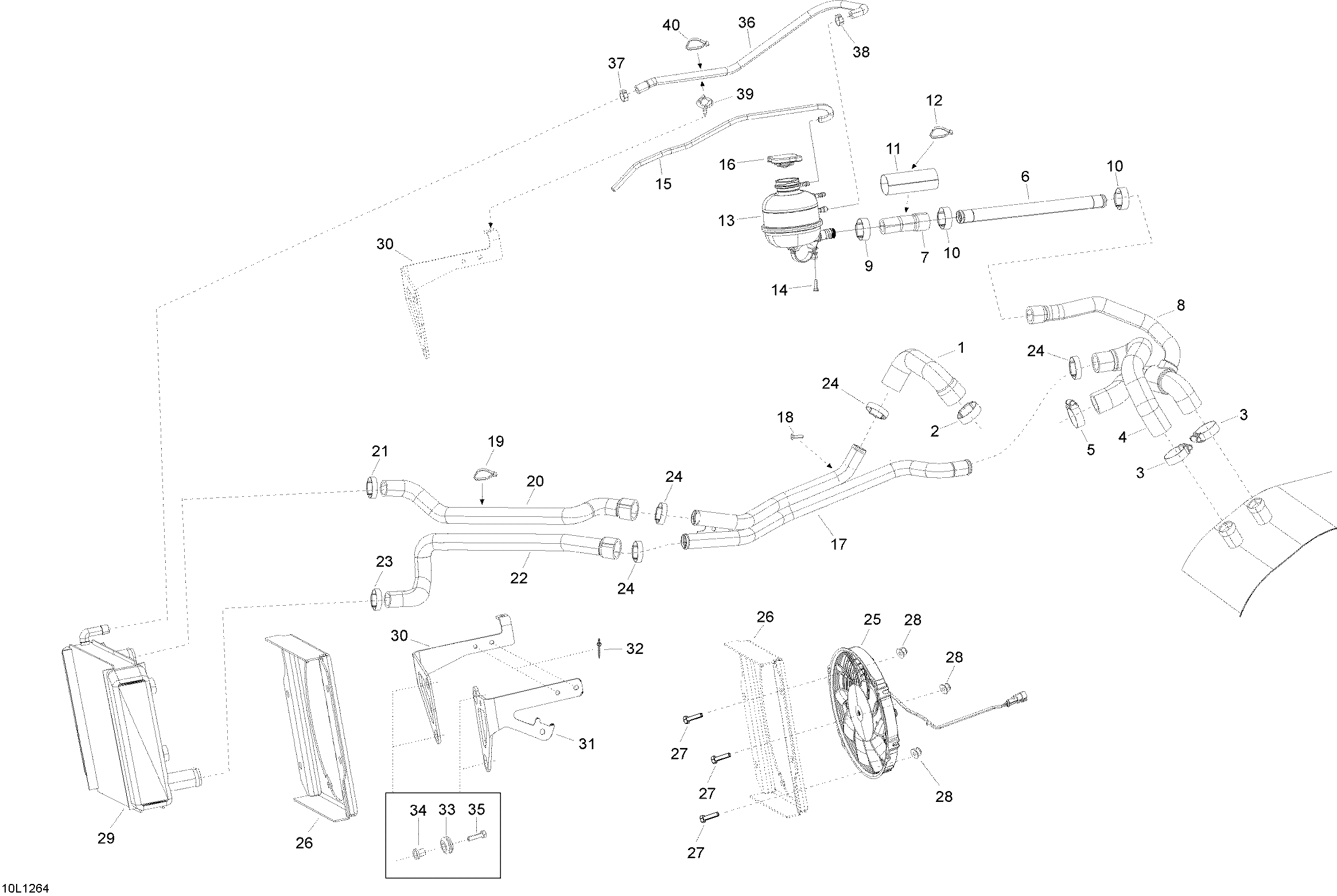

01- Cooling System для BRP Lynx 49 Ranger 600 ACE - 2012
-
№АртикулНазвание
-
1509000564 HOSE-OUTLET ENHOSE-OUTLET EN
-
2509000443 GEAR CLAMPGEAR CLAMP
-
3509000443 GEAR CLAMPGEAR CLAMP
-
4509000762 HOSE, FRONT AIR RAD->TUNNELRADHOSE, FRONT AIR RAD->TUNNELRAD
-
5509000443 GEAR CLAMPGEAR CLAMP
-
6509000644 PIPEPIPE
-
7509000698 HOSE-RADIATORHOSE-RADIATOR
-
8509000806 HOSE TUNNEL RAD.->ENGINE-FILLINGHOSE TUNNEL RAD.->ENGINE-FILLING
-
9509000442 CRIMP CLAMPCRIMP CLAMP
-
10293650099 CRIMP CLAMPCRIMP CLAMP
-
11509000730 PROTECTOR TUBEPROTECTOR TUBE
-
12414115200 TIE-RAP 180mmTIE-RAP 180mm
-
13509000368 TANK-COOLANTTANK-COOLANT
-
14241151640 SCREW-PT.HEX.FLANGE K50 X 16SCREW-PT.HEX.FLANGE K50 X 16
-
15276000048 HOSEHOSE
-
16509000180 PRESSURE CAPPRESSURE CAP
-
17509000800 WATER PIPEWATER PIPE
-
18207561634 SCREW-HEX.FLANGE M6 X 16SCREW-HEX.FLANGE M6 X 16
-
19414115200 TIE-RAP 180mmTIE-RAP 180mm
-
20509000636 HOSE-RADIATORHOSE-RADIATOR
-
21293650165 CRIMP CLAMPCRIMP CLAMP
-
22509000637 HOSE-RADIATORHOSE-RADIATOR
-
23293650165 CRIMP CLAMPCRIMP CLAMP
-
24509000735 CRIMP CLAMPCRIMP CLAMP
-
25709200230 FANFAN
-
26509000714 FAN SUPPORTFAN SUPPORT
-
27207662044 SCREW-HEX.FLANGE M6 X 20SCREW-HEX.FLANGE M6 X 20
-
28233261414 NUT-FLANGE ELASTIC M6NUT-FLANGE ELASTIC M6
-
29509000756 RADIATORRADIATOR
-
30509000754 SUPPORTSUPPORT
-
31509000755 SUPPORTSUPPORT
-
32390909100 RIVET AVEXRIVET AVEX
-
33293720053 GROMMETGROMMET
-
34293900100 BUSHINGBUSHING
-
35207562034 SCREW-HEX.FLANGE M6 X 20SCREW-HEX.FLANGE M6 X 20
-
36509000750 BREATHER HOSEBREATHER HOSE
-
37293650046 CRIMP CLAMPCRIMP CLAMP
-
38293650025 CRIMP CLAMPCRIMP CLAMP
-
39293730018 DART-MOUNTDART-MOUNT
-
40414115200 TIE-RAP 180mmTIE-RAP 180mm
