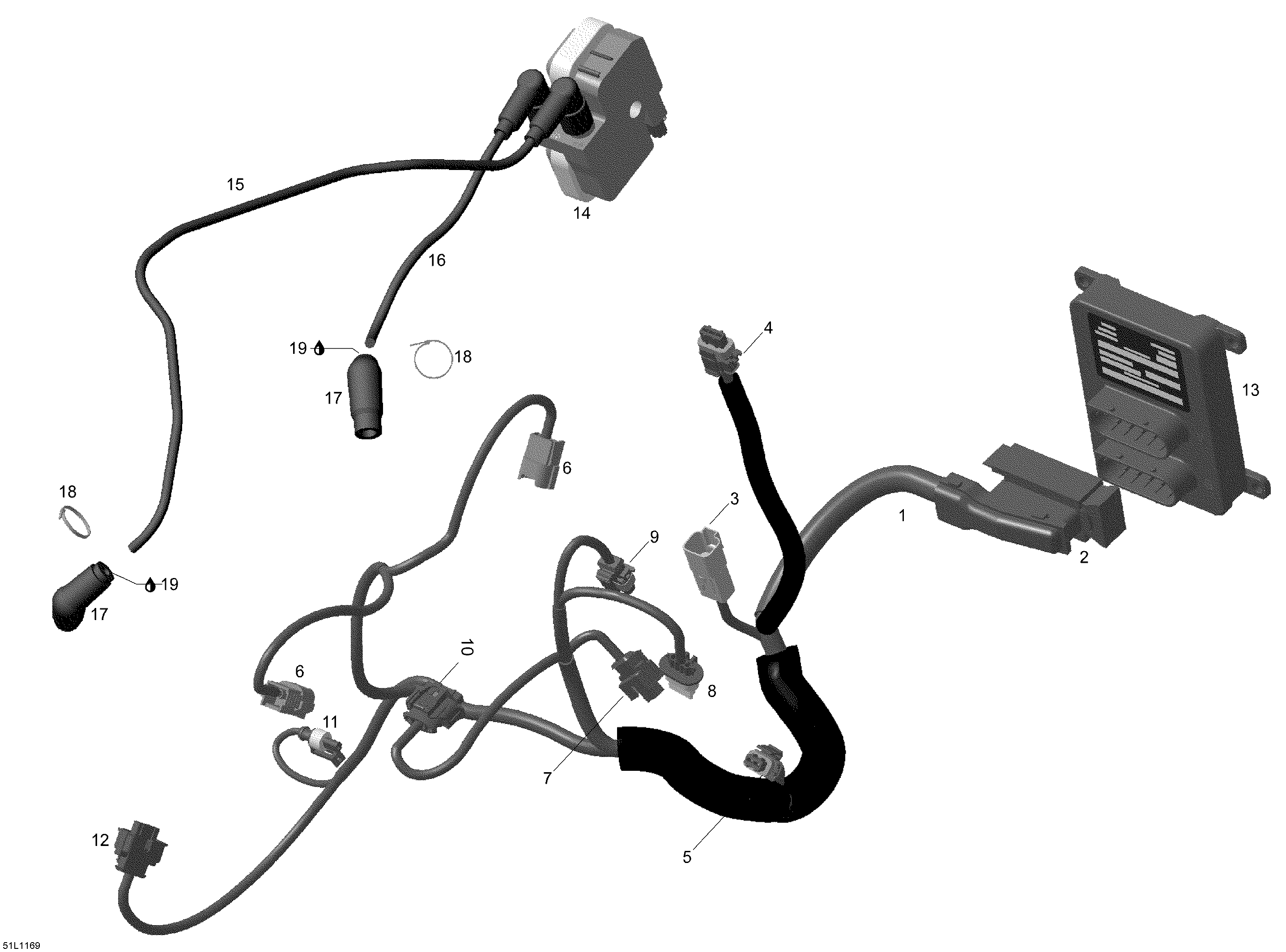

10- Engine harness and Electronic Module для BRP Lynx YETI Pro Army V-800 - 2011

  • №
    Артикул
    Название
  • 1
    420665243 Wiring Harness. Includes 1 - 12
    Wiring Harness. Includes 1 - 12
  • 2
    420664450 ECM Connector
    ECM Connector
  • 13
    420666207 Electronic Module
    Electronic Module
  • 14
    278001546 Ignition Coil
    Ignition Coil
  • 15
    420665330 Spark Plug Cable, 610 mm, PTO Side
    Spark Plug Cable, 610 mm, PTO Side
  • 16
    420664305 Cable Ass’Y 245 mm PTO
    Cable Ass’Y 245 mm PTO
  • 17
    420265240 Spark Plug Connector
    Spark Plug Connector
  • 18
    420866710 Tie Rap
    Tie Rap
  • 19
    293550004 Dielectric Grease, 150 g
    Dielectric Grease, 150 g
