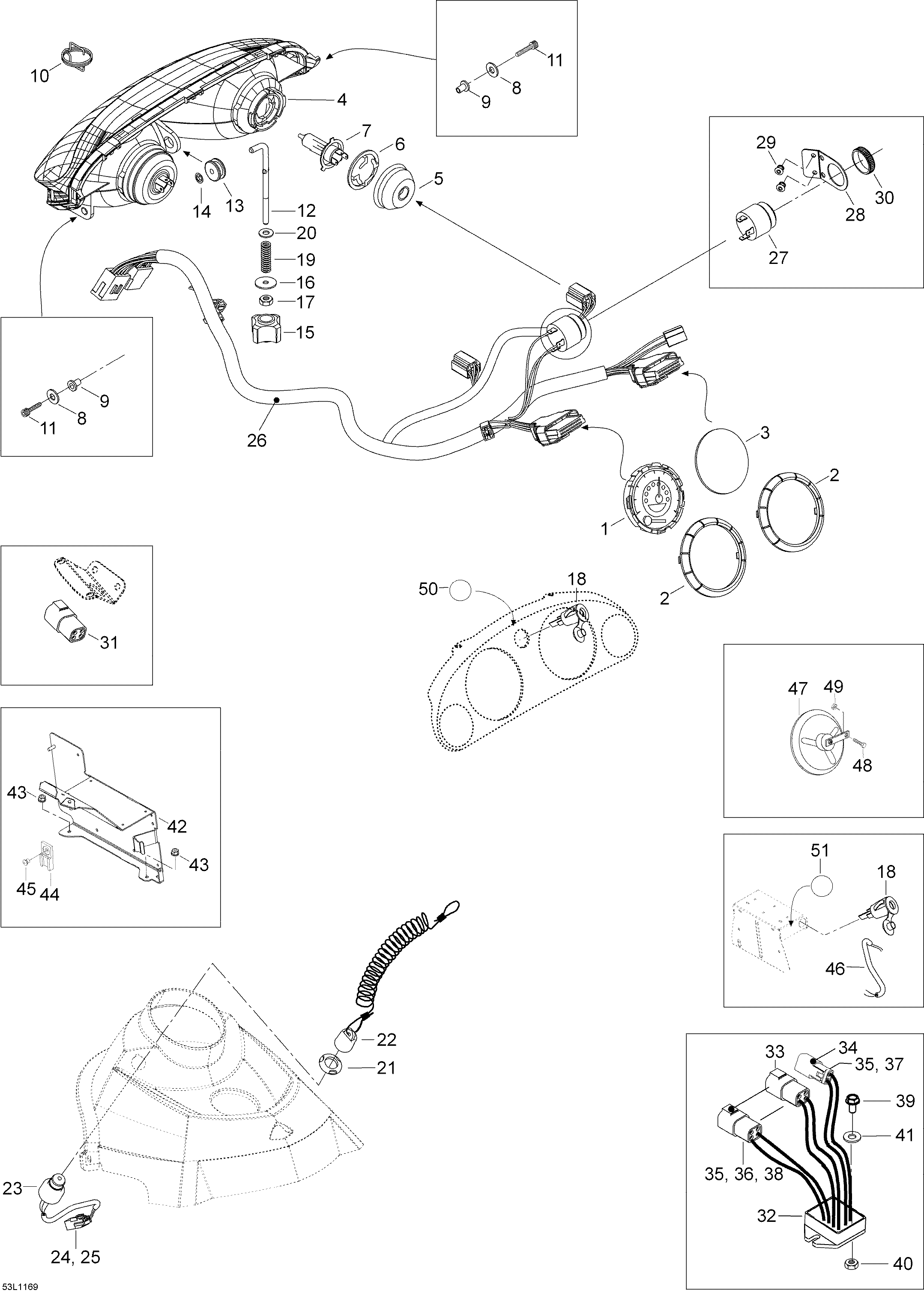

10- Electrical Acessories для BRP Lynx YETI Pro Army V-800 - 2011

  • №
    Артикул
    Название
  • 1
    515176477 Speedometer
    Speedometer
  • 2
    515176242 Gauge Ring
    Gauge Ring
  • 3
    515175901 Bottom Ring
    Bottom Ring
  • 4
    515176311 Halogen Headlamp Ass'y. Includes 4 to 7
    Halogen Headlamp Ass'y. Includes 4 to 7
  • 5
    515175911 Cover
    Cover
  • 6
    515176385 Bulb Holder
    Bulb Holder
  • 7
    515176274 Halogen Bulb, 60/55 W, 12 V
    Halogen Bulb, 60/55 W, 12 V
  • 8
    20008 Washer 5,3 mm
    Washer 5,3 mm
  • 9
    250100018 Nut M5
    Nut M5
  • 10
    5447238 Spring
    Spring
  • 11
    40235 Hex. screw M5 x 35
    Hex. screw M5 x 35
  • 12
    605450023 Adjuster Rod
    Adjuster Rod
  • 13
    415100800 Grommet
    Grommet
  • 14
    36084 Nut Push
    Nut Push
  • 15
    515175548 Handle
    Handle
  • 16
    20038 Washer
    Washer
  • 17
    33010 Elastic stop nut M6
    Elastic stop nut M6
  • 18
    605352915 Power outlet kit (Revo)
    Power outlet kit (Revo)
  • 19
    415100600 Spring
    Spring
  • 20
    20003 Washer A6,4
    Washer A6,4
  • 21
    278000508 Safety Switch Nut
    Safety Switch Nut
  • 22
    515177057 DESS Cap
    DESS Cap
  • 23
    515176815 Dess Switch. Includes 23 to 25
    Dess Switch. Includes 23 to 25
  • 24
    515175232 Male Terminal
    Male Terminal
  • 25
    515175494 Male Housing, 3 Circuits
    Male Housing, 3 Circuits
  • 26
    605355923 Harness Ass'y
    Harness Ass'y
  • 27
    515176035 Horn
    Horn
  • 28
    5447941 Bracket
    Bracket
  • 29
    36005 Rivet
    Rivet
  • 30
    414805101 Plastic Nut
    Plastic Nut
  • 31
    605355837 Capacitor
    Capacitor
  • 32
    515176243 Voltage Regulator. Includes 32 to 38
    Voltage Regulator. Includes 32 to 38
  • 33
    278001477 Female Housing, 4 Circuits
    Female Housing, 4 Circuits
  • 34
    278001674 Male Terminal Housing, 2 Circuits
    Male Terminal Housing, 2 Circuits
  • 35
    515175568 Male Terminal
    Male Terminal
  • 36
    278001478 Male Wedge, 4 Circuits
    Male Wedge, 4 Circuits
  • 37
    278001672 Male Lock, 2 Circuits
    Male Lock, 2 Circuits
  • 38
    293000052 Sealing Cap
    Sealing Cap
  • 39
    40030 Screw M6 x 20
    Screw M6 x 20
  • 40
    33010 Elastic stop nut M6
    Elastic stop nut M6
  • 41
    234062410 Flat Washer 6 mm
    Flat Washer 6 mm
  • 42
    605353300 Device Plate
    Device Plate
  • 43
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 44
    515175917 Clip
    Clip
  • 45
    36005 Rivet
    Rivet
  • 46
    605354674 Power Outlet Harness
    Power Outlet Harness
  • 47
    515176035 Horn
    Horn
  • 48
    40029 Hex. Screw M6 x 16
    Hex. Screw M6 x 16
  • 49
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 50
    605456007 Instruction label (power outlet front)
    Instruction label (power outlet front)
  • 51
    605456008 Instruction label (power outlet rear)
    Instruction label (power outlet rear)
