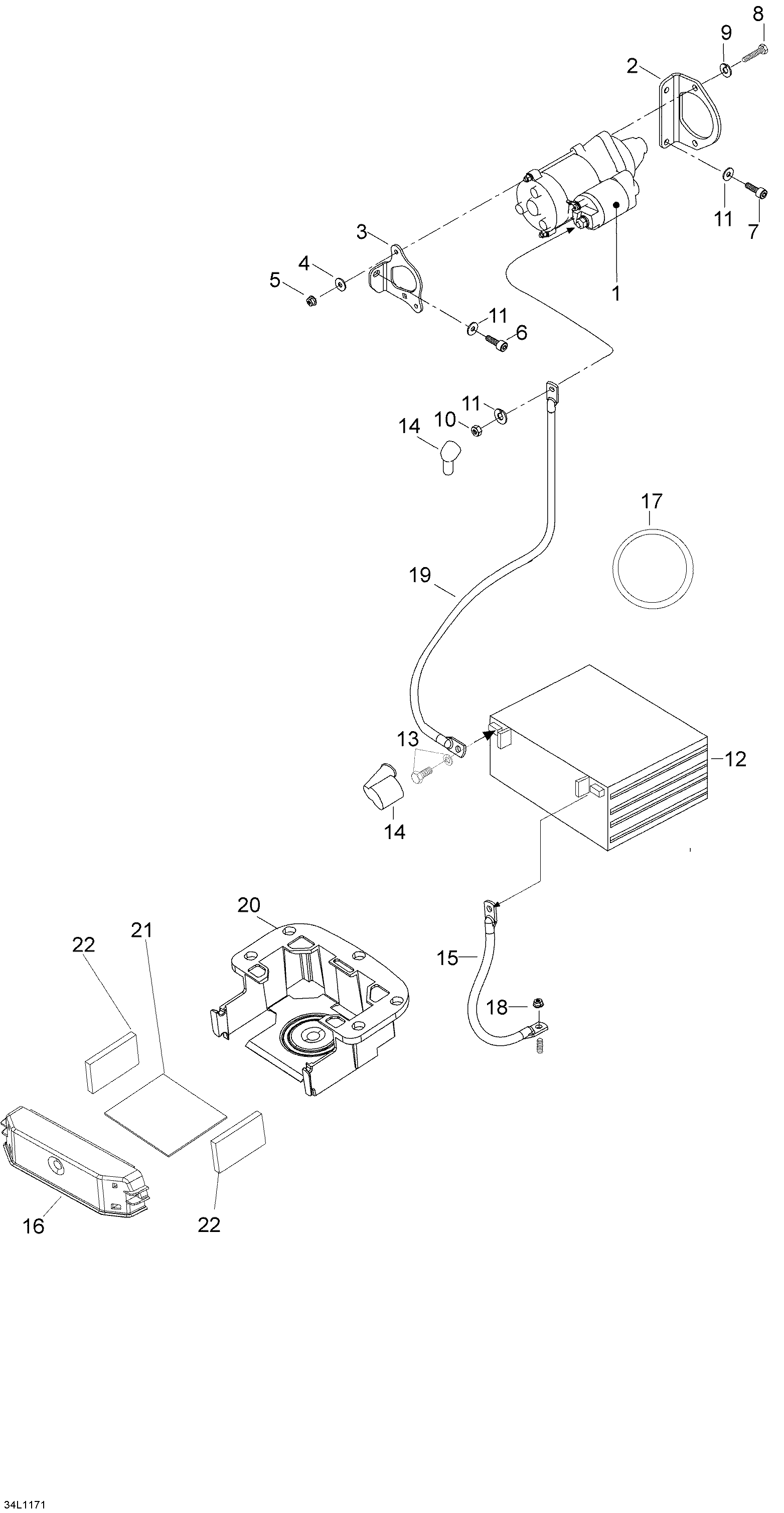

08- Electric Starter 552 для BRP Lynx YETI 550 - 2011
-
№АртикулНазвание
-
1410212400 Electric Starter Ass’YElectric Starter Ass’Y
-
2420951415 Starter Bracket, P.T.O.Starter Bracket, P.T.O.
-
3420951426 Starter Bracket, M.A.G.Starter Bracket, M.A.G.
-
420008 Washer 5,3 mmWasher 5,3 mm
-
533009 Elastic stop nut M5Elastic stop nut M5
-
640066 Socket head screw M8 x 16Socket head screw M8 x 16
-
740305 Socket head screw M8 x 20Socket head screw M8 x 20
-
840036 Screw M8 x 20Screw M8 x 20
-
920014 Lock washerLock washer
-
1033003 Nut M8Nut M8
-
1120014 WasherWasher
-
12410301203 Battery Ass'y, 18 Amperes. Includes 18 to 19Battery Ass'y, 18 Amperes. Includes 18 to 19
-
13295500849 Battery Fastener KitBattery Fastener Kit
-
14570151000 Protection CapProtection Cap
-
15515175483 Ground WireGround Wire
-
16605352572 CoverCover
-
17605676001 O'Ring 130 X6,0O'Ring 130 X6,0
-
18233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
20605255588 Battery SupportBattery Support
-
21605355846 FoamFoam
-
22605355847 FoamFoam
