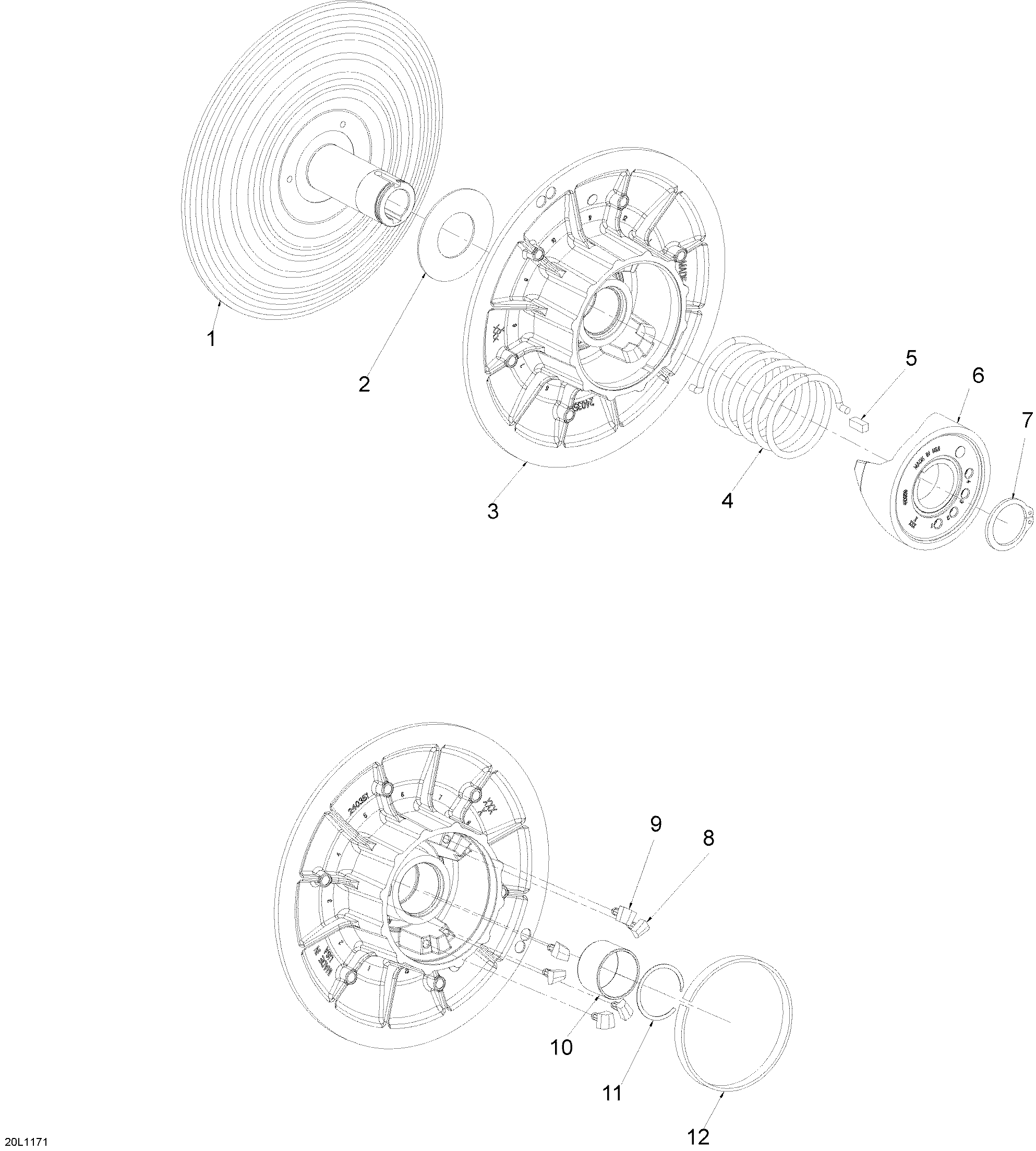

05- Driven Pulley для BRP Lynx YETI 550 - 2011
-
№АртикулНазвание
-
1619100024 Fixed flangeFixed flange
-
2504099600 Stopper WasherStopper Washer
-
3619100026 Sliding flange assySliding flange assy
-
4619100037 SpringSpring
-
5619100028 KeyKey
-
6619100035 Cam 40/30 degrCam 40/30 degr
-
7619100027 CirclipCirclip
-
8619100040 Foward slider shoeFoward slider shoe
-
9417126373 Rear Cam Slider Shoe, RedRear Cam Slider Shoe, Red
-
10619100032 BushingBushing
-
11619100033 CirclipCirclip
-
12619100034 BushingBushing
