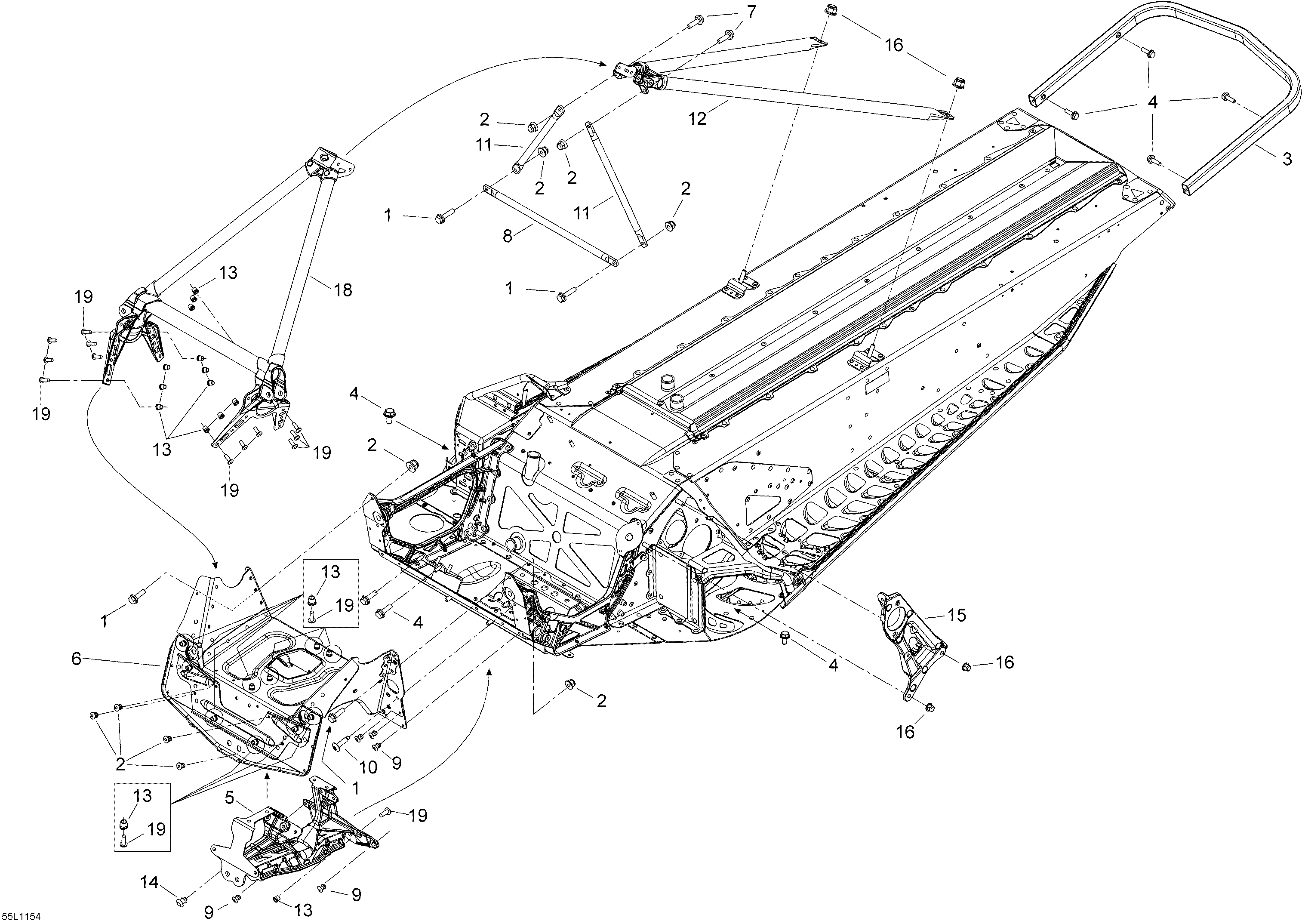

09- Frame and components для BRP Lynx Rave RE 600 E-TEC - 2011

  • №
    Артикул
    Название
  • 1
    207662544 Hex. Flanged Screw M6 X 25
    Hex. Flanged Screw M6 X 25
  • 2
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 3
    518324980 Rear Bumper
    Rear Bumper
  • 4
    207661644 Hex. Flanged Screw M6 X 16
    Hex. Flanged Screw M6 X 16
  • 5
    518325925 Front Suspension Support
    Front Suspension Support
  • 6
    518326210 Cross member (S-module)
    Cross member (S-module)
  • 7
    207662044 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 8
    518325115 Center Column Support
    Center Column Support
  • 9
    293150144 Stavex Rivet
    Stavex Rivet
  • 10
    210262080 Hex. Forming Screw M6 X 20
    Hex. Forming Screw M6 X 20
  • 11
    518325114 Upper Column Support
    Upper Column Support
  • 12
    518326685 Rear Member
    Rear Member
  • 14
    293150147 Hemlock Rivet
    Hemlock Rivet
  • 15
    518326192 Driven Pulley Support
    Driven Pulley Support
  • 16
    233281414 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8
  • 17
    205862044 Socket Head Screw M6 X 20, Scotch Grip
    Socket Head Screw M6 X 20, Scotch Grip
  • 18
    518325929 Front Member
    Front Member
