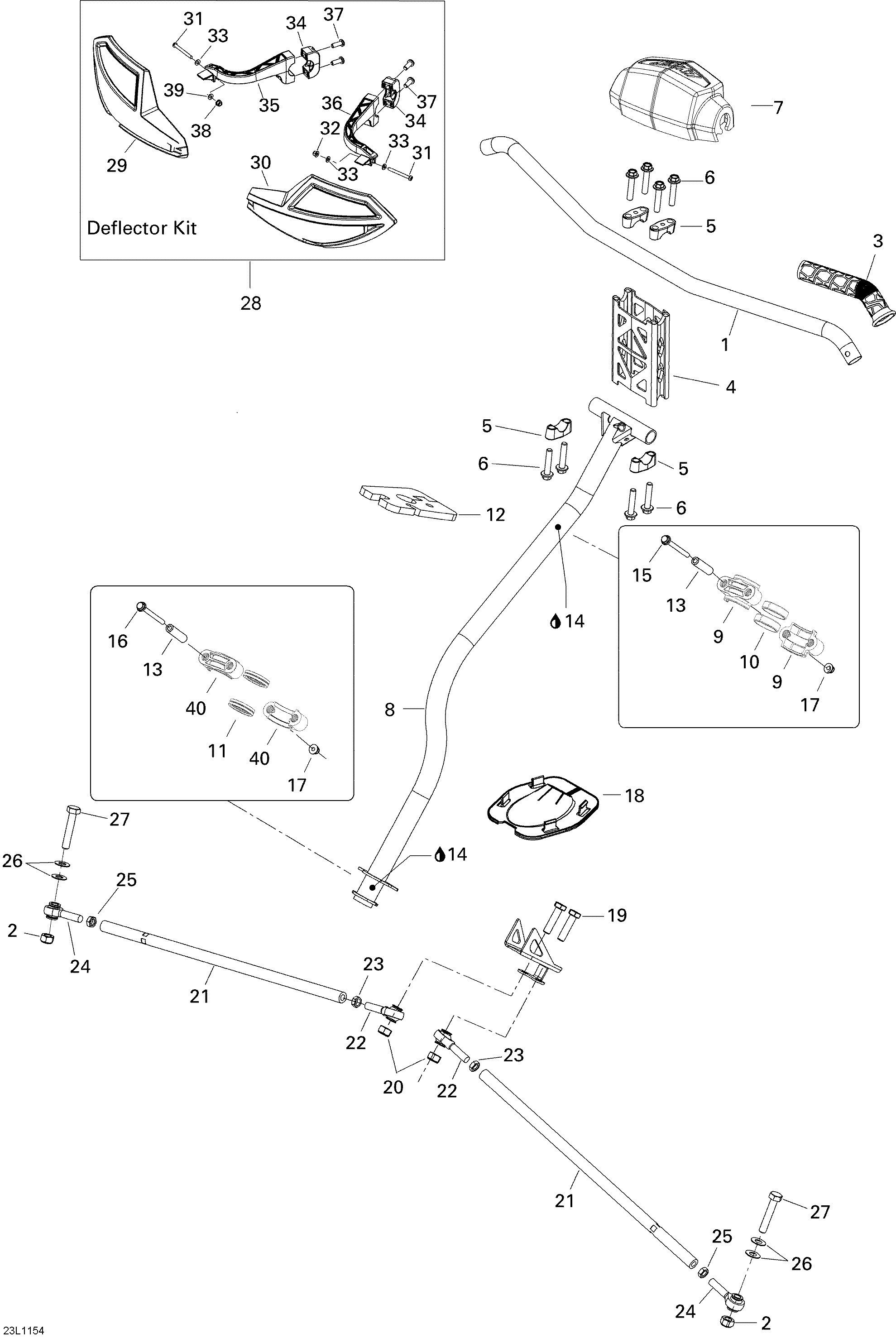

07- Steering System для BRP Lynx Rave RE 600 E-TEC - 2011

  • №
    Артикул
    Название
  • 1
    506152087 Hand Bar
    Hand Bar
  • 2
    232500416 Elastic Stop Nut M10
    Elastic Stop Nut M10
  • 3
    506152226 Grip
    Grip
  • 4
    860200268 Handlebar Extension Kit
    Handlebar Extension Kit
  • 5
    506152395 Steering Support
    Steering Support
  • 6
    250000285 Hex. Flanged Screw M8 x 40
    Hex. Flanged Screw M8 x 40
  • 7
    506152265 Steering Pad
    Steering Pad
  • 8
    506152469 Main Tube
    Main Tube
  • 9
    506152508 Upper Half-Housing
    Upper Half-Housing
  • 10
    506152509 Upper Anti-Vibration Gasket
    Upper Anti-Vibration Gasket
  • 11
    506152518 Lower Vibration Ring
    Lower Vibration Ring
  • 12
    506152521 Cushion
    Cushion
  • 13
    506152297 Housing Bushing
    Housing Bushing
  • 14
    293550033 Suspension Grease, 10 X 400 G
    Suspension Grease, 10 X 400 G
  • 15
    207667086 Hex. Flanged Screw M6 x 70
    Hex. Flanged Screw M6 x 70
  • 16
    207667044 Hex. Flange Screw M6 X 70
    Hex. Flange Screw M6 X 70
  • 17
    233261416 Elastic Flanged Nut M6
    Elastic Flanged Nut M6
  • 18
    506152163 Plate
    Plate
  • 19
    207004044 Hex. Screw M10 X 40
    Hex. Screw M10 X 40
  • 20
    232500416 Elastic Stop Nut M10
    Elastic Stop Nut M10
  • 21
    506152496 Tie-Rod
    Tie-Rod
  • 22
    506152081 LH Ball Joint
    LH Ball Joint
  • 23
    250100016 LH Hex. Jam Nut M10
    LH Hex. Jam Nut M10
  • 24
    506152019 RH Ball Joint
    RH Ball Joint
  • 25
    732610010 RH Hex. Jam Nut M10
    RH Hex. Jam Nut M10
  • 26
    506152194 Washer
    Washer
  • 27
    207005544 Hex. Screw M10 X 55
    Hex. Screw M10 X 55
  • 28
    517304606 Deflector pack white
    Deflector pack white
  • 31
    205444086 Socket Head Screw M4 X 40
    Socket Head Screw M4 X 40
  • 32
    232541484 Elastic Stop Nut M4
    Elastic Stop Nut M4
  • 33
    234041480 Flat Washer 4 mm
    Flat Washer 4 mm
  • 34
    517303264 U-Clamp
    U-Clamp
  • 35
    715000513 Support kit for deflectors
    Support kit for deflectors
  • 36
    715000513 Support kit for deflectors
    Support kit for deflectors
  • 37
    250000172 Socket Head Screw M6 X 16
    Socket Head Screw M6 X 16
  • 38
    232541484 Elastic Stop Nut M4
    Elastic Stop Nut M4
  • 39
    234041480 Flat Washer 4 mm
    Flat Washer 4 mm
  • 40
    506152217 Lower Half-Housing
    Lower Half-Housing
