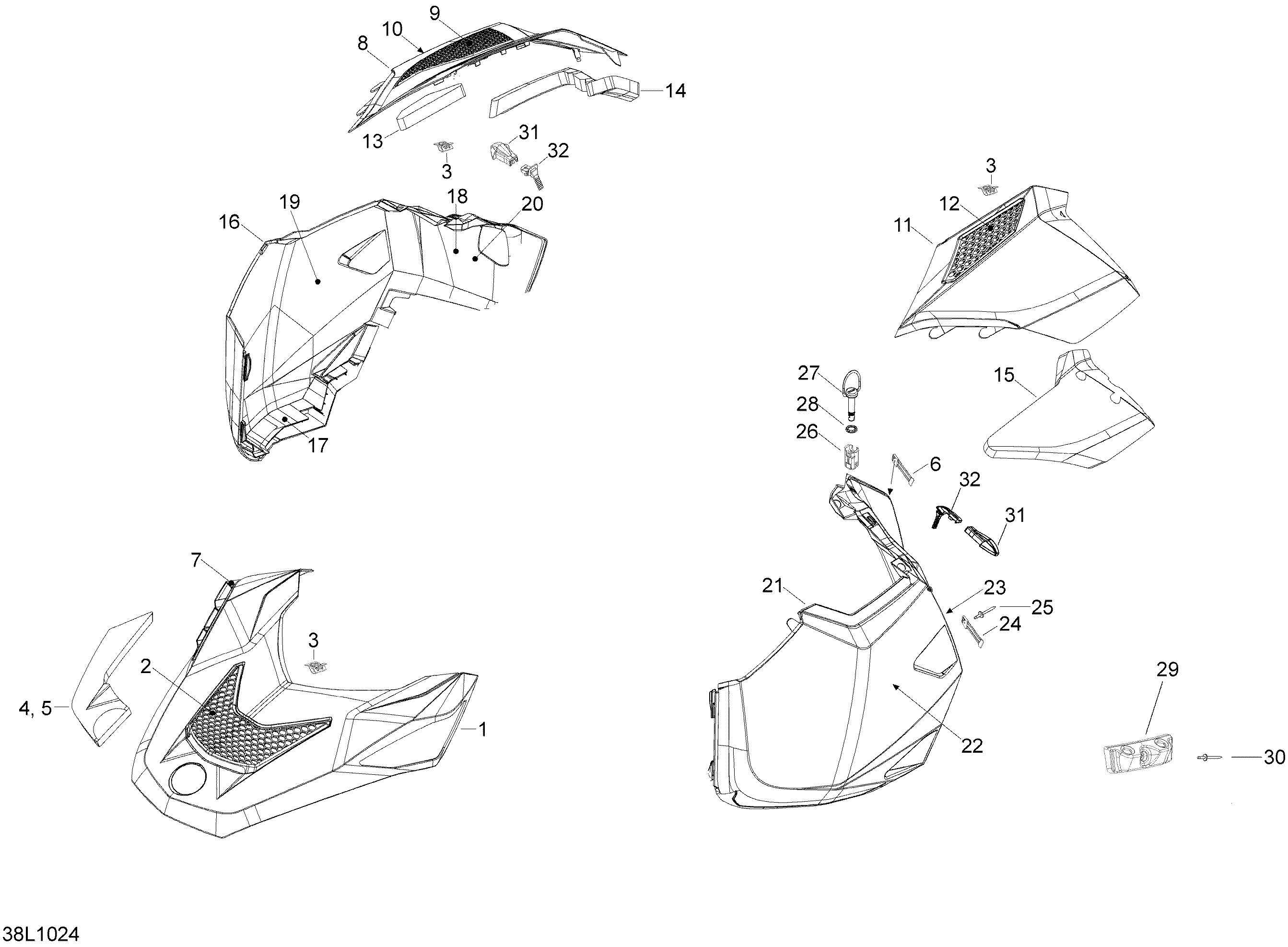

09- Hood для BRP Lynx Adventure GT 600 SDI - 2010
-
№АртикулНазвание
-
1517303889 HoodHood
-
2517303892 Hood grillHood grill
-
3517302785 ClipClip
-
4517304330 Isolation L.H.Isolation L.H.
-
5517304214 Isolation R.H.Isolation R.H.
-
6517304289 LatchLatch
-
7517304155 Scoop grillScoop grill
-
8517304682 R.H. Upper Side panelR.H. Upper Side panel
-
9517304015 R.H. Acces panel grillR.H. Acces panel grill
-
10517304016 R.H. Lower sidepanel grillR.H. Lower sidepanel grill
-
11517304691 L.H. Upper Side panelL.H. Upper Side panel
-
12517303893 L.H. Acces panel grillL.H. Acces panel grill
-
13517304311 IsolationIsolation
-
14517304312 IsolationIsolation
-
15517304313 IsolationIsolation
-
16517304509 R.H. Side panelR.H. Side panel
-
17517304215 Heat protectorHeat protector
-
18517304216 Heat protectorHeat protector
-
19517304512 R.H. IsolationR.H. Isolation
-
20517304310 R.H. Isolation rearR.H. Isolation rear
-
21517304511 L.H. SidepanelL.H. Sidepanel
-
22517303891 L.H. IsolationL.H. Isolation
-
23517304309 L.H. Isolation rearL.H. Isolation rear
-
24517304572 LatchLatch
-
25293150108 RivetRivet
-
26517304297 Quarter-turn fastenerQuarter-turn fastener
-
27517304296 Quarter-turn handleQuarter-turn handle
-
28517304538 Locking plateLocking plate
-
29517304497 Side panel supportSide panel support
-
3036005 RivetRivet
-
31860200239 End pieceEnd piece
-
32517304573 Latch-panelLatch-panel
