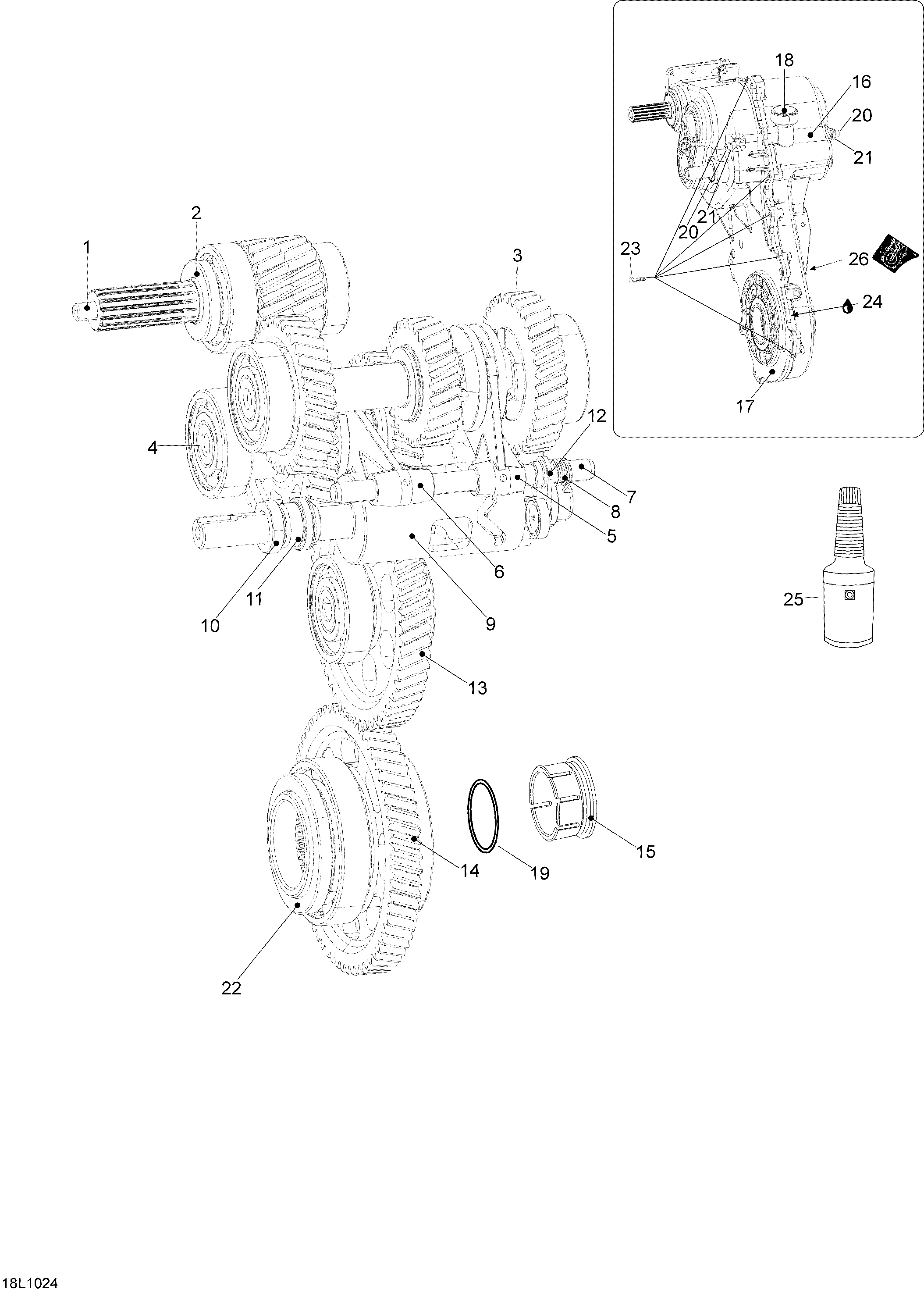

05- Transmission для BRP Lynx Adventure GT 600 SDI - 2010

№

Артикул

Название
-

504153005 Transmission ass'y. Includes 1 to 71. Innehaller delar 1-71

Transmission ass'y. Includes 1 to 71. Innehaller delar 1-71
1

619230009 Counter shaft ass'y

Counter shaft ass'y
2

619230010 Oil seal

Oil seal
3

619230012 Main shaft ass'y

Main shaft ass'y
4

619230013 Reverse shaft ass'y

Reverse shaft ass'y
5

619230014 Fork, forewards (1-2)

Fork, forewards (1-2)
6

619230015 Fork, reverse

Fork, reverse
7

619230016 Shaft

Shaft
8

619230017 Spring

Spring
9

619230018 Shifting drum

Shifting drum
10

619230019 Oil seal

Oil seal
11

619230020 Bushing. Includes 11-12. Innehaller delar 11-12

Bushing. Includes 11-12. Innehaller delar 11-12
12

619230021 Locking lever

Locking lever
13

619230022 Middle gear ass'y

Middle gear ass'y
14

619230023 Lower gear ass'y

Lower gear ass'y
15

504152821 Magnetic plug

Magnetic plug
16

619230025 Cover, outside

Cover, outside
17

619230026 Cover, inside

Cover, inside
18

619230027 Cap, oil

Cap, oil
19

619230028 O-ring

O-ring
20

619230029 Screw

Screw
21

619230030 Washer

Washer
22

619230031 Oil seal

Oil seal
23

619230033 Screw M6 x 20

Screw M6 x 20
24

420297906 Seal

Seal
25

619590182 OIL-GEAR SYNTHETIC (12 x 1l)

OIL-GEAR SYNTHETIC (12 x 1l)
26

516003925 Checking Label Oil

Checking Label Oil
