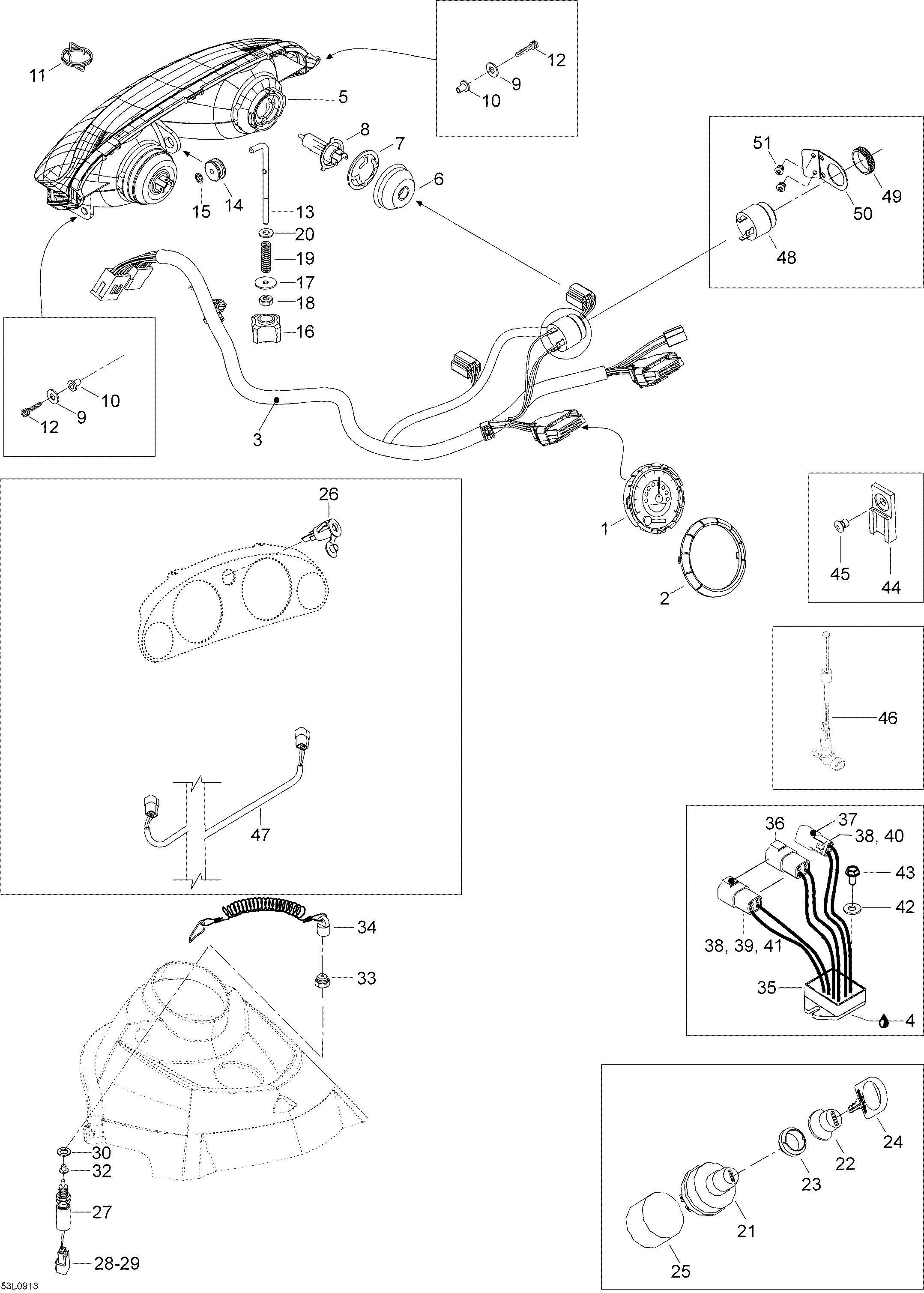

06- Electrical Accessories для BRP Lynx YETI SUV 550 - 2009
-
№АртикулНазвание
-
1515176476 SpeedometerSpeedometer
-
2515176242 RingRing
-
3605355301 Main harness ass'yMain harness ass'y
-
4413707500 Lithium-greaseLithium-grease
-
5515176311 Halogen headlamp. Includes 12 to 15Halogen headlamp. Includes 12 to 15
-
6515175911 CoverCover
-
7515176385 Bulp holderBulp holder
-
8515176274 Halogen bulpHalogen bulp
-
920008 Washer A5,3Washer A5,3
-
10250100018 Well-nutWell-nut
-
115447238 SpringSpring
-
1240235 Hex. screw M5 x 35Hex. screw M5 x 35
-
13605450023 Adjusting rodAdjusting rod
-
14415100800 GrommetGrommet
-
1536084 Nut PushNut Push
-
16515175548 KnobKnob
-
1720038 Washer 6mmWasher 6mm
-
1833010 Elastic stop nut M6Elastic stop nut M6
-
19415100600 SpringSpring
-
2020003 Washer A6,4Washer A6,4
-
21515176548 Ignition switchIgnition switch
-
22570013700 BootBoot
-
23410112100 NutNut
-
24414991700 Blank keyBlank key
-
25572150700 Ignition blockIgnition block
-
26710001248 Flush mounted socketFlush mounted socket
-
27515176525 SwitchSwitch
-
28605642628 Male terminalMale terminal
-
2942608 Male terminal housingMale terminal housing
-
3025004 WasherWasher
-
31570151100 Cap plungerCap plunger
-
32605454413 SleeveSleeve
-
33515145900 NutNut
-
34515176463 Cap ass'yCap ass'y
-
35515176189 Voltage regulator. Include 35 to 41Voltage regulator. Include 35 to 41
-
36278001477 Male terminal housingMale terminal housing
-
37278001674 Male terminal housingMale terminal housing
-
38515175568 Female terminalFemale terminal
-
39278001478 Male lockMale lock
-
40278001672 Male lockMale lock
-
41293000052 Sealing capSealing cap
-
4220009 Washer A6,4Washer A6,4
-
4340030 Hex. screw M6 x 20Hex. screw M6 x 20
-
44515175917 ClipClip
-
4536005 RivetRivet
-
46605452095 Oil sensor leverOil sensor lever
-
47605354843 Harness ass'yHarness ass'y
-
48414792102 HornHorn
-
49414805101 RingRing
-
505447941 BracketBracket
-
5136005 RivetRivet
