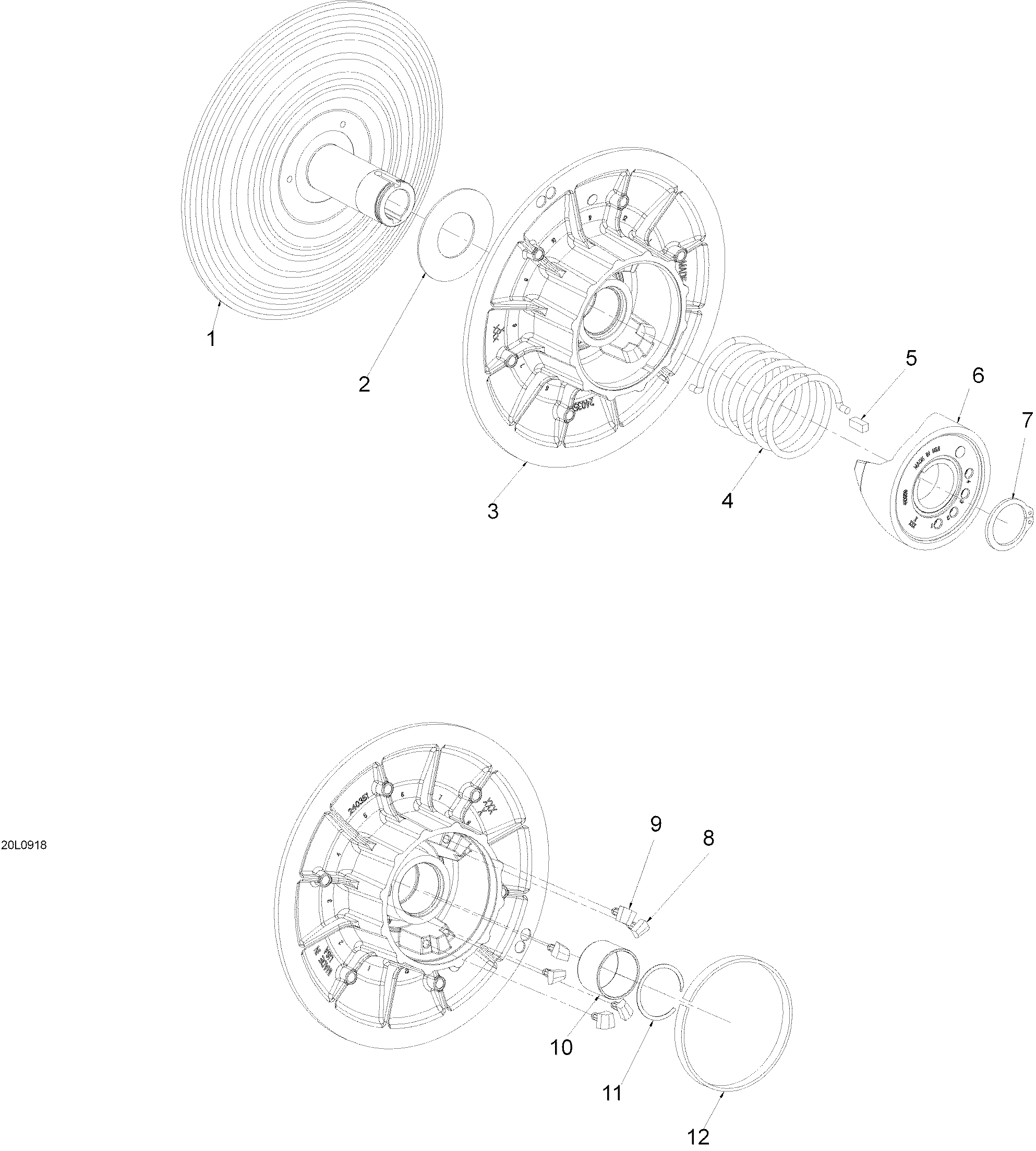

05- Driven Pulley для BRP Lynx YETI SUV 550 - 2009
-
№АртикулНазвание
-
1619100024 Fixed flangeFixed flange
-
2504099600 ShimShim
-
3619100026 Sliding flange ass'ySliding flange ass'y
-
4619100037 Release springRelease spring
-
5619100028 KeyKey
-
6619100035 Cam 40/30 degr.Cam 40/30 degr.
-
7619100027 CirclipCirclip
-
8619100040 Shoe cam sliderShoe cam slider
-
9619100039 Shoe cam sliderShoe cam slider
-
10619100032 BushingBushing
-
11619100033 CirclipCirclip
-
12619100034 BushingBushing
