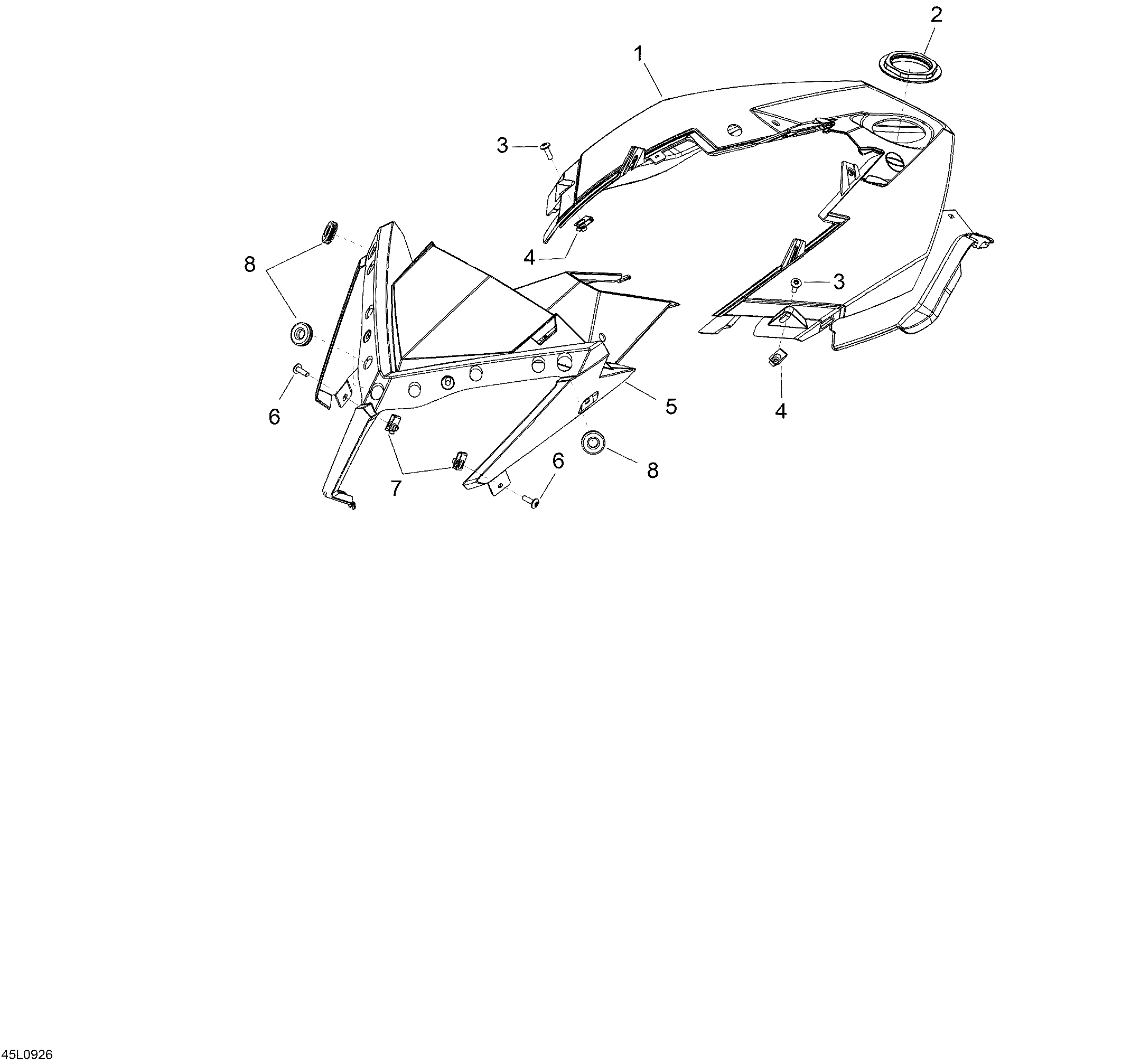

09- Windshield and Console для BRP Lynx Rave RS 600 - 2009
-
№АртикулНазвание
-
1517304129 Hood/consoleHood/console
-
2517302575 Console NutConsole Nut
-
3250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
4250000048 Pannel Nut M6 X 1.0Pannel Nut M6 X 1.0
-
5517304283 Indicator supportIndicator support
-
6250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
7250000048 Pannel Nut M6 X 1.0Pannel Nut M6 X 1.0
-
8517303756 GrommetGrommet
