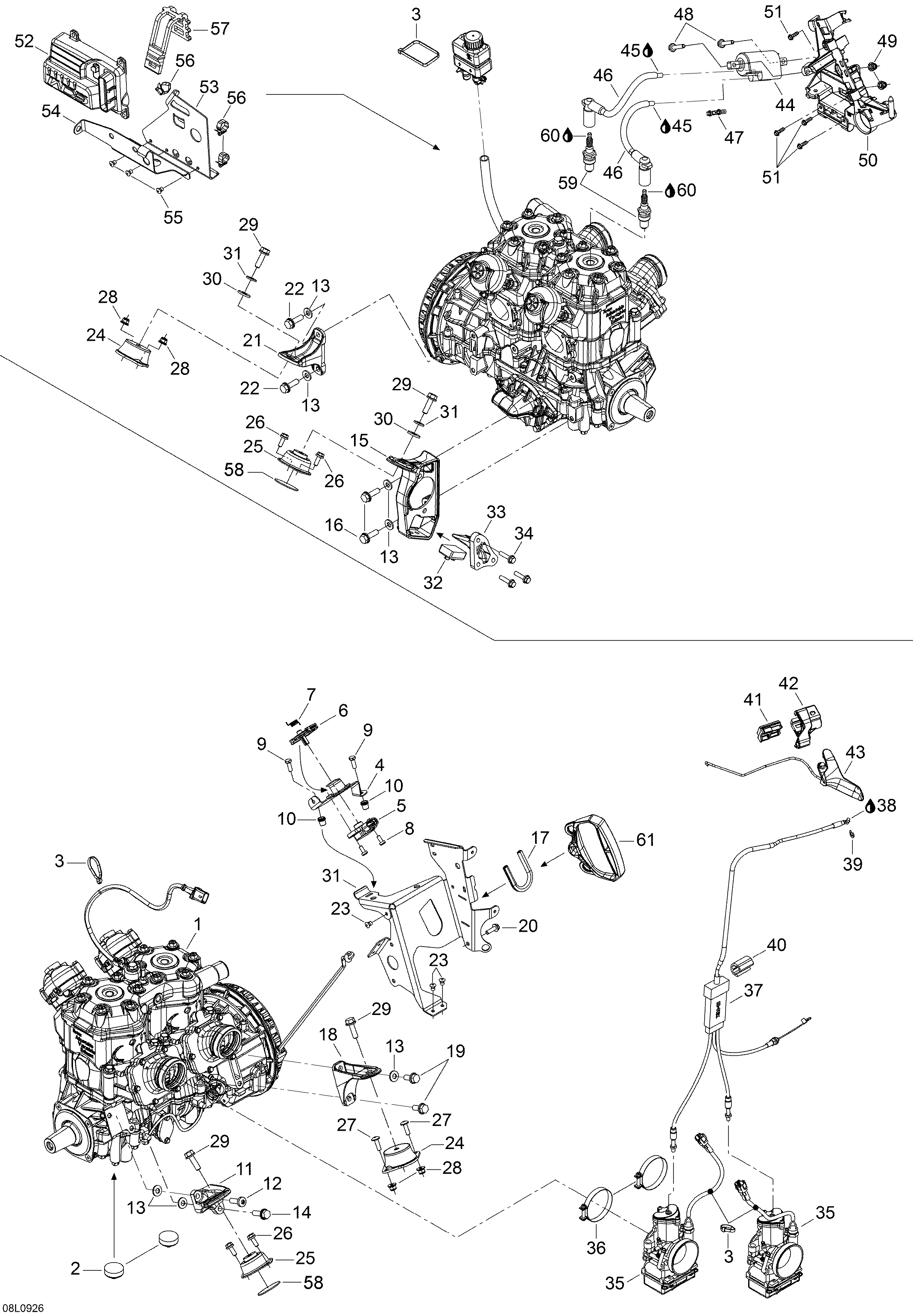

01- Engine And Engine Support для BRP Lynx Rave RS 600 - 2009

  • №
    Артикул
    Название
  • 2
    512059738 Stopper
    Stopper
  • 3
    414115200 Tie-Rap 180 mm
    Tie-Rap 180 mm
  • 4
    512060336 TPS Support
    TPS Support
  • 5
    404162079 Sensor Ass'y
    Sensor Ass'y
  • 6
    512060335 Cap Cam
    Cap Cam
  • 7
    512060351 Cam Spring
    Cam Spring
  • 8
    208651241 Phillips Screw M5 X 12
    Phillips Screw M5 X 12
  • 9
    207361644 Hex. Screw M6 X 16, Scotch Grip
    Hex. Screw M6 X 16, Scotch Grip
  • 10
    293450275 Insert
    Insert
  • 11
    512060173 Rear PTO Support
    Rear PTO Support
  • 12
    250000248 Torx Screw M8 X 25, Scotch Grip
    Torx Screw M8 X 25, Scotch Grip
  • 13
    234281474 Conical Spring Washer M8
    Conical Spring Washer M8
  • 14
    512060406 Hex. Flanged Screw M8 X 25, Scotch Grip
    Hex. Flanged Screw M8 X 25, Scotch Grip
  • 15
    512060203 Front PTO Support
    Front PTO Support
  • 16
    207582586 Hex. Flanged Screw M8 X 25, Scotch Grip
    Hex. Flanged Screw M8 X 25, Scotch Grip
  • 17
    414506600 Trim
    Trim
  • 18
    512060495 Engine Support
    Engine Support
  • 19
    207582044 Hex. Flanged Screw M8 X 20, Scotch Grip
    Hex. Flanged Screw M8 X 20, Scotch Grip
  • 20
    210262080 Hex. Forming Screw M6 X 20
    Hex. Forming Screw M6 X 20
  • 21
    512060108 Front MAG Support
    Front MAG Support
  • 22
    207582586 Hex. Flanged Screw M8 X 25, Scotch Grip
    Hex. Flanged Screw M8 X 25, Scotch Grip
  • 23
    390909200 Avex Rivet
    Avex Rivet
  • 24
    512060360 Rubber Mount
    Rubber Mount
  • 25
    512060385 Rubber Mount
    Rubber Mount
  • 26
    207561644 Hex. Flanged Screw M6 X 16, Scotch Grip
    Hex. Flanged Screw M6 X 16, Scotch Grip
  • 27
    250000335 Socket Head Screw M6 X 20
    Socket Head Screw M6 X 20
  • 28
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 29
    207583086 Hex. Flanged Screw M8 X 25, Scotch Grip
    Hex. Flanged Screw M8 X 25, Scotch Grip
  • 30
    503183200 Washer, Yellow
    Washer, Yellow
  • 31
    512060491 Grip Support
    Grip Support
  • 32
    512060488 Stopper
    Stopper
  • 33
    512060489 Stopper Support
    Stopper Support
  • 34
    207562544 Hex. Flanged Screw M6 X 25, Scotch Grip
    Hex. Flanged Screw M6 X 25, Scotch Grip
  • 35
    403138808 Carburator TMX38-66
    Carburator TMX38-66
  • 36
    512059835 Gemi Clamp
    Gemi Clamp
  • 37
    512060487 Throttle Cable
    Throttle Cable
  • 38
    293550004 Dielectric Grease, 150 G
    Dielectric Grease, 150 G
  • 39
    414274500 Circlip
    Circlip
  • 40
    512060313 Protector
    Protector
  • 41
    512059538 Upper Housing
    Upper Housing
  • 42
    512059537 Lower Housing
    Lower Housing
  • 43
    512060431 Handle Ass'y
    Handle Ass'y
  • 44
    512059968 Ignition Coil
    Ignition Coil
  • 45
    293550004 Dielectric Grease, 150 G
    Dielectric Grease, 150 G
  • 46
    512060291 Cable Ass'y
    Cable Ass'y
  • 47
    410914600 Plastic Clip, Spark Plug Wire
    Plastic Clip, Spark Plug Wire
  • 48
    207663044 Hex. Flanged Screw M6 X 30
    Hex. Flanged Screw M6 X 30
  • 49
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 50
    512060350 Coils Support
    Coils Support
  • 51
    241151640 Hex. Flanged Screw K50 X 16
    Hex. Flanged Screw K50 X 16
  • 52
    512060443 Calibrated Module
    Calibrated Module
  • 53
    512060337 ECM Support
    ECM Support
  • 54
    512060379 Tank Support
    Tank Support
  • 55
    390909200 Avex Rivet
    Avex Rivet
  • 56
    293650172 Tridon Clamp
    Tridon Clamp
  • 57
    570069700 Latch
    Latch
  • 58
    512060410 Rubber Washer
    Rubber Washer
  • 59
    512059552 Spark Plug, NGK BR9ECS, 0.5 mm
    Spark Plug, NGK BR9ECS, 0.5 mm
  • 60
    293550004 Dielectric Grease, 150 G
    Dielectric Grease, 150 G
  • 61
    512060136 Starter Grip
    Starter Grip
