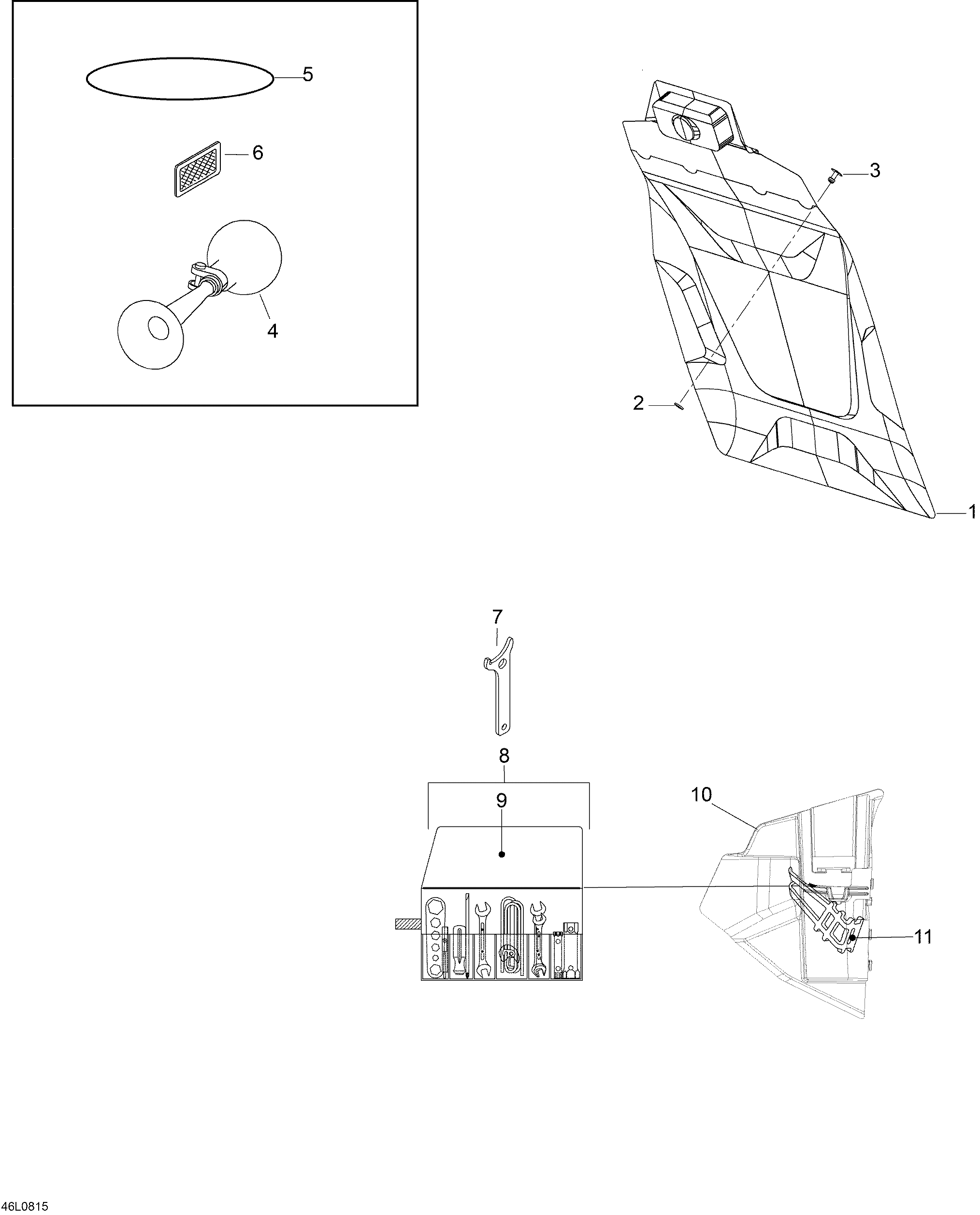

09- Utilities для BRP Lynx Rave RS 600 - 2008
-
№АртикулНазвание
-
1520000830 Snow guardSnow guard
-
2234052600 Washer A6.4Washer A6.4
-
3293150104 RivetRivet
-
4549011291 HornHorn
-
5605621001 Reflector, yellowReflector, yellow
-
621118 Reflector, BrightReflector, Bright
-
7529000035 Wrench adjusterWrench adjuster
-
8529035596 Tool set. Sisaltaa osat 7-8Tool set. Sisaltaa osat 7-8
-
9520000047 Tool boxTool box
-
10520000741 TrunkTrunk
-
11570069700 LatchLatch
