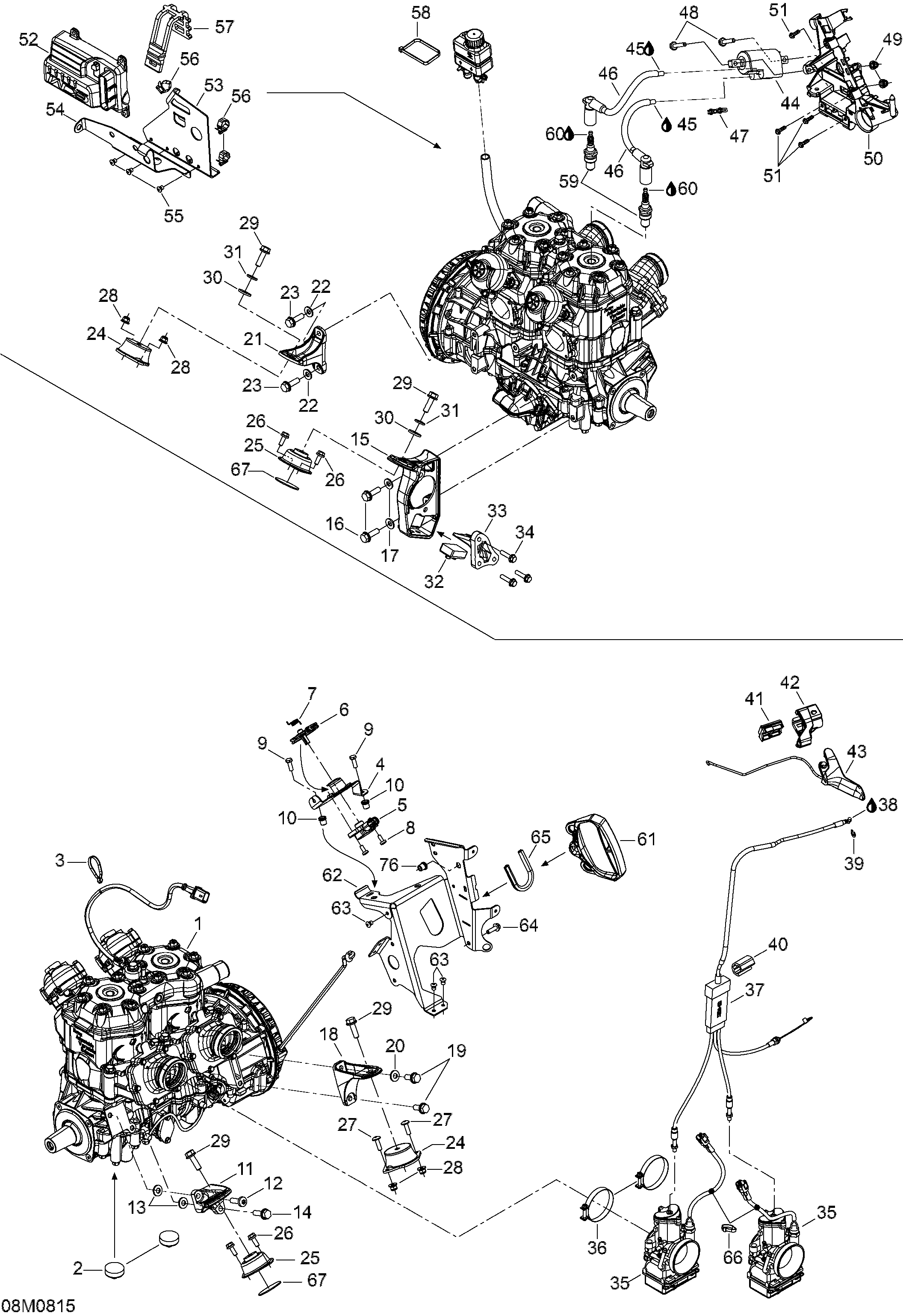

01- Engine And Engine Support для BRP Lynx Rave RS 600 - 2008
-
№АртикулНазвание
-
2512059738 StopperStopper
-
3414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
4512060336 TPS SupportTPS Support
-
5404162079 Sensor Ass'ySensor Ass'y
-
6512060335 Cap CamCap Cam
-
7512060351 Cam SpringCam Spring
-
8208651241 Phillips Screw M5 X 12Phillips Screw M5 X 12
-
9207361644 Hex. Screw M6 X 16, Scotch GripHex. Screw M6 X 16, Scotch Grip
-
10415107300 InsertInsert
-
11512060173 Rear PTO SupportRear PTO Support
-
12250000248 Torx Screw M8 X 25, Scotch GripTorx Screw M8 X 25, Scotch Grip
-
13234281474 Conical Spring Washer M8Conical Spring Washer M8
-
14207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
15512060203 Front PTO SupportFront PTO Support
-
16207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
17234281474 Conical Spring Washer M8Conical Spring Washer M8
-
18512060404 Engine SupportEngine Support
-
19207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
20234281474 Conical Spring Washer M8Conical Spring Washer M8
-
21512060108 Front MAG SupportFront MAG Support
-
22207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
23234281474 Conical Spring Washer M8Conical Spring Washer M8
-
24512060360 Rubber MountRubber Mount
-
25512060385 Rubber MountRubber Mount
-
26207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
27250000335 Socket Head Screw M6 X 20Socket Head Screw M6 X 20
-
28233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
29207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
30503183200 Washer, YellowWasher, Yellow
-
31234281474 Conical Spring Washer M8Conical Spring Washer M8
-
32512060179 StopperStopper
-
33512060180 Stopper SupportStopper Support
-
34207562544 Hex. Flanged Screw M6 X 25, Scotch GripHex. Flanged Screw M6 X 25, Scotch Grip
-
35403138796 Carburator TMX38-66Carburator TMX38-66
-
36512059835 Gemi ClampGemi Clamp
-
37512060292 Throttle CableThrottle Cable
-
38293550004 Dielectric Grease, 150 GDielectric Grease, 150 G
-
39414274500 CirclipCirclip
-
40512060313 ProtectorProtector
-
41512060198 Upper HousingUpper Housing
-
42512060197 Lower HousingLower Housing
-
43512060268 Handle Ass'yHandle Ass'y
-
44512059968 Ignition CoilIgnition Coil
-
45293550004 Dielectric Grease, 150 GDielectric Grease, 150 G
-
46512060291 Cable Ass'yCable Ass'y
-
47410914600 Plastic Clip, Spark Plug WirePlastic Clip, Spark Plug Wire
-
48207663044 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
49233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
50512060350 Coils SupportCoils Support
-
51241151640 Hex. Flanged Screw K50 X 16Hex. Flanged Screw K50 X 16
-
52512060265 Calibrated ModuleCalibrated Module
-
53512060337 ECM SupportECM Support
-
54512060379 Tank SupportTank Support
-
55390909200 Avex RivetAvex Rivet
-
56293650172 Tridon ClampTridon Clamp
-
57570069700 LatchLatch
-
58414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
59512059552 Spark Plug, NGK BR9ECS, 0.5 mmSpark Plug, NGK BR9ECS, 0.5 mm
-
60293550004 Dielectric Grease, 150 GDielectric Grease, 150 G
-
61512060136 Starter GripStarter Grip
-
62512060352 Grip SupportGrip Support
-
63390909200 Avex RivetAvex Rivet
-
64210262080 Hex. Forming Screw M6 X 20Hex. Forming Screw M6 X 20
-
65414506600 TrimTrim
-
66414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
67512060410 Rubber WasherRubber Washer
