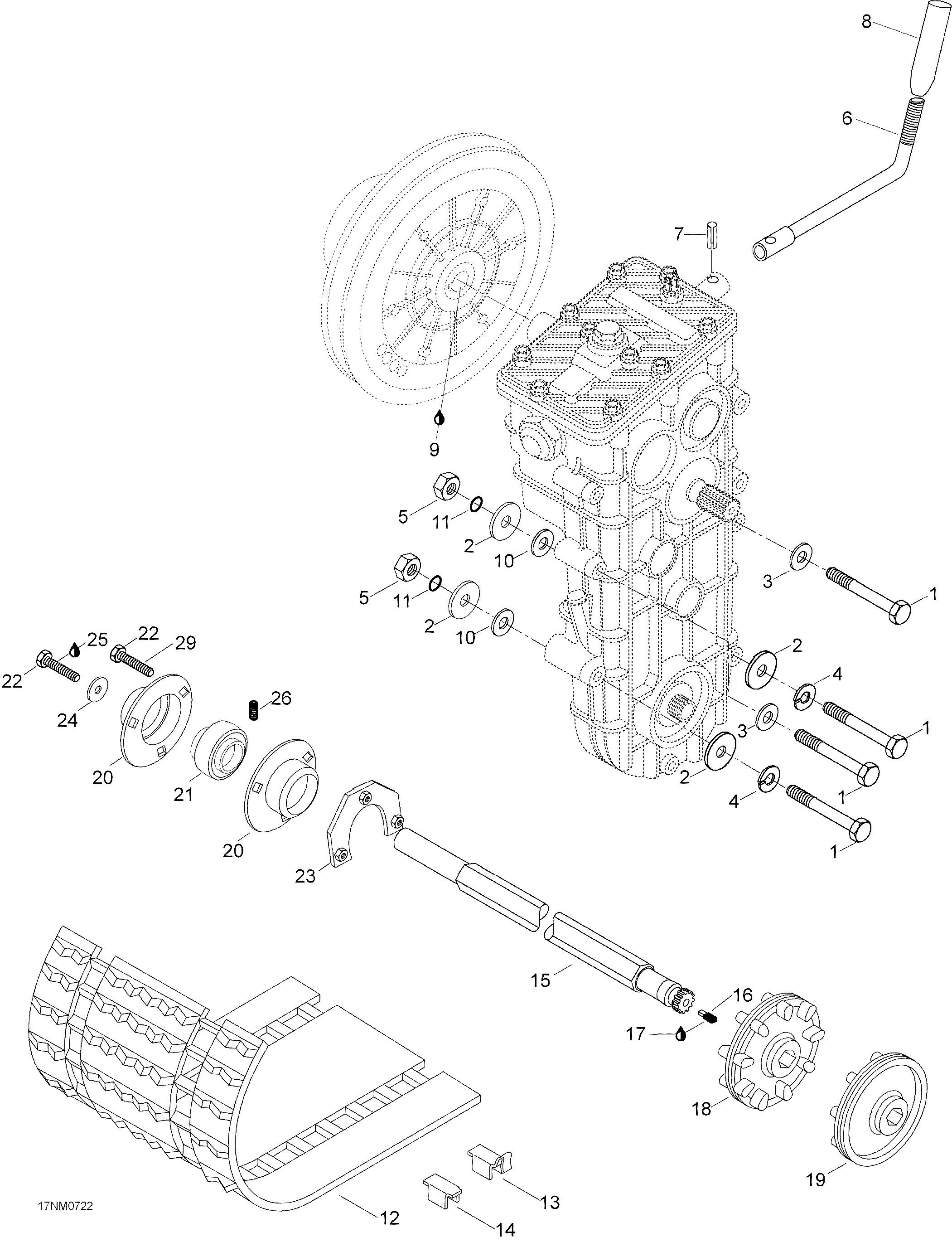

05- Drive System для BRP Lynx ST 550 - 2007

  • №
    Артикул
    Название
  • 1
    40012 Hex. screw M8 x 80. Includes 1 to 3
    Hex. screw M8 x 80. Includes 1 to 3
  • 2
    20010 Washer A8.4
    Washer A8.4
  • 3
    20004 Washer A8.4
    Washer A8.4
  • 4
    20014 Lock washer A8. Includes 4 to 9
    Lock washer A8. Includes 4 to 9
  • 5
    33011 Elastic stop nut M8
    Elastic stop nut M8
  • 6
    5340902 Shift handle
    Shift handle
  • 7
    41008 Spring key
    Spring key
  • 8
    28247 Button
    Button
  • 9
    293800070 Loctite 767, Antiseize lubricant, 8oz
    Loctite 767, Antiseize lubricant, 8oz
  • 10
    20077 Washer A8.4
    Washer A8.4
  • 11
    506151140 O-ring
    O-ring
  • 12
    13055 Track. Includes 12 to 14
    Track. Includes 12 to 14
  • 13
    5318323 Cleat guide
    Cleat guide
  • 14
    5318322 Slide guide
    Slide guide
  • -
    5345116 Drive axle assy. Includes 15 to 19
    Drive axle assy. Includes 15 to 19
  • 15
    5345117 Drive axle
    Drive axle
  • 16
    542013 Insert
    Insert
  • 17
    293800005 Loctite 271, 10ml
    Loctite 271, 10ml
  • 18
    414931800 Sprocket 8-teeth
    Sprocket 8-teeth
  • 19
    415067400 Sprocket 8-teeth
    Sprocket 8-teeth
  • 20
    534430 Bearing housing ass'y
    Bearing housing ass'y
  • 21
    31UC205 Ball bearing
    Ball bearing
  • 22
    40336 Hex. screw M8 x 20
    Hex. screw M8 x 20
  • 23
    546421 Thrust ring
    Thrust ring
  • 24
    546336 Washer
    Washer
  • 25
    293800060 Loctite 243, 10ml
    Loctite 243, 10ml
  • 26
    10531 Lockscrew
    Lockscrew
