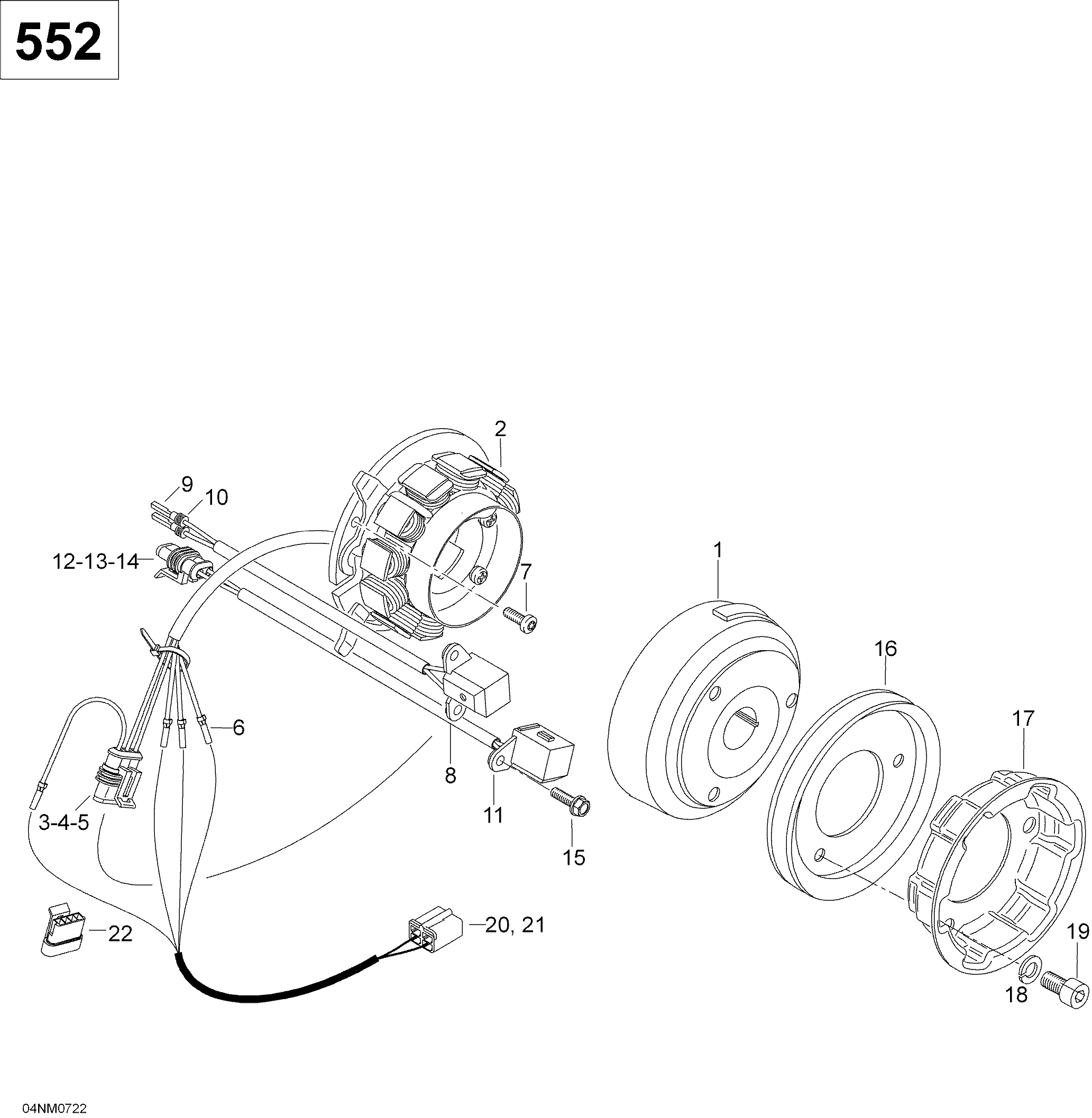

01- Ignition для BRP Lynx ST 550 - 2007

  • №
    Артикул
    Название
  • 1
    420889376 Magneto flywheel
    Magneto flywheel
  • 2
    420899368 Stator. Includes 2 to 6
    Stator. Includes 2 to 6
  • 3
    409209600 Female terminal housing
    Female terminal housing
  • 4
    278001014 Female terminal
    Female terminal
  • 5
    278001013 Seal
    Seal
  • 6
    515175567 Female terminal
    Female terminal
  • 7
    420641521 Screw, Torx M5 x 16
    Screw, Torx M5 x 16
  • 8
    420966548 Pick up assy, reverse. Includes 8 to 10
    Pick up assy, reverse. Includes 8 to 10
  • 9
    278001014 Female terminal
    Female terminal
  • 10
    278001013 Seal
    Seal
  • 11
    420966546 Pick up assy, forward. Includes 11 to 14
    Pick up assy, forward. Includes 11 to 14
  • 12
    409209500 Female terminal housing
    Female terminal housing
  • 13
    278001014 Female terminal
    Female terminal
  • 14
    278001013 Seal
    Seal
  • 15
    420941925 Screw M5 x 16
    Screw M5 x 16
  • 16
    420980486 V-belt pulley
    V-belt pulley
  • 17
    420852414 Starting pulley
    Starting pulley
  • 18
    420845311 Spring washer
    Spring washer
  • 19
    420440852 Screw, Torx M8 x 16
    Screw, Torx M8 x 16
  • 20
    278001473 Male terminal hous.
    Male terminal hous.
  • 21
    278001474 Lock wedge
    Lock wedge
  • 22
    42618 Male terminal hous.
    Male terminal hous.
