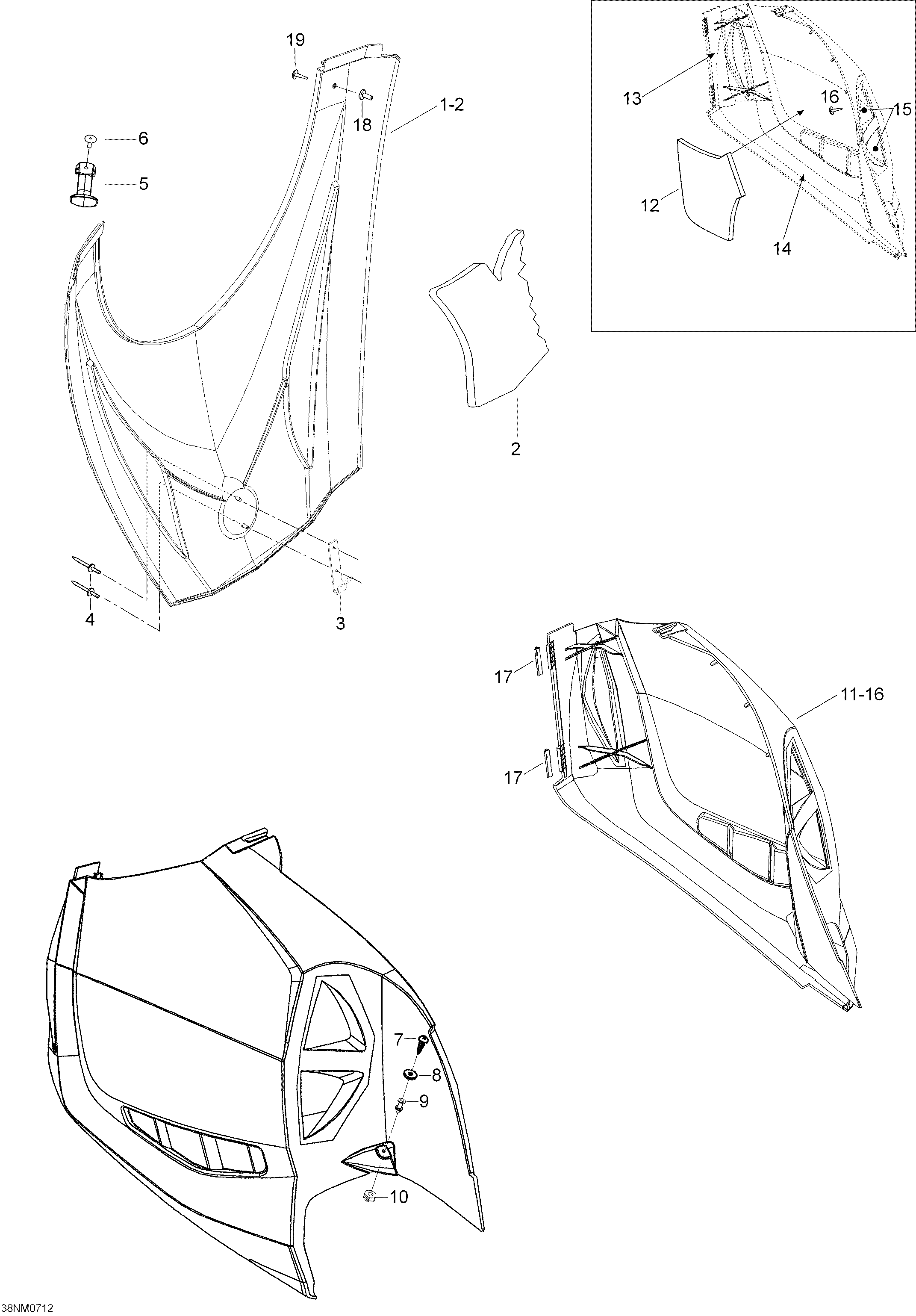

09- Hood для BRP Lynx Rave XT N-duro 800HO PowerT - 2007

  • №
    Артикул
    Название
  • 1
    605153160 Hood, pre ass'y, Jet Black. Includes 1 to 2
    Hood, pre ass'y, Jet Black. Includes 1 to 2
  • 2
    605252248 Foam
    Foam
  • 3
    605353185 Bracket
    Bracket
  • 4
    36004 Rivet
    Rivet
  • 5
    570027100 Latch
    Latch
  • 6
    36037 Rivet
    Rivet
  • 7
    208651481 Screw M5 x 14
    Screw M5 x 14
  • 8
    250200025 Washer
    Washer
  • 9
    517245800 Knob
    Knob
  • 10
    517302841 Grommet
    Grommet
  • 11
    605153150 R.H. Panel, pre ass'y, Jet Black. Includes 11 to 16
    R.H. Panel, pre ass'y, Jet Black. Includes 11 to 16
  • 11
    605153152 L.H. Panel, pre ass'y, Jet Black. Includes 11 to 16
    L.H. Panel, pre ass'y, Jet Black. Includes 11 to 16
  • 12
    605251679 R.H. Foam
    R.H. Foam
  • 12
    605252003 L.H. Foam
    L.H. Foam
  • 13
    44001 R.H. Reflection sheet
    R.H. Reflection sheet
  • 14
    44001 L.H. Reflection sheet
    L.H. Reflection sheet
  • 15
    605352689 R.H. Side grill
    R.H. Side grill
  • 15
    605352690 L.H. Side grill
    L.H. Side grill
  • 16
    40887 Wronic-screw 4.2 x 9.5
    Wronic-screw 4.2 x 9.5
  • 17
    517302823 Hinge lock
    Hinge lock
  • 18
    36015 Rivet nut M5
    Rivet nut M5
  • 19
    40072 Screw M5 x 16
    Screw M5 x 16
