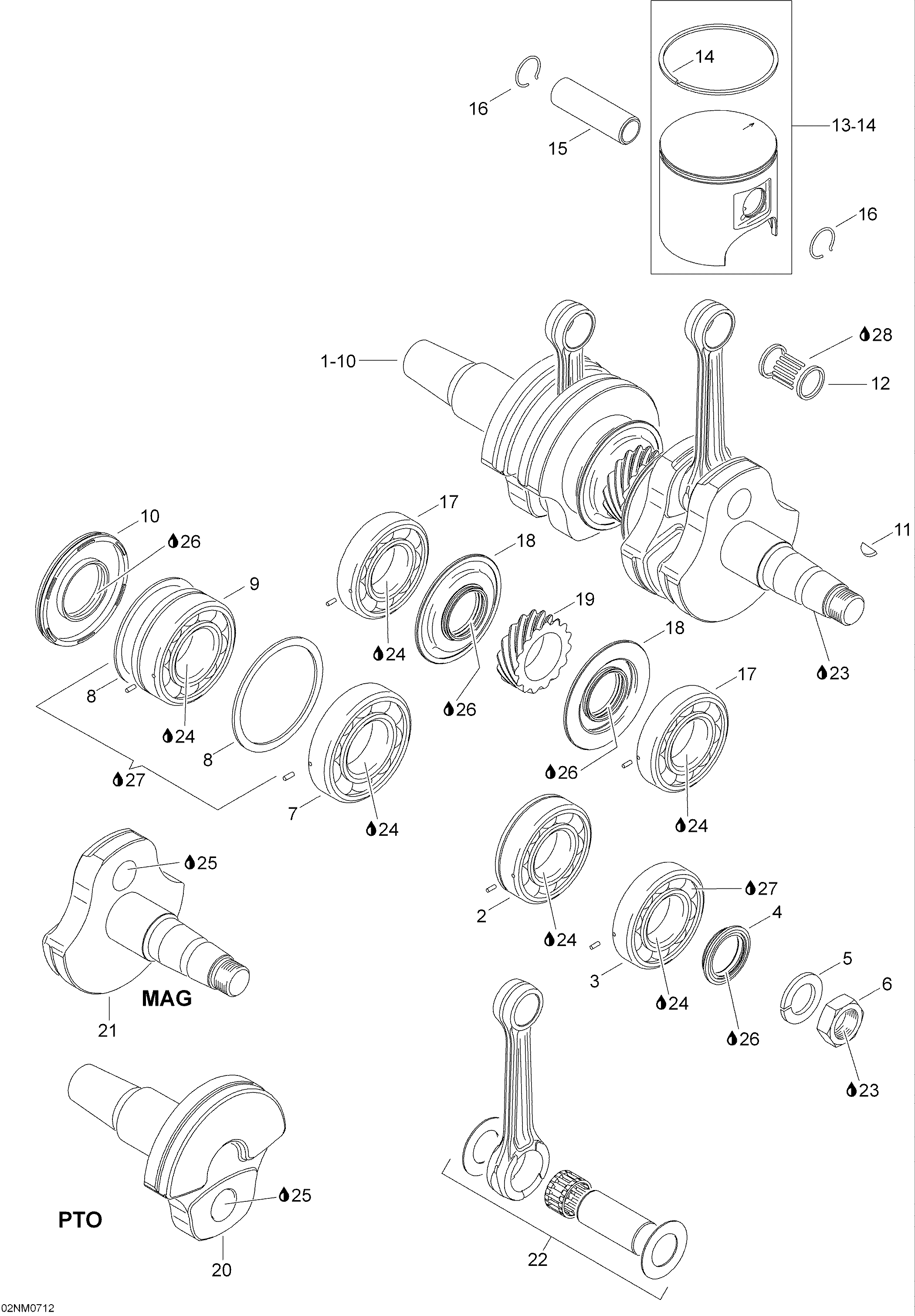

01- Crankshaft And Pistons для BRP Lynx Rave XT N-duro 800HO PowerT - 2007

  • №
    Артикул
    Название
  • 1
    420889675 Crankshaft ass'y. Includes 1 to 10. Includes 1 to 10
    Crankshaft ass'y. Includes 1 to 10. Includes 1 to 10
  • 2
    420832638 Ball bearing ass'y
    Ball bearing ass'y
  • 3
    420832575 Bearing 6207 ass'y
    Bearing 6207 ass'y
  • 4
    420931792 Oil seal
    Oil seal
  • 5
    420945759 Lock washer
    Lock washer
  • 6
    420842230 Nut M22
    Nut M22
  • 7
    420832608 Bearing 6208 ass'y
    Bearing 6208 ass'y
  • 8
    420926190 Retaining disk
    Retaining disk
  • 9
    420832700 Bearing 6208 ass'y
    Bearing 6208 ass'y
  • 10
    420931285 Oil seal
    Oil seal
  • 11
    420246015 Woodruff-key
    Woodruff-key
  • 12
    420832428 Needle cage
    Needle cage
  • 13
    420889456 Piston 81.87 mm. Includes 13 to 14. Includes 13 to 14
    Piston 81.87 mm. Includes 13 to 14. Includes 13 to 14
  • 14
    420815360 Semi trapez ring
    Semi trapez ring
  • 15
    420916371 Piston pin
    Piston pin
  • 16
    420845106 Circlip
    Circlip
  • 17
    420832575 Ball bearing assy
    Ball bearing assy
  • 18
    420931455 Oil seal
    Oil seal
  • 19
    420834355 Central gear 15T
    Central gear 15T
  • 20
    420819032 Crankshaft P.T.O.-side
    Crankshaft P.T.O.-side
  • 21
    420819061 Crankshaft MAG. side
    Crankshaft MAG. side
  • 22
    420684080 Rod repair kit MAG.-side
    Rod repair kit MAG.-side
  • 22
    420684081 Rod repair kit P.T.O.-side
    Rod repair kit P.T.O.-side
  • 23
    293800060 Loctite 243, 10ml
    Loctite 243, 10ml
  • 24
    293800070 Loctite 767, anti seize lubricant, 8oz
    Loctite 767, anti seize lubricant, 8oz
  • 25
    413711400 Loctite 648, 10ml
    Loctite 648, 10ml
  • 26
    420899271 Klueber petamo
    Klueber petamo
  • 27
    293550021 Isoflex grease, 50g
    Isoflex grease, 50g
  • 28
    1472236 Injection oil (8 x 1 Liter)
    Injection oil (8 x 1 Liter)
