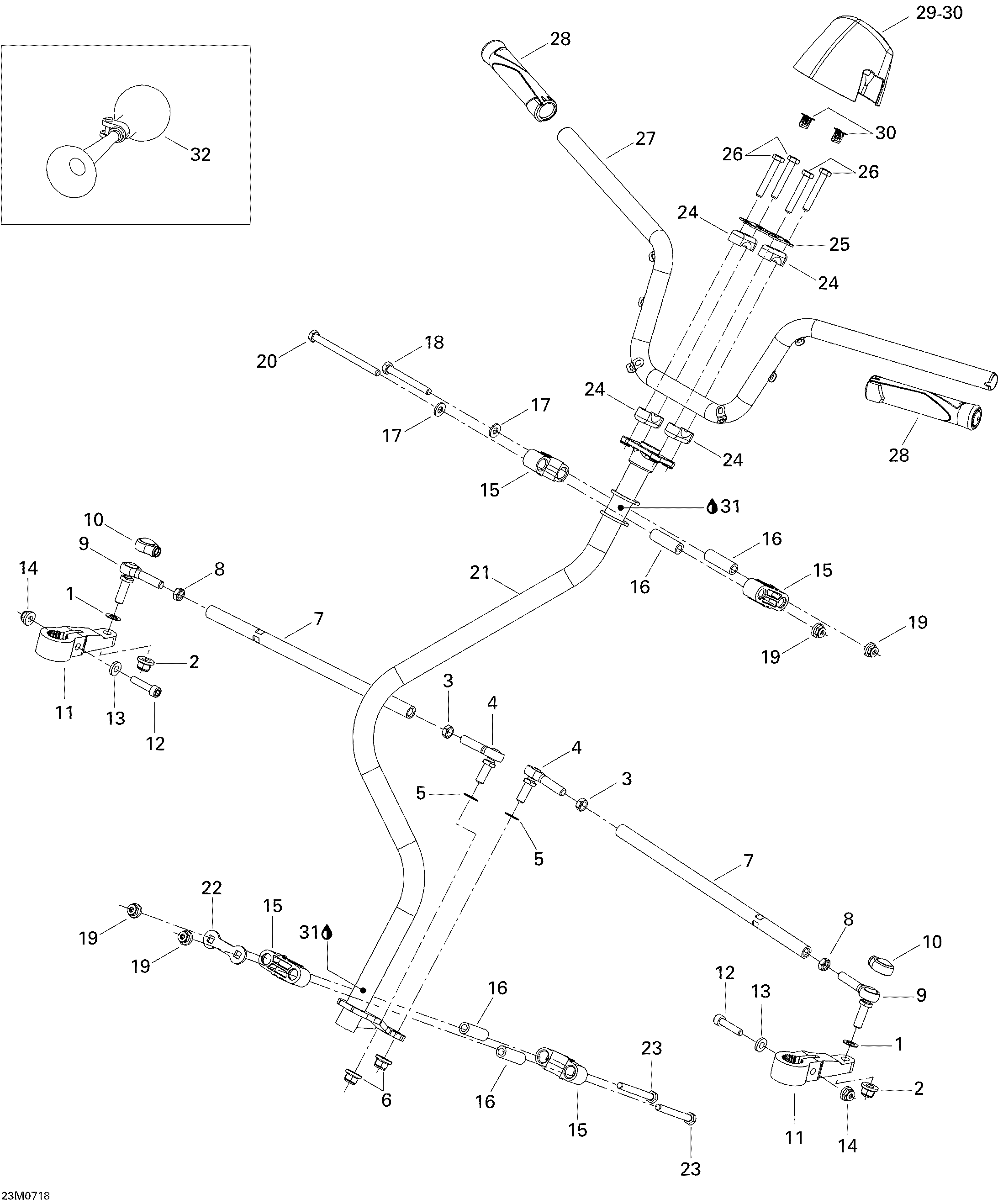

07- Steering System для BRP Lynx Adventure V-800 - 2007
-
№АртикулНазвание
-
1503175800 WasherWasher
-
2250100088 Hex. Elastic Hex Nut M10Hex. Elastic Hex Nut M10
-
3250100016 LH Hex Jam Nut M10LH Hex Jam Nut M10
-
4506151845 LH Joint BallLH Joint Ball
-
5503175800 WasherWasher
-
6250100088 Hex. Elastic Hex Nut M10Hex. Elastic Hex Nut M10
-
7506151884 Tie RodTie Rod
-
8732610010 RH Hex Jam Nut M10RH Hex Jam Nut M10
-
9506152017 RH Thread Ball JointRH Thread Ball Joint
-
10506151650 Protection CapProtection Cap
-
11506152030 Swivel ArmSwivel Arm
-
12207084544 Screw Hex M8 X 45Screw Hex M8 X 45
-
13234081410 Flat Washer 8 mmFlat Washer 8 mm
-
14233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
15506150400 Housing HalfHousing Half
-
16506150500 Housing BushingHousing Bushing
-
17503189157 WasherWasher
-
18207087044 Hex Screw M8 X 70Hex Screw M8 X 70
-
19233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
20230081044 Hex Screw M8 X 110Hex Screw M8 X 110
-
21506152013 Steering Main TubeSteering Main Tube
-
22506150600 Stopper PlateStopper Plate
-
23207087044 Hex Screw M8 X 70Hex Screw M8 X 70
-
24506151622 Steering SupportSteering Support
-
25506151547 ReinforcementReinforcement
-
26250000082 Hex Screw With Nylon M8 X 50Hex Screw With Nylon M8 X 50
-
27506151986 Handle BarHandle Bar
-
28506152119 Handle GripHandle Grip
-
29506152223 Cap. Includes 29 to 30Cap. Includes 29 to 30
-
30517302785 ClipClip
-
31219700417 Synthetic Grease, 400 gSynthetic Grease, 400 g
-
32415040700 HornHorn
