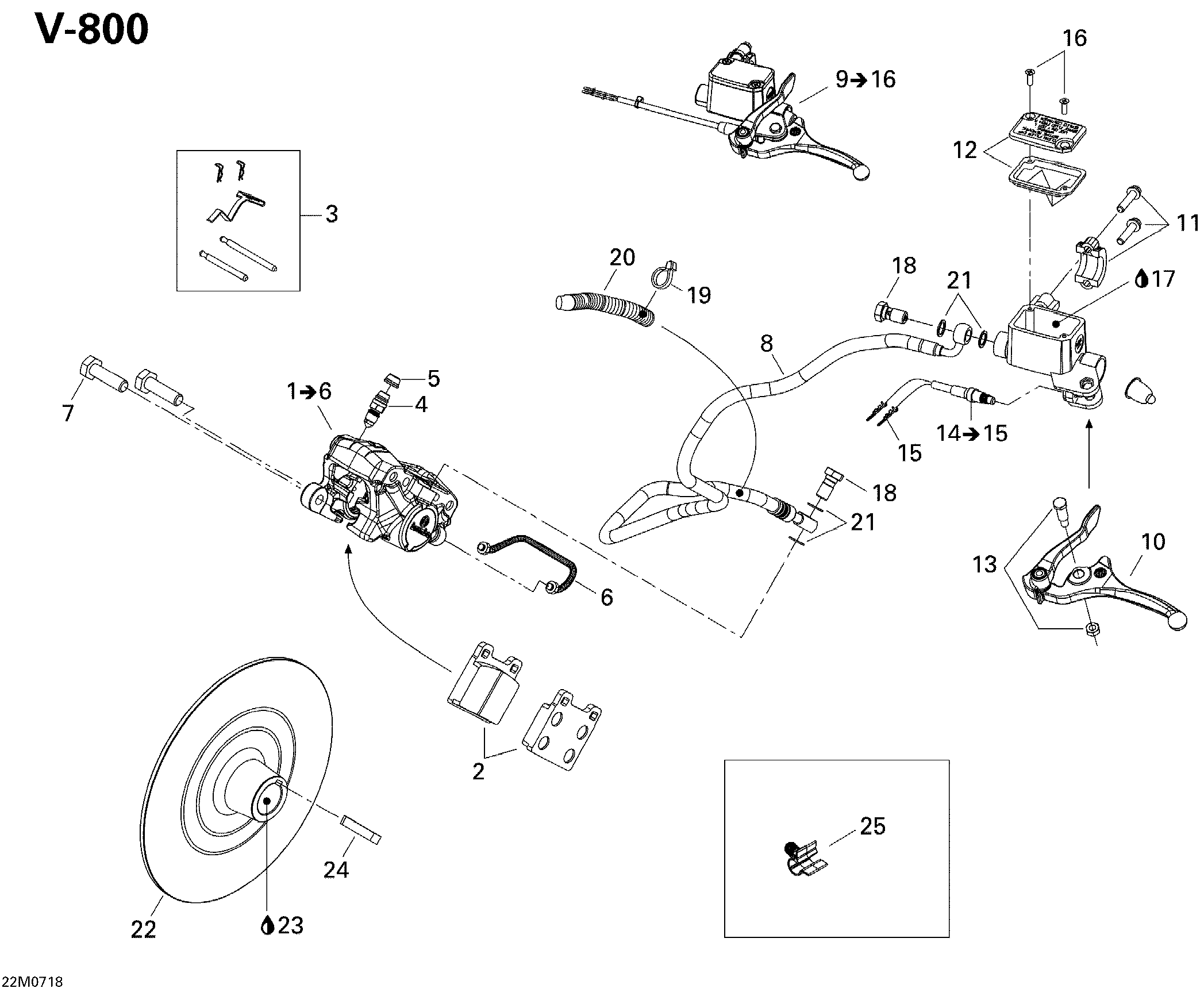

06- Hydraulic Brakes для BRP Lynx Adventure V-800 - 2007

  • №
    Артикул
    Название
  • 1
    507032448 Brake Caliper Ass'y. Includes 1 to 6
    Brake Caliper Ass'y. Includes 1 to 6
  • 2
    415129172 Brake Pad Kit
    Brake Pad Kit
  • 3
    415128865 Kit, Pins, Retainers, Spring
    Kit, Pins, Retainers, Spring
  • 4
    414989800 Bleeder Screw
    Bleeder Screw
  • 5
    414989700 Boot
    Boot
  • 6
    414989900 Rigid Tubing
    Rigid Tubing
  • 7
    205503544 Socket Head Screw M10 X 35, Scotch Grip
    Socket Head Screw M10 X 35, Scotch Grip
  • 8
    507032419 Brake Hose
    Brake Hose
  • 9
    507032362 Master Cylinder. Includes 9 to 16
    Master Cylinder. Includes 9 to 16
  • 10
    507032268 Brake Short Lever Ass’Y
    Brake Short Lever Ass’Y
  • 11
    415029800 Clamp Ass'y
    Clamp Ass'y
  • 12
    415029900 Cap
    Cap
  • 13
    415030000 Pin Ass'y
    Pin Ass'y
  • 14
    507032366 Microswitch. Includes 14 to 15
    Microswitch. Includes 14 to 15
  • 15
    515175232 Male Terminal
    Male Terminal
  • 16
    216141260 Screw M4 X 12
    Screw M4 X 12
  • 17
    293600063 Brake Fluid, SRF, DOT 4
    Brake Fluid, SRF, DOT 4
  • 18
    414920500 Banjo Bolt
    Banjo Bolt
  • 19
    293750002 Tie-Rap 130 mm
    Tie-Rap 130 mm
  • 20
    415079900 Tubing 10 mm
    Tubing 10 mm
  • 21
    414920600 Washer For Hose Connection
    Washer For Hose Connection
  • 22
    507032458 Brake Disk
    Brake Disk
  • 23
    293800070 Loctite 767, Antiseize Lubricant, 8 Oz
    Loctite 767, Antiseize Lubricant, 8 Oz
  • 24
    507021300 Key
    Key
  • 25
    275500528 Retainer Hose
    Retainer Hose
