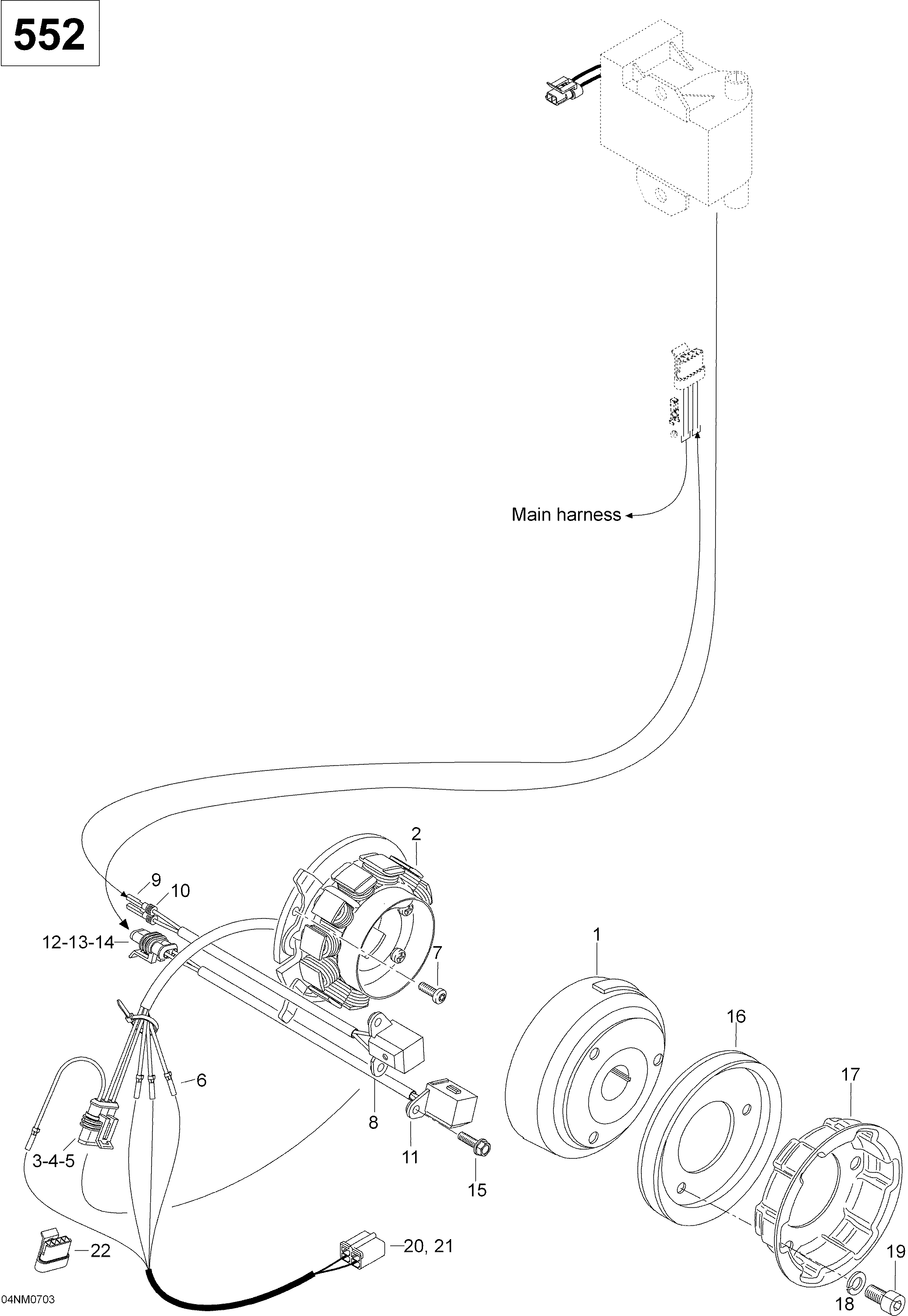

03- Magneto для BRP Lynx 6900 - 2007
-
№АртикулНазвание
-
-420888970 Magneto 12V/340W. Includes 1 to 6Magneto 12V/340W. Includes 1 to 6
-
1420889376 Magneto flywheelMagneto flywheel
-
2420889368 Stator plate ass'y. Includes 2 to 6Stator plate ass'y. Includes 2 to 6
-
3409209600 Female terminal housing (3 circuits)Female terminal housing (3 circuits)
-
4278001014 Female terminalFemale terminal
-
5278001013 SealSeal
-
6515175567 Female terminalFemale terminal
-
7420641521 Torx, allen screw M5 x 16Torx, allen screw M5 x 16
-
8420966548 Pick up ass'y for reverse. Includes 8 to 10Pick up ass'y for reverse. Includes 8 to 10
-
9278001014 Female terminalFemale terminal
-
10278001013 SealSeal
-
11420966546 Pick up ass'y. Includes 11 to 14Pick up ass'y. Includes 11 to 14
-
12409209500 Female terminal housingFemale terminal housing
-
13278001014 Female terminalFemale terminal
-
14278001013 SealSeal
-
15420941925 Taptite Screw M5 x 16Taptite Screw M5 x 16
-
16420980486 V-belt pulleyV-belt pulley
-
17420852414 Starting pulleyStarting pulley
-
18420845311 Lock washer 8 mmLock washer 8 mm
-
19420440852 Torx flange screw M8 x 16Torx flange screw M8 x 16
-
20278001473 Liitin kotelo, urosLiitin kotelo, uros
-
21278001474 Kiila, uros liitinkoteloonKiila, uros liitinkoteloon
-
2242618 Male connector housingMale connector housing
