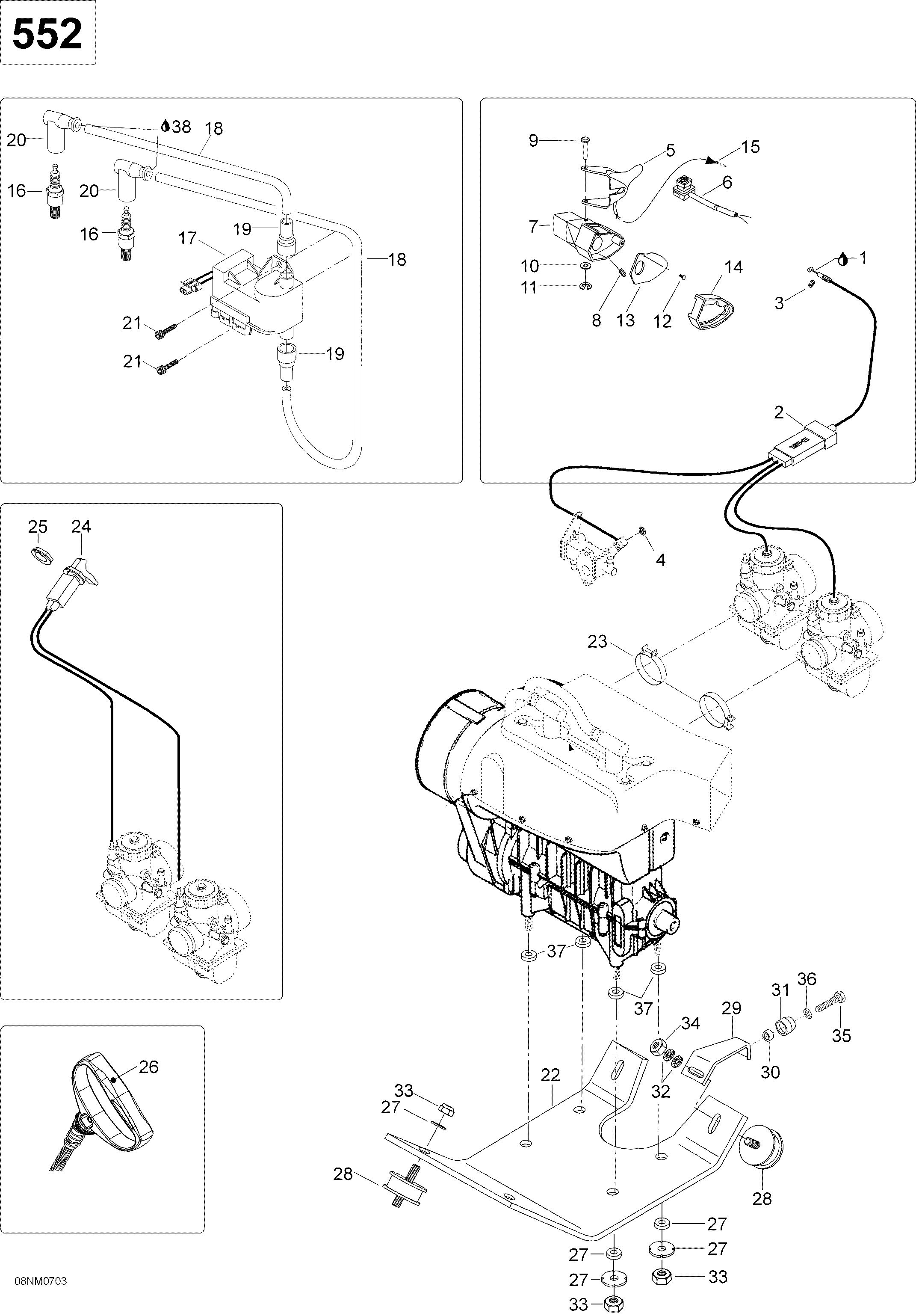

01- Engine And Engine Support для BRP Lynx 6900 - 2007
-
№АртикулНазвание
-
1293550004 Dielectric grease, 150gDielectric grease, 150g
-
2605249117 Gas wireGas wire
-
331038 CirclipCirclip
-
431035 CirclipCirclip
-
5512059144 Heated handleHeated handle
-
6414612700 Kill switchKill switch
-
7512059489 Throttle housingThrottle housing
-
8114144408 Screw M8 x 10Screw M8 x 10
-
9414438700 PinPin
-
10414438900 WasherWasher
-
11414439000 CirclipCirclip
-
12414473200 ScrewScrew
-
13512059507 PlatePlate
-
14572044600 Throttle adaptorThrottle adaptor
-
1542603 ConnectorConnector
-
16414961100 Spark plug , BR 9 ESSpark plug , BR 9 ES
-
17512059626 Electronic box ass'y. Includes 42 to 45Electronic box ass'y. Includes 42 to 45
-
18278001268 Ignition cableIgnition cable
-
19515174900 Protection capProtection cap
-
20278000237 Spark plug connectorSpark plug connector
-
2140322 Self tapping screw M6 x 16Self tapping screw M6 x 16
-
225342951 Engine supportEngine support
-
23414532700 ClampClamp
-
24535482 Choke cable. Includes 24 to 25Choke cable. Includes 24 to 25
-
25512059094 Plastic nutPlastic nut
-
26572084400 GripGrip
-
27512056700 Lock washerLock washer
-
28570127700 Rubber mountRubber mount
-
29539902 SupportSupport
-
302846014 Rubber washerRubber washer
-
31605449240 SleeveSleeve
-
3220068 Lock washerLock washer
-
3333012 Nut elastic M10Nut elastic M10
-
3433004 Nut M10Nut M10
-
3540121 Hex. crew M8 x 40Hex. crew M8 x 40
-
3633003 Nut M8Nut M8
-
375440678 SleeveSleeve
-
38293550004 Dielectric grease, 150gDielectric grease, 150g
