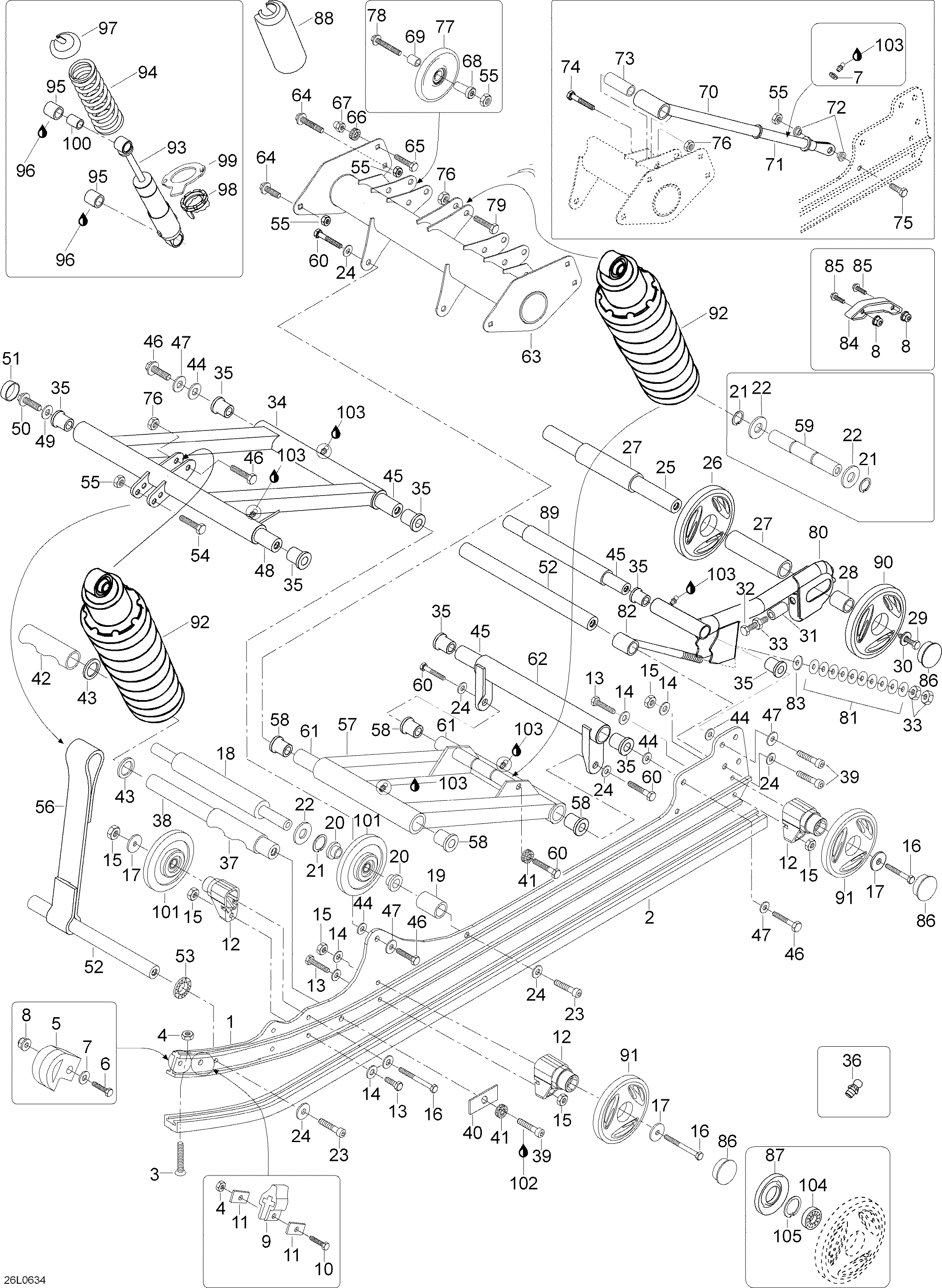

08- Rear Suspension для BRP Lynx YETI SUV V-800 - 2006

  • №
    Артикул
    Название
  • 1
    605253573 Runner
    Runner
  • 2
    5347724 Slider shoe
    Slider shoe
  • 3
    40059 Socket head screw M6 x 60
    Socket head screw M6 x 60
  • 4
    33010 Elastic stop nut M6
    Elastic stop nut M6
  • 5
    605348954 Runner protector
    Runner protector
  • 6
    40031 Hex. screw M6 x 25
    Hex. screw M6 x 25
  • 7
    20003 Washer 6mm
    Washer 6mm
  • 8
    33200 Elastic flanged nut M6
    Elastic flanged nut M6
  • 9
    5448216 Rubber bumper
    Rubber bumper
  • 10
    40032 Hex. screw M6 x 30
    Hex. screw M6 x 30
  • 11
    548470 Plate
    Plate
  • 12
    605450182 Support
    Support
  • 13
    40037 Hex. screw M8 x 25
    Hex. screw M8 x 25
  • 14
    20104 Washer hardened M8
    Washer hardened M8
  • 15
    33011 Elastic stop nut M8
    Elastic stop nut M8
  • 16
    40089 Hex. screw M8 x 75
    Hex. screw M8 x 75
  • 17
    503183100 Washer M8 hardened
    Washer M8 hardened
  • 18
    5347950 Shaft
    Shaft
  • 19
    5447951 Sleeve
    Sleeve
  • 20
    503189534 Insert
    Insert
  • 21
    31007 Circlip
    Circlip
  • 22
    31091 Shim
    Shim
  • 23
    40134 Socket head screw M10 x 45
    Socket head screw M10 x 45
  • 24
    20105 Washer M10 hardened
    Washer M10 hardened
  • 25
    5343284 Shaft
    Shaft
  • 26
    503189478 Support wheel 165
    Support wheel 165
  • 27
    5444096 Sleeve
    Sleeve
  • 28
    5444098 Sleeve
    Sleeve
  • 29
    40050 Hex. screw M10 x 35
    Hex. screw M10 x 35
  • 30
    503183300 Washer 10mm, hardened
    Washer 10mm, hardened
  • 31
    605452332 Sleeve
    Sleeve
  • 32
    40239 Hex. screw M10 x 100
    Hex. screw M10 x 100
  • 33
    33004 Nut M10
    Nut M10
  • 34
    5147672 Front arm
    Front arm
  • 35
    31024 Slide bearing
    Slide bearing
  • 36
    34011 Grease nipple
    Grease nipple
  • 37
    5347718 Limiter
    Limiter
  • 38
    5347726 Shaft
    Shaft
  • 39
    40536 Socket head screw M10 x 45
    Socket head screw M10 x 45
  • 40
    5447940 Support plate
    Support plate
  • 41
    20068 Lock washer
    Lock washer
  • 42
    5346649 Limiter
    Limiter
  • 43
    31013 Shim
    Shim
  • 44
    20116 Washer
    Washer
  • 45
    5347713 Shaft
    Shaft
  • 46
    40016 Hex. screw M10 x 45
    Hex. screw M10 x 45
  • 47
    512056700 Lock washer
    Lock washer
  • 48
    605348606 Shaft
    Shaft
  • 49
    20090 Washer
    Washer
  • 50
    40243 Hex. screw M12 x 60
    Hex. screw M12 x 60
  • 51
    5448025 Cap
    Cap
  • 52
    5347717 Shaft
    Shaft
  • 53
    4181158 Pikavarmistin Starlock 20x36,5
    Pikavarmistin Starlock 20x36,5
  • 54
    40008 Hex. screw M8 x 45
    Hex. screw M8 x 45
  • 55
    33011 Elastic stop nut M8
    Elastic stop nut M8
  • 56
    5447919 Stopper strap
    Stopper strap
  • 57
    605349313 Rear arm
    Rear arm
  • 58
    31027 Slide bearing
    Slide bearing
  • 59
    605451897 Shaft
    Shaft
  • 60
    40014 Hex. screw M10 x 40
    Hex. screw M10 x 40
  • 61
    5346865 Shaft
    Shaft
  • 62
    5347668 Arm
    Arm
  • 63
    605249988 Upper arm
    Upper arm
  • 64
    40058 Lock screw M8 x 20
    Lock screw M8 x 20
  • 65
    40056 Lock screw M8 x 16
    Lock screw M8 x 16
  • 66
    20072 Lock washer
    Lock washer
  • 67
    33044 Nut M8
    Nut M8
  • 68
    605450372 Sleeve
    Sleeve
  • 69
    605450373 Sleeve
    Sleeve
  • 70
    5347851 Poker tube
    Poker tube
  • 71
    5347852 Poker shaft
    Poker shaft
  • 72
    5447853 Slide bearing
    Slide bearing
  • 73
    5447848 Sleeve
    Sleeve
  • 74
    40011 Hex. screw M8 x 60
    Hex. screw M8 x 60
  • 75
    222003565 Hex. screw M10 x 35
    Hex. screw M10 x 35
  • 76
    33012 Eastic stop nut M10
    Eastic stop nut M10
  • 77
    46027 Idler wheel
    Idler wheel
  • 78
    40088 Hex. screw M8 x 70
    Hex. screw M8 x 70
  • 79
    40017 Hex. screw M10 x 50
    Hex. screw M10 x 50
  • 80
    605251782 R.H. Extension
    R.H. Extension
  • 80
    605251781 L.H. Extension
    L.H. Extension
  • 81
    25004 Spring washer
    Spring washer
  • 82
    5447373 Eye bolt adjuster
    Eye bolt adjuster
  • 83
    20011 Washer 10mm, hardened
    Washer 10mm, hardened
  • 84
    5343191 Slide piece
    Slide piece
  • 85
    40064 Locking screw M6 x 40
    Locking screw M6 x 40
  • 86
    570063600 Protector
    Protector
  • 87
    572089000 Labyrinth seal
    Labyrinth seal
  • 88
    5346754 Shock protector
    Shock protector
  • 89
    605448429 Sleeve
    Sleeve
  • 90
    503190856 Idler wheel 165/Full Moon
    Idler wheel 165/Full Moon
  • 91
    503190796 Idler wheel 139/Full Moon
    Idler wheel 139/Full Moon
  • 92
    605350536 Shock ass'y, front arm. Includes 92 to 98
    Shock ass'y, front arm. Includes 92 to 98
  • 92
    605350647 Shock ass'y, rear arm. Includes 92 to 99
    Shock ass'y, rear arm. Includes 92 to 99
  • 93
    23204 Shock, front arm
    Shock, front arm
  • 93
    23152 Shock, rear arm
    Shock, rear arm
  • 94
    25065 Spring, front arm
    Spring, front arm
  • 94
    230079 Spring, rear arm
    Spring, rear arm
  • 95
    31094 Slide bearing
    Slide bearing
  • 96
    320006 Glue. Loctite
    Glue. Loctite
  • 97
    230076 Spring seat
    Spring seat
  • 98
    230078 Cam
    Cam
  • 99
    605348748 Adjusting cam
    Adjusting cam
  • 100
    5446652 Sleeve
    Sleeve
  • 101
    503190798 Idler wheel 139/black
    Idler wheel 139/black
  • 102
    293800060 Loctite 243, 10ml
    Loctite 243, 10ml
  • 103
    293550033 Synthetic grease
    Synthetic grease
  • 104
    503190795 Ball bearing
    Ball bearing
  • 105
    371901700 Circlip
    Circlip
