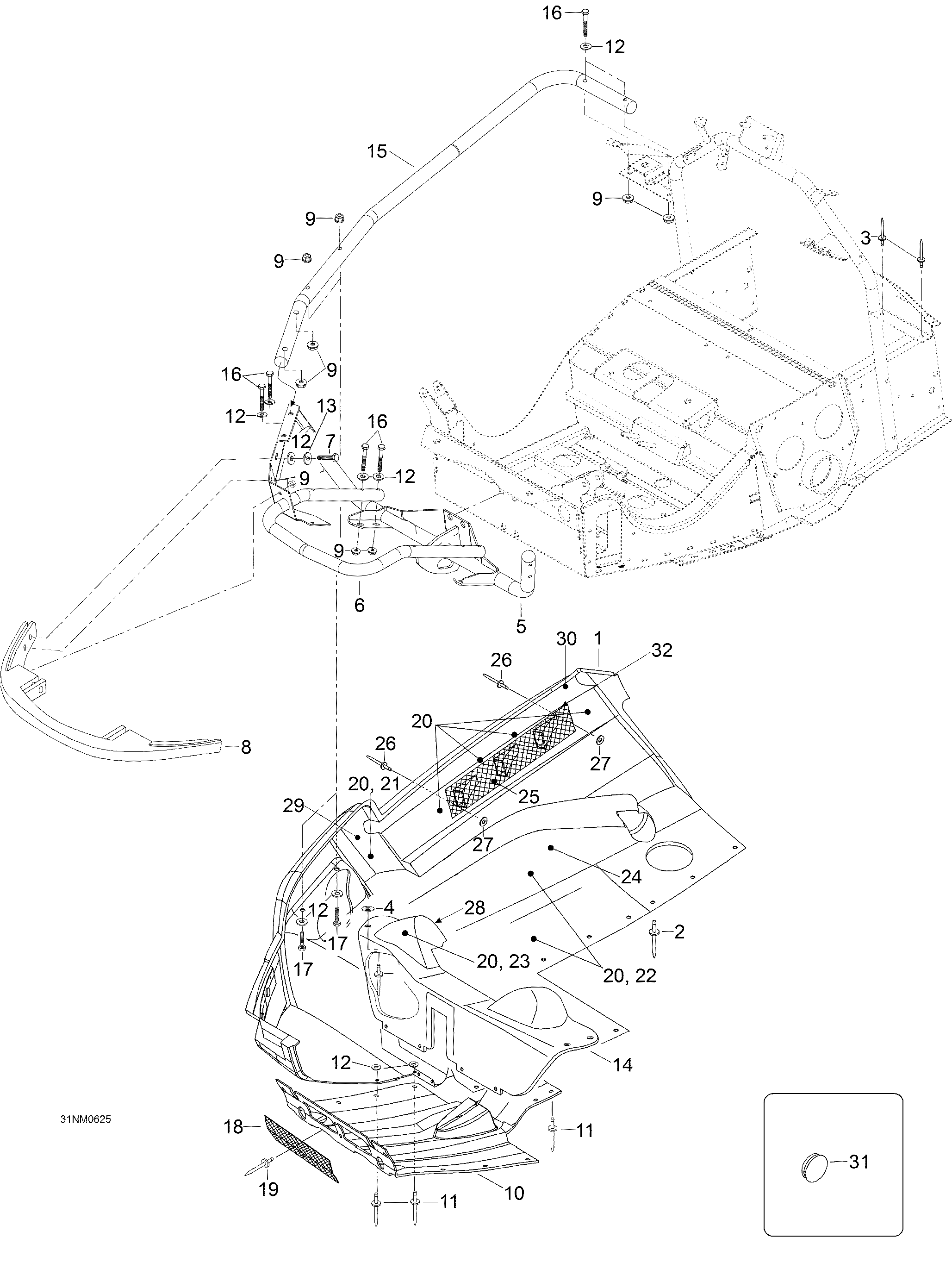

09- Bottom Pan для BRP Lynx Yeti 600 SDI - 2006
-
№АртикулНазвание
-
1605152578 R.H. Bottom panR.H. Bottom pan
-
1605149805 L.H. Bottom panL.H. Bottom pan
-
236037 RivetRivet
-
336083 RivetRivet
-
420008 Washer A5,3Washer A5,3
-
5605253937 BracketBracket
-
6605351509 BumperBumper
-
740029 Hex. screw M6 x 16Hex. screw M6 x 16
-
8502006719 BumperBumper
-
933200 Elastic flanged nut M6Elastic flanged nut M6
-
10605152620 Bottom pan, middleBottom pan, middle
-
1136072 RivetRivet
-
1220009 Washer A6Washer A6
-
1320052 Lock washer A6Lock washer A6
-
14605252530 CoverCover
-
15605152371 Side bumperSide bumper
-
1640002 Hex. screw M6 x 40Hex. screw M6 x 40
-
1740084 Hex. screw M6 x 45Hex. screw M6 x 45
-
18605252587 GrillGrill
-
1936037 RivetRivet
-
2040001 Reflective sheet (1000mm x 1000mm)Reflective sheet (1000mm x 1000mm)
-
21605351212 Reflective sheetReflective sheet
-
22605351213 Reflective sheetReflective sheet
-
23605351214 Reflective sheetReflective sheet
-
24605351367 Foam acousticFoam acoustic
-
25605351546 GrillGrill
-
2636036 RivetRivet
-
2720008 Washer A5,3Washer A5,3
-
28605451560 Reflective sheetReflective sheet
-
29605451561 Reflective sheetReflective sheet
-
30605451562 Reflective sheetReflective sheet
-
31570277300 PluggPlugg
-
32605351616 Reflective sheetReflective sheet
