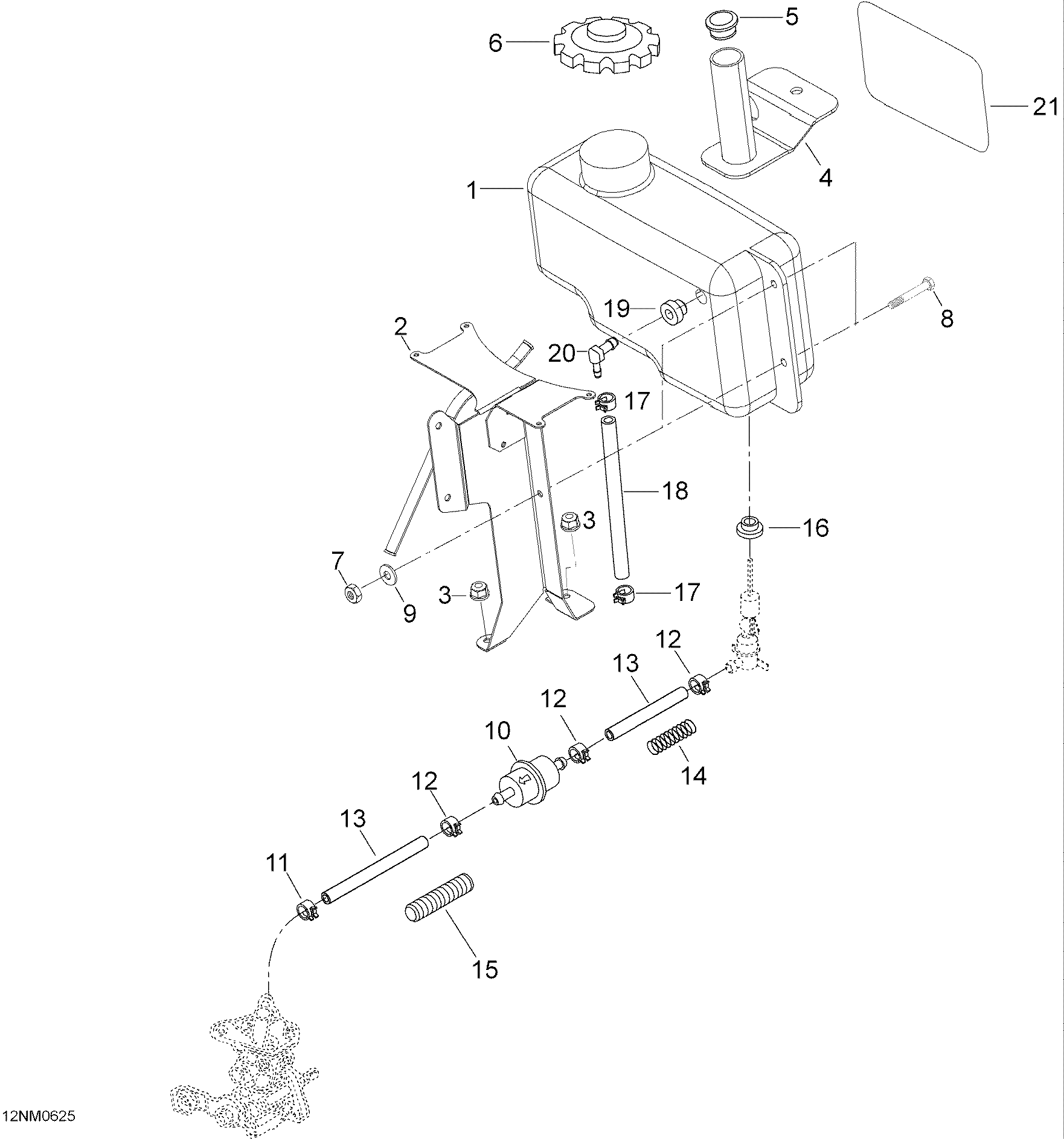

02- Oil System для BRP Lynx Yeti 600 SDI - 2006
-
№АртикулНазвание
-
1605351449 Oil tankOil tank
-
2605352356 BracketBracket
-
333200 Elastic flanged nut M6Elastic flanged nut M6
-
4605351804 BracketBracket
-
528136 PluggPlugg
-
6519000042 CapCap
-
733010 Elastic stop nut M6Elastic stop nut M6
-
840029 Hex. screw M6 x 16Hex. screw M6 x 16
-
920009 Washer 6mmWasher 6mm
-
10414536500 Oil filterOil filter
-
11414420700 ClampClamp
-
12414415200 ClampClamp
-
1339046 HoseHose
-
14519000065 SpringSpring
-
1528015 TubingTubing
-
16570023000 GrommetGrommet
-
17414554800 ClampClamp
-
1839038 HoseHose
-
19570135100 GrommetGrommet
-
20414580700 FittingFitting
-
215443578 Heat protectorHeat protector
