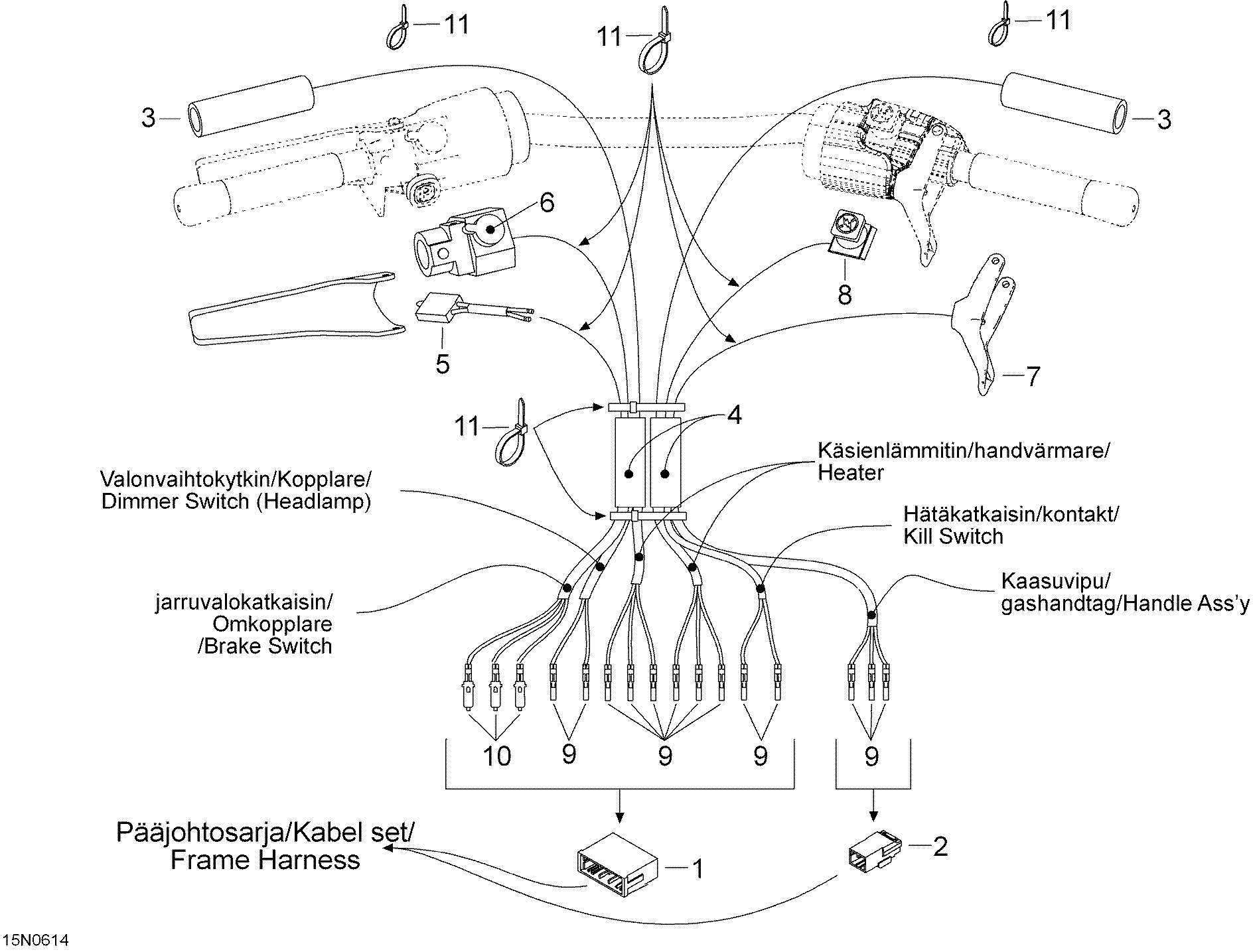

10- Steering Harness для BRP Lynx Forest Fox El - 2006
-
№АртикулНазвание
-
142617 Male connector housingMale connector housing
-
242271 Male connector housingMale connector housing
-
3515175573 Heater elementHeater element
-
439023 TubingTubing
-
5415085700 SwitchSwitch
-
6415085800 Dimmer switchDimmer switch
-
7512059144 Throttle handleThrottle handle
-
8515175410 Emergency switchEmergency switch
-
942603 ConnectorConnector
-
10515175273 Male terminalMale terminal
-
1127026 Tie-rapTie-rap
