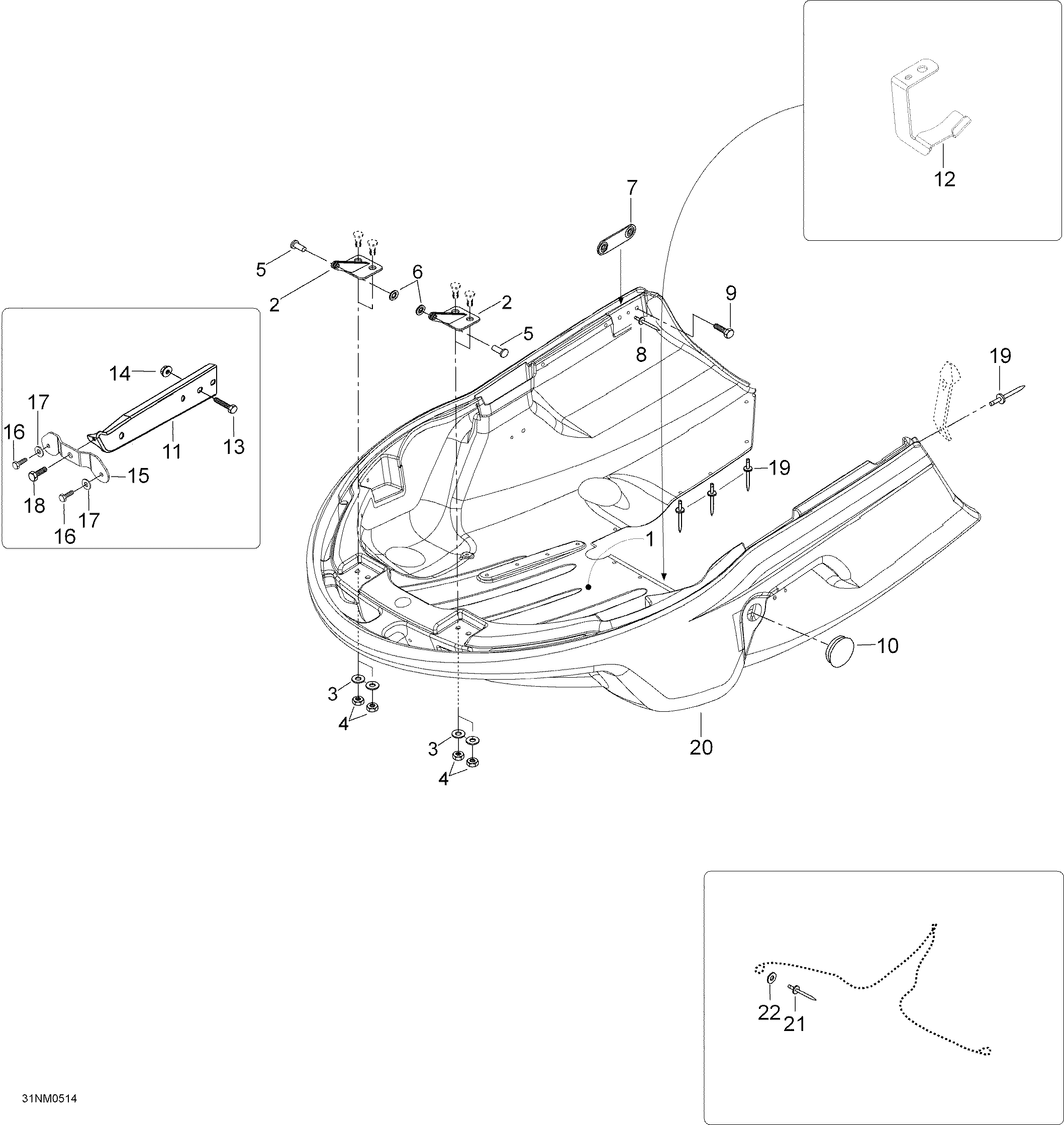

09- Bottom Pan для BRP Lynx Forest Fox El - 2006
-
№АртикулНазвание
-
15444437 Heat protectorHeat protector
-
2517289900 HingeHinge
-
320009 Washer A6.4Washer A6.4
-
433010 Elastic stop nut M6Elastic stop nut M6
-
5390906200 RivetRivet
-
6389804300 CirclipCirclip
-
75446213 Fastening plateFastening plate
-
836009 RivetRivet
-
940377 Self tapping screw M6 x 20Self tapping screw M6 x 20
-
10570277300 PlugPlug
-
115246183 SupportSupport
-
12605351521 L.H. SupportL.H. Support
-
12605351520 R.H. SupportR.H. Support
-
1340336 Hex. screw M8 x 20Hex. screw M8 x 20
-
1433201 Elastic flanged nut M8Elastic flanged nut M8
-
15605352393 SupportSupport
-
16732600030 Self tapping screwSelf tapping screw
-
1720117 WasherWasher
-
1840377 Self tapping screw M6 x 20Self tapping screw M6 x 20
-
1936036 RivetRivet
-
20605151334 Bottom panBottom pan
-
2136009 RivetRivet
-
2220008 Washer A5.3Washer A5.3
