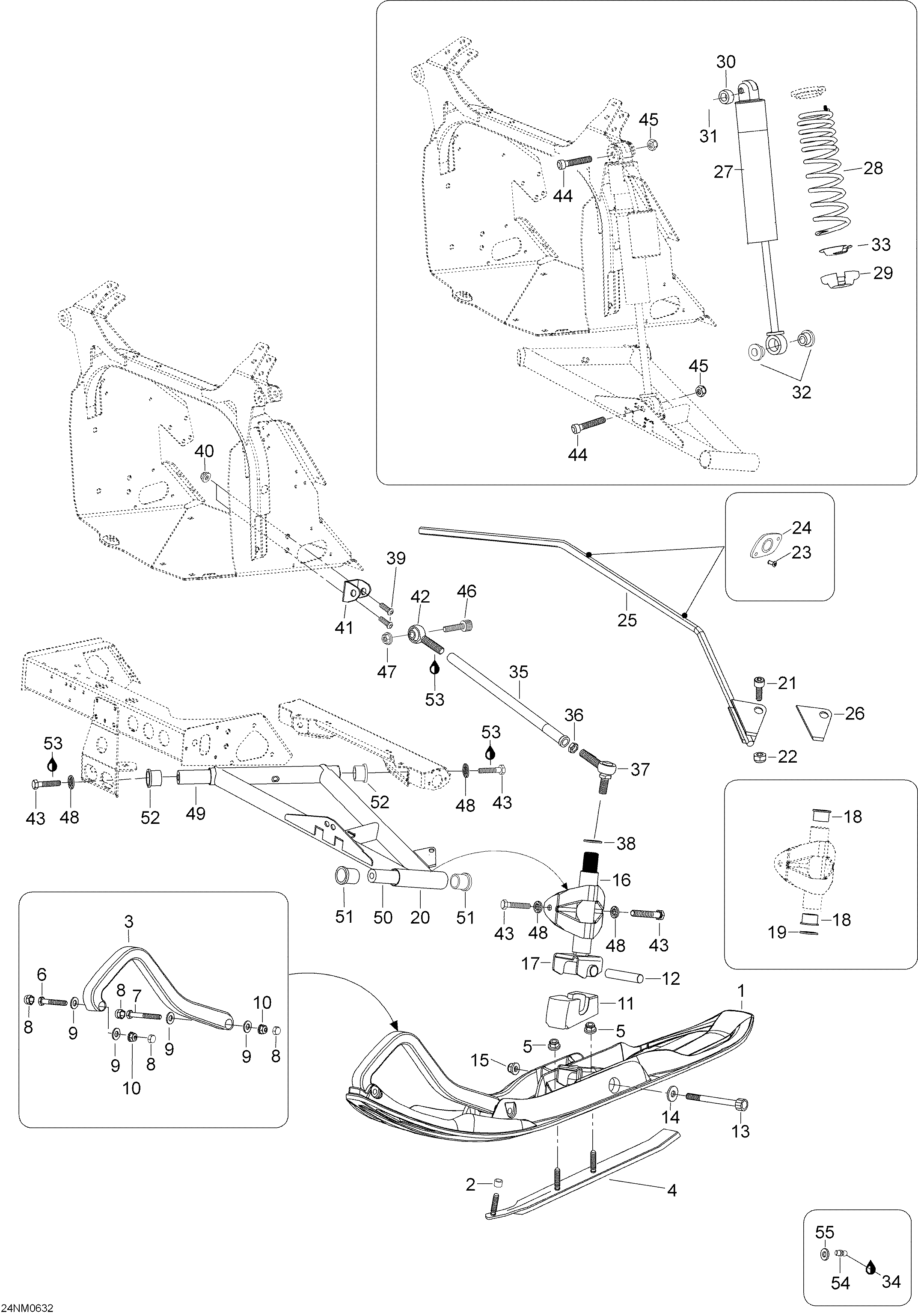

07- Front Suspension And Ski для BRP Lynx Adventure LX 600 - 2006
-
№АртикулНазвание
-
1605153720 CTRL-SkiCTRL-Ski
-
2605454185 SleeveSleeve
-
3505071556 Plastic handle, Full MoonPlastic handle, Full Moon
-
4619400005 Runner ass'y. Includes 4 to 5Runner ass'y. Includes 4 to 5
-
533074 Elastic flanged nut M10Elastic flanged nut M10
-
640009 Hex. screw M8 x 50Hex. screw M8 x 50
-
740264 Hex. screw M8 x 90Hex. screw M8 x 90
-
828056 CapCap
-
920004 Washer 8mmWasher 8mm
-
1033011 Elastic stop nut M8Elastic stop nut M8
-
11570070400 Stopper-skiStopper-ski
-
12506133300 SpacerSpacer
-
1340391 Socket head screw M10 x 130Socket head screw M10 x 130
-
1420105 Washer 10mmWasher 10mm
-
1533074 Elastic flanged nut M10Elastic flanged nut M10
-
16605354276 Skilegtube, Full MoonSkilegtube, Full Moon
-
175245502 Ski legSki leg
-
18505070003 CushionCushion
-
19505070004 WasherWasher
-
20605252085 L.H. Lower armL.H. Lower arm
-
20605252086 R.H. Lower armR.H. Lower arm
-
21605640001 Socket head screw M8 x 35Socket head screw M8 x 35
-
2233010 Elastic stop nut M6Elastic stop nut M6
-
2336103 RivetRivet
-
24605452484 BushingBushing
-
25605252074 StabilisatorStabilisator
-
26605354025 SliderSlider
-
-605352733 R.H. Shock ass'y,. Includes 27 to 33R.H. Shock ass'y,. Includes 27 to 33
-
2723231 R.H.ShockR.H.Shock
-
2825078 SpringSpring
-
29230116 Spring StopperSpring Stopper
-
30414562900 Joint ballJoint ball
-
31371910600 CirclipCirclip
-
32506120200 SleeveSleeve
-
33503141600 CapCap
-
34413711500 Synthetic greaseSynthetic grease
-
35605352656 Upper armUpper arm
-
3633036 Nut M12Nut M12
-
3731092 Ball jointBall joint
-
3820074 Lock washer M12Lock washer M12
-
3940344 Socket head screw M8 x 25Socket head screw M8 x 25
-
4033201 Elastic flanged nut M8Elastic flanged nut M8
-
41605452346 BracketBracket
-
4231095 Ball jointBall joint
-
43605640002 Hex. screw M10 x 40Hex. screw M10 x 40
-
4440852 Socket head screw M10 x 55Socket head screw M10 x 55
-
4533012 Elastic stop nut M10Elastic stop nut M10
-
4640138 Socket head screw M12 x 40Socket head screw M12 x 40
-
4733013 Elastic stop nut M12Elastic stop nut M12
-
4820068 Lock bricka 10mmLock bricka 10mm
-
49605353783 Shaft, lower armShaft, lower arm
-
50605349897 Shaft, lower armShaft, lower arm
-
5131027 CushionCushion
-
52605631001 CushionCushion
-
53293800060 Liima Loctite 243, 10mlLiima Loctite 243, 10ml
-
5434011 Grease fittingGrease fitting
-
5520003 Washer A6,4Washer A6,4
