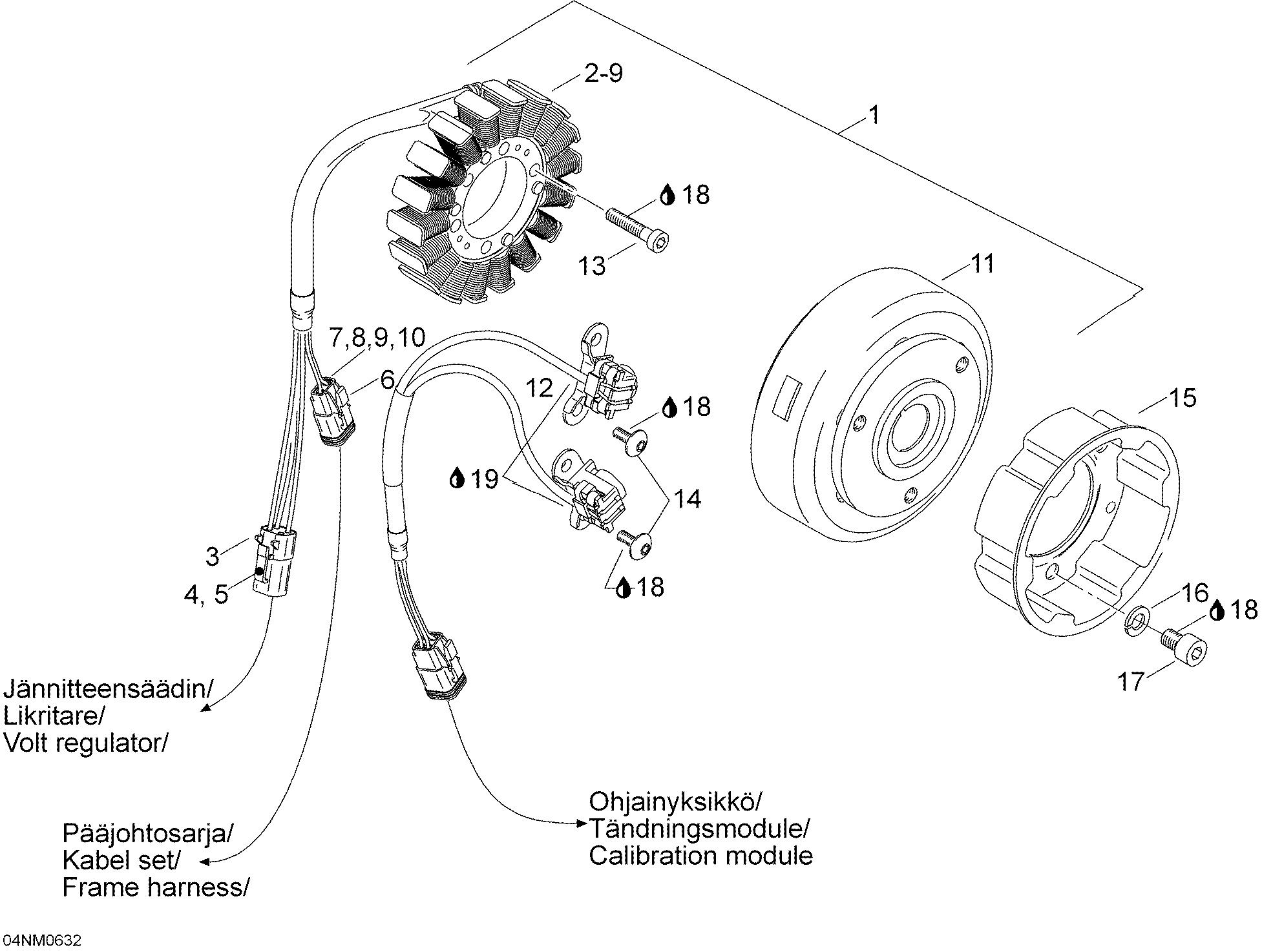

01- Ignition для BRP Lynx Adventure LX 600 - 2006

  • №
    Артикул
    Название
  • 1
    420888237 Magnetto ass'y 12V/360W. Includes 1 to 4
    Magnetto ass'y 12V/360W. Includes 1 to 4
  • 2
    420888313 Stator assy. Includes 1 to 9. Includes 1 to 9
    Stator assy. Includes 1 to 9. Includes 1 to 9
  • 3
    278001473 Female terminal housing
    Female terminal housing
  • 4
    515175568 Female terminal
    Female terminal
  • 5
    278001474 Female lock
    Female lock
  • 6
    515175760 Female terminal housing
    Female terminal housing
  • 7
    278000632 Female terminal
    Female terminal
  • 8
    278001661 Female terminal
    Female terminal
  • 9
    515175675 Female lock
    Female lock
  • 10
    293000052 Plug
    Plug
  • 11
    420888324 Magneto flywheel
    Magneto flywheel
  • 12
    420966803 Pick up assy
    Pick up assy
  • 13
    420840880 Allen screw M6 x 30
    Allen screw M6 x 30
  • 14
    420640321 Taptite screw M5 x 16
    Taptite screw M5 x 16
  • 15
    420852590 Starter cup
    Starter cup
  • 16
    420827405 Lock washer
    Lock washer
  • 17
    420841520 Socket head screw M8 x 12
    Socket head screw M8 x 12
  • 18
    293800060 Loctite 243, 10ml
    Loctite 243, 10ml
  • 19
    293530011 PU-glue, sikaflex 255
    PU-glue, sikaflex 255
