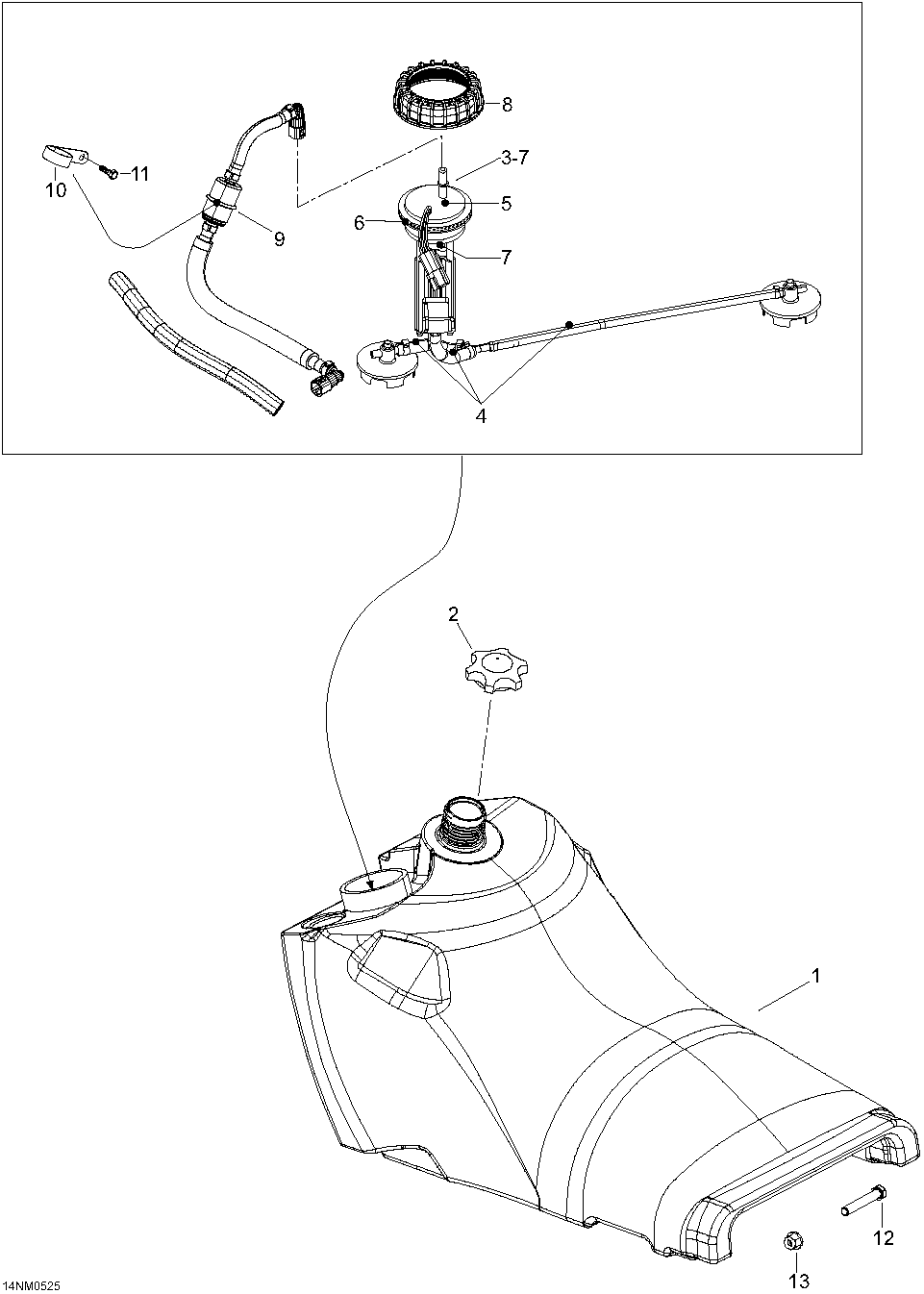

02- Fuel System для BRP Lynx Enduro 600HO SDI - 2005
-
№АртикулНазвание
-
1605251347 Fuel tankFuel tank
-
2709000059 CapCap
-
3605351839 Fuel pump module. Includes 3 to 7Fuel pump module. Includes 3 to 7
-
419187 Fuel hose kitFuel hose kit
-
519184 Fuel pumpFuel pump
-
6513033039 GasketGasket
-
8513033040 CoverCover
-
9513033106 Fuel line + filterFuel line + filter
-
10513033047 ClampClamp
-
1140327 Hex, screw M6 x 12Hex, screw M6 x 12
-
1240031 Hex, screw M6 x 25Hex, screw M6 x 25
-
1333200 Elastic flanged nut M6Elastic flanged nut M6
