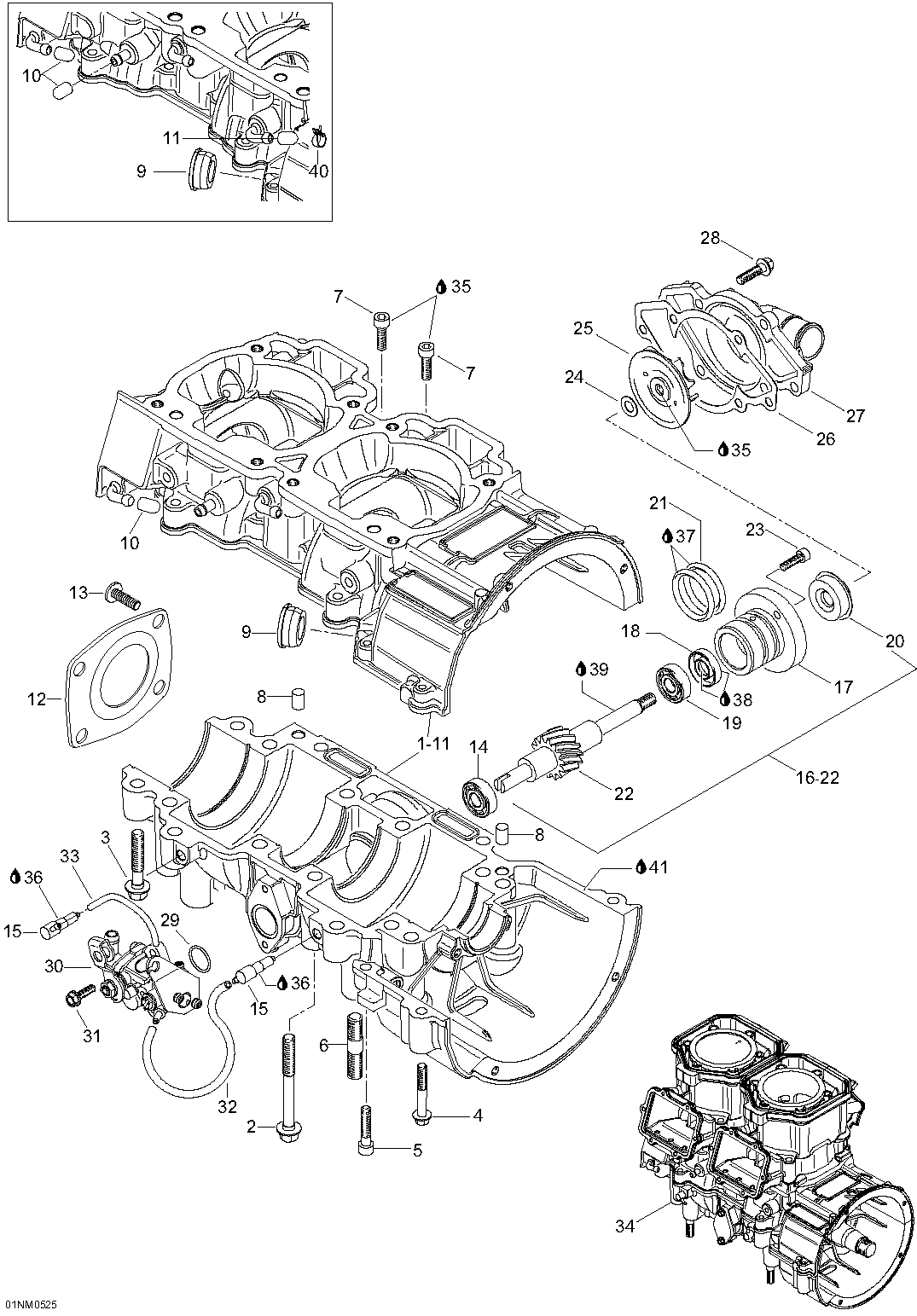

01- Crankcase для BRP Lynx Enduro 600HO SDI - 2005
-
№АртикулНазвание
-
1420889613 Crankcase ass'y. Includes 1 to 11Crankcase ass'y. Includes 1 to 11
-
2420640836 Screw M8 x 75Screw M8 x 75
-
3420640431 Screw M8 x 45Screw M8 x 45
-
4420640311 Screw M6 x 45Screw M6 x 45
-
5205063044 Allen screw M6 x 30Allen screw M6 x 30
-
6420641834 Stud M10 x 29Stud M10 x 29
-
7420840401 Allen screw M6 x 22Allen screw M6 x 22
-
8420632010 PinPin
-
9420860965 Cable grommetCable grommet
-
10420960770 Closure capClosure cap
-
11420960777 PlugPlug
-
12420812420 Oil seal coverOil seal cover
-
13420941430 Screw M6 x 20Screw M6 x 20
-
14420232100 Ball bearingBall bearing
-
15420956510 Checkvalve assyCheckvalve assy
-
16420837421 Waterpump/oilpump shaft. Includes 16 to 22Waterpump/oilpump shaft. Includes 16 to 22
-
18420230196 Oil sealOil seal
-
19420232100 Ball bearingBall bearing
-
20420650370 Rotary sealRotary seal
-
21420950890 O-ringO-ring
-
23420840511 Allen screw M5 x 16Allen screw M5 x 16
-
24420227945 Thrust washerThrust washer
-
25420222505 ImpellerImpeller
-
26420931810 GasketGasket
-
27420922630 Pump housingPump housing
-
28420240031 Screw M6 x 25Screw M6 x 25
-
29420230400 O-ringO-ring
-
30420888780 Oil pumpOil pump
-
31420941925 Taptite screw M5 x 16Taptite screw M5 x 16
-
32420660421 Oil line 70 mmOil line 70 mm
-
33420660423 Oil line 115 mmOil line 115 mm
-
34300059371 Short block engineShort block engine
-
35293800060 Loctite 243, 10mlLoctite 243, 10ml
-
36413711400 Loctite 648, 10 mlLoctite 648, 10 ml
-
37413707000 Molykote 111Molykote 111
-
38420899271 Klueber petamo, 250gr.Klueber petamo, 250gr.
-
391472236 Injection oil (8 x 1 l)Injection oil (8 x 1 l)
-
40414420700 ClampClamp
-
41420899791 Loctite 5910, 50mlLoctite 5910, 50ml
