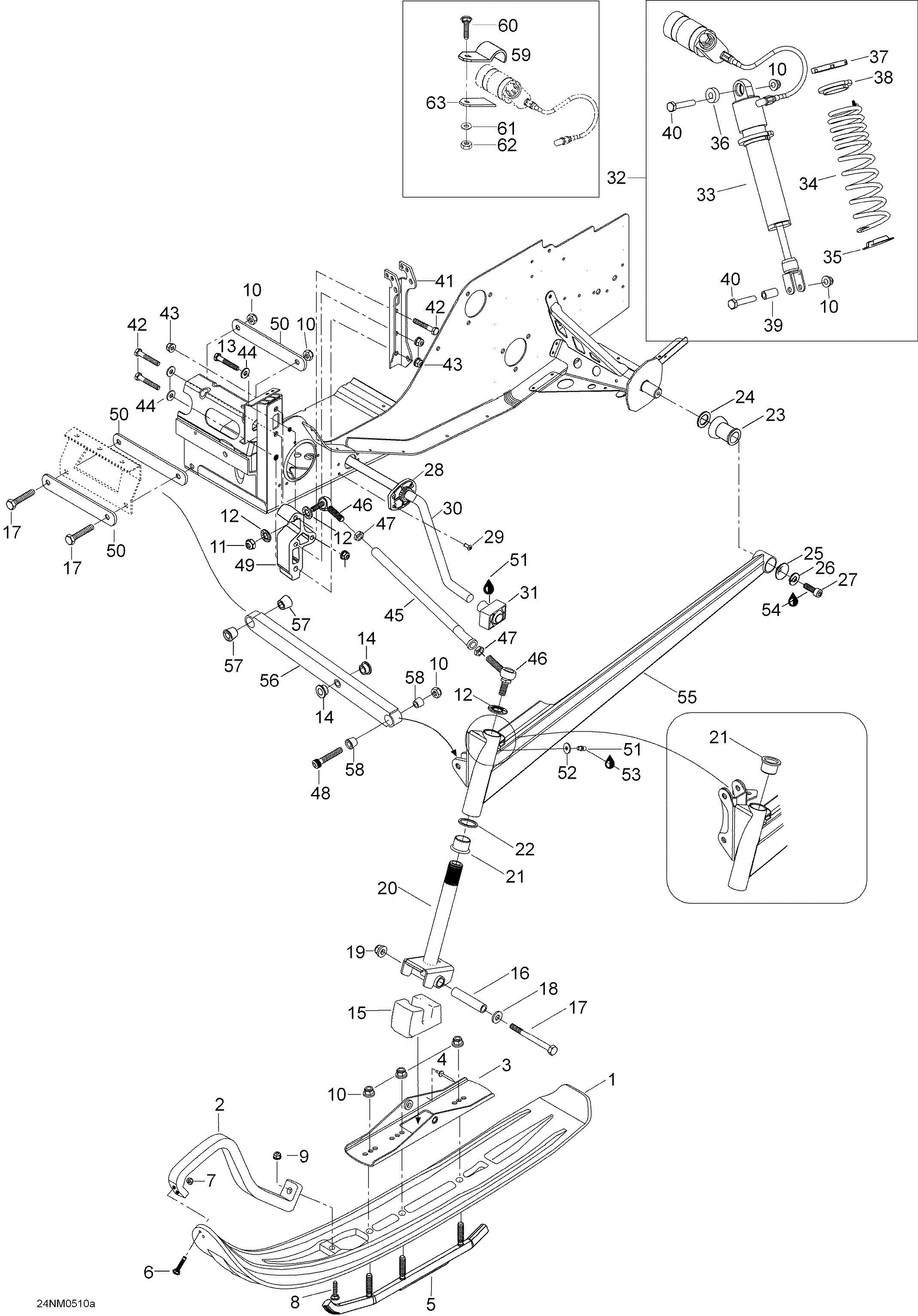

07- Front Suspension And Ski, 400RC для BRP Lynx Enduro 400RC - 2005

  • №
    Артикул
    Название
  • 1
    28002 Plastic ski, SLP
    Plastic ski, SLP
  • 2
    28003 Handle, Red
    Handle, Red
  • 3
    605352068 Bridge
    Bridge
  • 4
    36072 Rivet
    Rivet
  • 5
    60534937 Ru?nner carbide
    Ru?nner carbide
  • 6
    40393 Socket head screw M6 x 30
    Socket head screw M6 x 30
  • 7
    33200 Elastic flanged nut M6
    Elastic flanged nut M6
  • 8
    40137 Socket head screw M8 x 40
    Socket head screw M8 x 40
  • 9
    33201 Elastic flanged nut M8
    Elastic flanged nut M8
  • 10
    33012 Elastic stop nut M10
    Elastic stop nut M10
  • 11
    33087 Elastic stop nut M12
    Elastic stop nut M12
  • 12
    20074 Lock washer M12
    Lock washer M12
  • 13
    40010 Hex. screw M8 x 55
    Hex. screw M8 x 55
  • 14
    31029 Cushion
    Cushion
  • 15
    506151233 Rubber damper
    Rubber damper
  • 16
    506133300 Sleeve
    Sleeve
  • 17
    40814 Hex. screw M10 x 110
    Hex. screw M10 x 110
  • 18
    20105 Washer, hardened M10
    Washer, hardened M10
  • 19
    33074 Elastic flanged nut M10
    Elastic flanged nut M10
  • 20
    605248927 Ski leg
    Ski leg
  • 21
    505070003 Cushion
    Cushion
  • 22
    505070004 Washer
    Washer
  • 23
    570062200 Rubber damper
    Rubber damper
  • 24
    503146700 Washer
    Washer
  • 25
    506079600 Cup
    Cup
  • 26
    20014 Lock washer A8
    Lock washer A8
  • 27
    40289 Socket head screw M8 x 25
    Socket head screw M8 x 25
  • 28
    505070533 Bushing
    Bushing
  • 29
    36009 Rivet
    Rivet
  • 30
    605248976 Stabilisator
    Stabilisator
  • 31
    505070531 Block-ball joint
    Block-ball joint
  • 32
    605350698 Shock ass'y. Includes 32 to 38, Enduro 400 R.C.
    Shock ass'y. Includes 32 to 38, Enduro 400 R.C.
  • 33
    23197 Shock. Enduro 400 R.C.
    Shock. Enduro 400 R.C.
  • 34
    25051 Spring
    Spring
  • 35
    230076 Guide spring
    Guide spring
  • 36
    230055 Rubber bushing
    Rubber bushing
  • 37
    230053 Adjusting ring
    Adjusting ring
  • 38
    230054 Guide spring
    Guide spring
  • 39
    5441433 Sleeve
    Sleeve
  • 40
    40837 Socket head screw M10 x 55
    Socket head screw M10 x 55
  • 41
    5248048 L.H. Shock bracket
    L.H. Shock bracket
  • 41
    5248049 R.H. Shock bracket
    R.H. Shock bracket
  • 42
    40264 hex. screw M8 x 90
    hex. screw M8 x 90
  • 43
    33201 Elastic stop nut M8
    Elastic stop nut M8
  • 44
    20104 Washer, hardened M8
    Washer, hardened M8
  • 45
    5346122 Upper arm
    Upper arm
  • 46
    31092 Ball joint
    Ball joint
  • 47
    33048 Nut M12
    Nut M12
  • 48
    40858 Socket head screw M10 x 50
    Socket head screw M10 x 50
  • 49
    5447559 L.H. Upper bracket
    L.H. Upper bracket
  • 49
    5447566 R.H. Upper bracket
    R.H. Upper bracket
  • 50
    5346112 Support plate
    Support plate
  • 51
    34011 Grease fitting
    Grease fitting
  • 52
    20007 Washer A6,4
    Washer A6,4
  • 53
    293550033 Synthetic grease
    Synthetic grease
  • 54
    293800060 Loctite 243, 10ml
    Loctite 243, 10ml
  • 55
    605248964 R.H. Swing arm (Viper Red)
    R.H. Swing arm (Viper Red)
  • 55
    605248963 L.H. Swing arm (Viper Red)
    L.H. Swing arm (Viper Red)
  • 56
    605248967 Lower arm ass'y (Viper Red). Includes 56 to 58
    Lower arm ass'y (Viper Red). Includes 56 to 58
  • 57
    5447769 Sleeve
    Sleeve
  • 58
    5447770 Sleeve
    Sleeve
  • 59
    5446702 Bracket
    Bracket
  • 60
    40846 Locking screw M6 x 16
    Locking screw M6 x 16
  • 61
    20009 Washer A6.4
    Washer A6.4
  • 62
    33010 Elastic stop nut M6
    Elastic stop nut M6
  • 63
    5448228 Support plate
    Support plate
