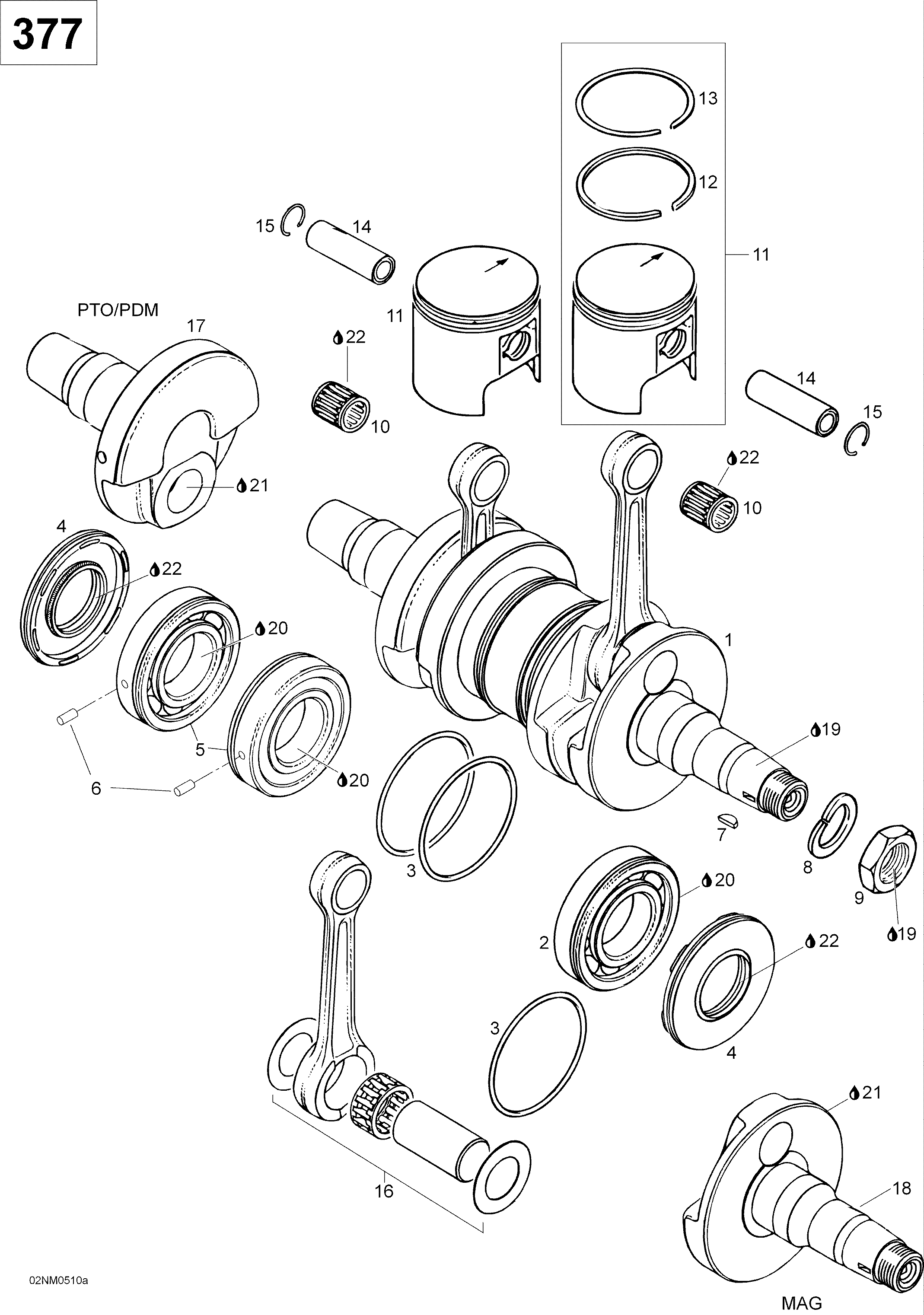

01- Crankshaft And Pistons 377 для BRP Lynx Enduro 400RC - 2005

  • №
    Артикул
    Название
  • 1
    420889630 Crankshaft ass'y. Include 1 to 7
    Crankshaft ass'y. Include 1 to 7
  • 2
    420832570 Bearing 6207
    Bearing 6207
  • 3
    420250165 O-ring
    O-ring
  • 4
    290831950 Oil seal
    Oil seal
  • 5
    420832574 B.Bearing 6207. Include 5 to 6
    B.Bearing 6207. Include 5 to 6
  • 6
    420929972 Drive Pin
    Drive Pin
  • 7
    420246055 Woodruff Key
    Woodruff Key
  • 8
    420945759 Lock Washer
    Lock Washer
  • 9
    420842230 Nut
    Nut
  • 10
    420932904 Needle cage
    Needle cage
  • 11
    420890060 Piston assy, 61.93mm. Include 11 to 13
    Piston assy, 61.93mm. Include 11 to 13
  • 11
    420890061 Piston assy, 62.18mm. Include 11 to 13
    Piston assy, 62.18mm. Include 11 to 13
  • 11
    420890062 Piston assy, 62.43mm. Include 11 to 13
    Piston assy, 62.43mm. Include 11 to 13
  • 12
    420915895 Piston ring 62.00 mm
    Piston ring 62.00 mm
  • 12
    420915896 Piston ring 62.25 mm
    Piston ring 62.25 mm
  • 12
    420915897 Piston ring 62.50 mm
    Piston ring 62.50 mm
  • 13
    420215215 Piston ring 62.00 mm
    Piston ring 62.00 mm
  • 13
    420215216 Piston ring 62.25 mm
    Piston ring 62.25 mm
  • 13
    420215217 Piston ring 62.50 mm
    Piston ring 62.50 mm
  • 14
    420916260 Piston pin
    Piston pin
  • 15
    420945735 Circlip
    Circlip
  • 16
    420889634 Rod repair kit
    Rod repair kit
  • 17
    420818204 Crankhalf P.T.O side
    Crankhalf P.T.O side
  • 18
    420819010 Crankhalf MAG Side
    Crankhalf MAG Side
  • 19
    293800060 Loctite 243, 10ml
    Loctite 243, 10ml
  • 20
    293800070 Loctite 767, 10ml
    Loctite 767, 10ml
  • 21
    413711400 Loctite 648, 10ml
    Loctite 648, 10ml
  • 22
    413802900 Injection oil (12 x 1 Liter)
    Injection oil (12 x 1 Liter)
