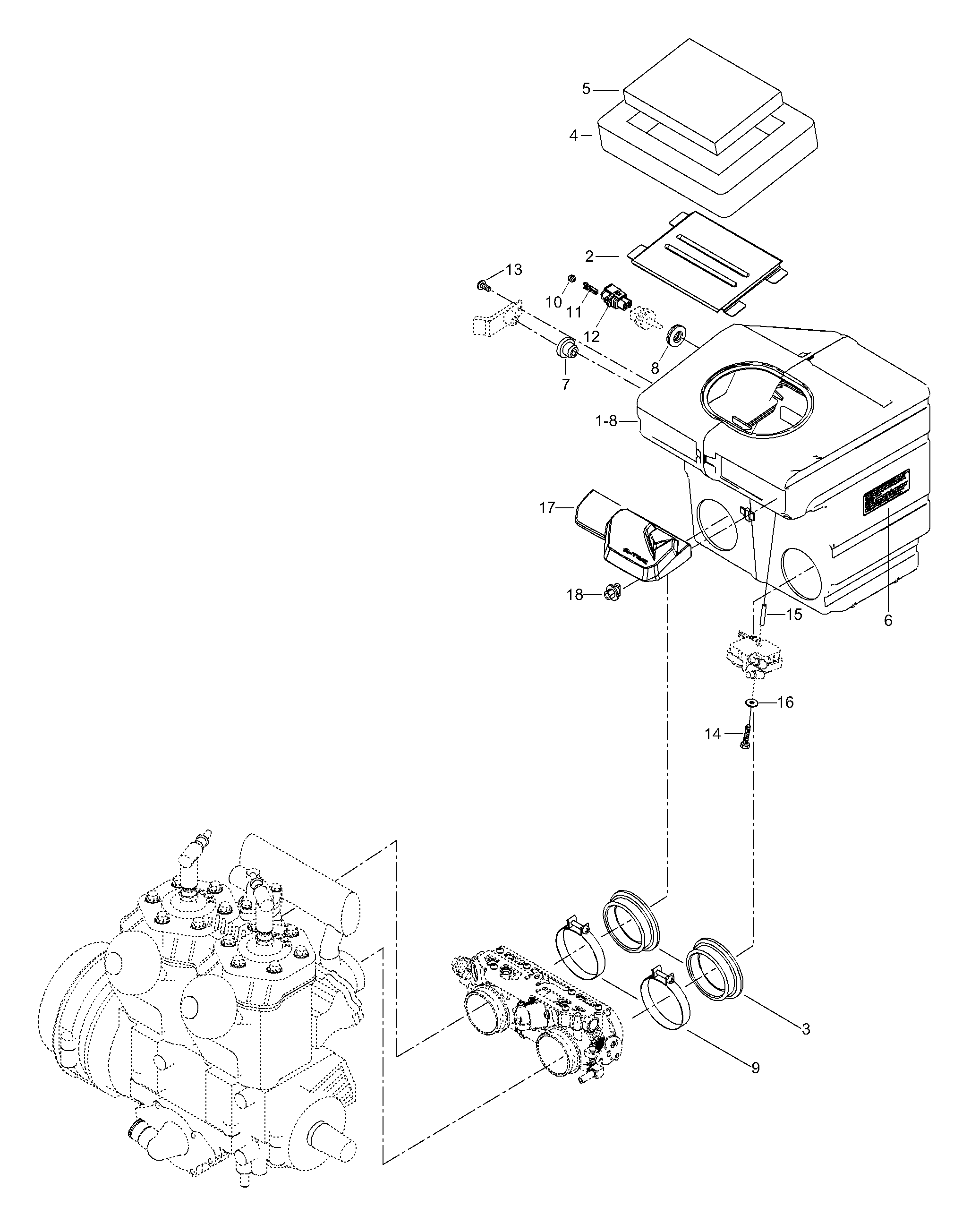

01- Air Silencer для BRP Lynx Sport Touring 800 - 2004
-
№АртикулНазвание
-
1508000313 Air intake assy. Includes items 1 thru 8Air intake assy. Includes items 1 thru 8
-
2508000004 Intake grillIntake grill
-
3508000092 Intake adaptorIntake adaptor
-
4508000099 Lower foamLower foam
-
5508000154 Air filterAir filter
-
6516001191 Label cautionLabel caution
-
7513032908 GrommetGrommet
-
8570065500 GrommetGrommet
-
9508000346 ClampClamp
-
10278000999 SealSeal
-
11278000998 Female terminalFemale terminal
-
12515175588 HousingHousing
-
13414745900 ScrewScrew
-
1440193 Screw M6 x 50Screw M6 x 50
-
15512059812 SleeveSleeve
-
16234161471 Spring washerSpring washer
-
17512059666 CoverCover
-
18512059786 LockLock
