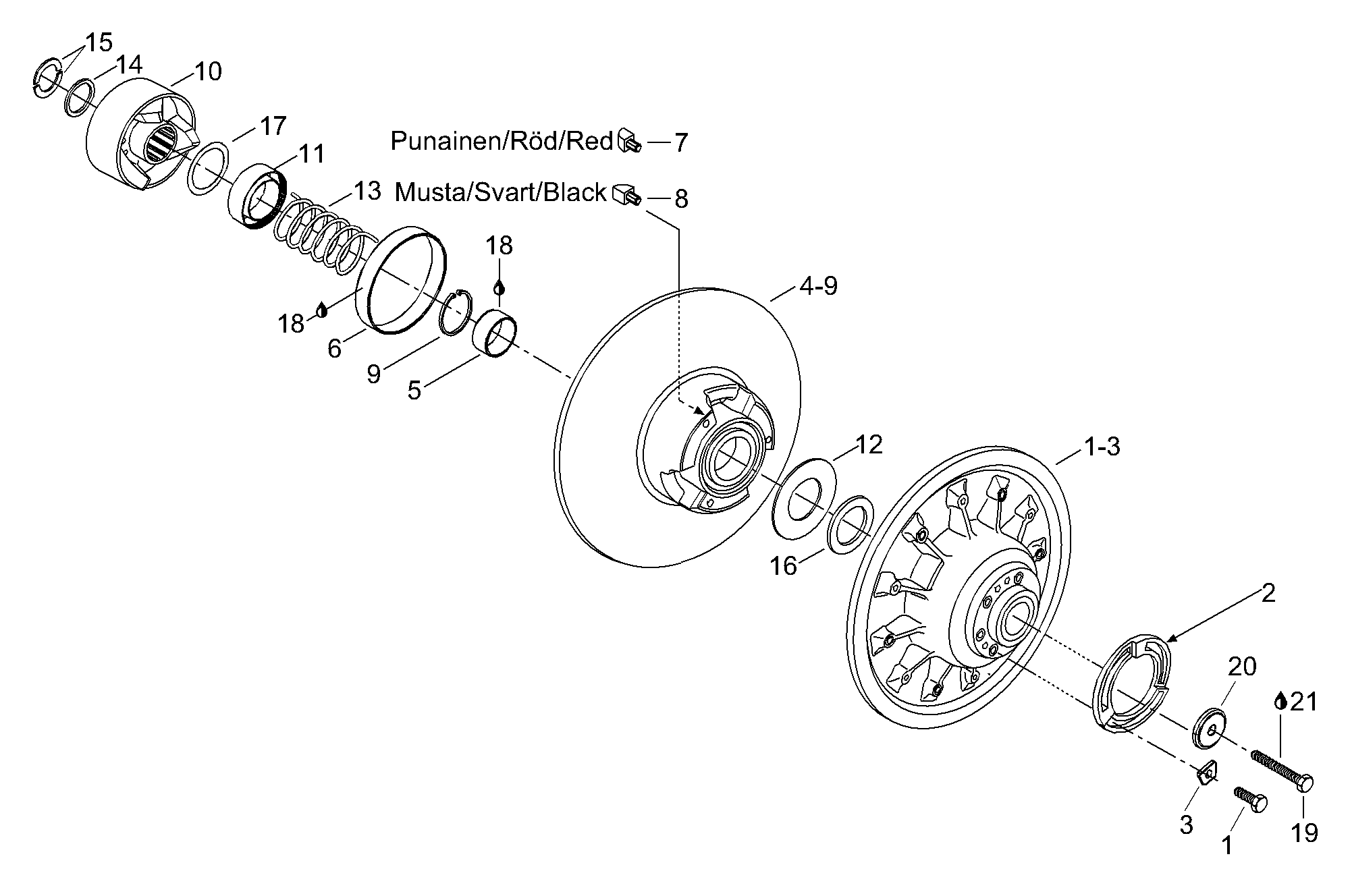

05- Driven Pulley для BRP Lynx Sport Touring 800 - 2004
-
№АртикулНазвание
-
1417126603 Fixed half pulley assy. Includes items 1 thru 3Fixed half pulley assy. Includes items 1 thru 3
-
1207162544 Screw M6 x 25Screw M6 x 25
-
1207162244 Screw M6 x 22Screw M6 x 22
-
2415005800 Ring-adjustmentRing-adjustment
-
3415005900 Shim-adjustmentShim-adjustment
-
4417126605 Sliding pulley assy. Includes items 4 thru 9Sliding pulley assy. Includes items 4 thru 9
-
5414978200 BushingBushing
-
6414978100 BushingBushing
-
7417126373 Cam slide shoe (rear)Cam slide shoe (rear)
-
8417126374 Cam slide shoe (front)Cam slide shoe (front)
-
9371911200 CirclipCirclip
-
10417126385 Cam 47-44 degr.Cam 47-44 degr.
-
11417126381 ProtectorProtector
-
12504099600 Stopper washerStopper washer
-
13417126687 Spring, blackSpring, black
-
14417126375 SpacerSpacer
-
15371911000 Half keyHalf key
-
16504112300 ShimShim
-
17417126322 Swivel abutmentSwivel abutment
-
18413703100 Loctite 609 10ccLoctite 609 10cc
-
1940089 Screw M8 x 75Screw M8 x 75
-
20517302322 WasherWasher
-
21293800060 Loctite 243, 10 mlLoctite 243, 10 ml
