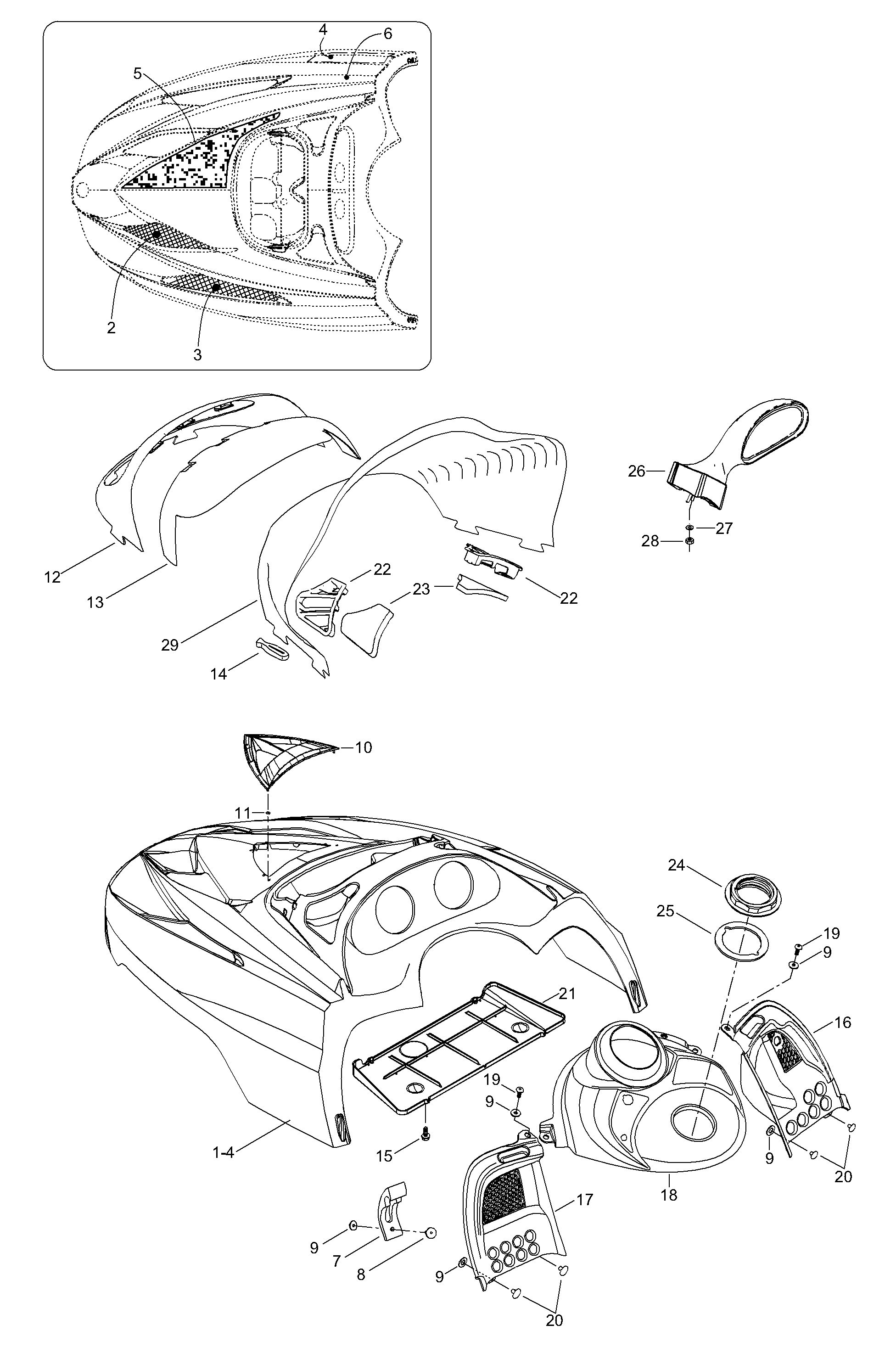

09- Hood для BRP Lynx Ranger V-1000 - 2004
-
№АртикулНазвание
-
1605150446 Hood, Seashore/Earth Grey. Includes items 1 thru 4Hood, Seashore/Earth Grey. Includes items 1 thru 4
-
25346888 R.H. GrillR.H. Grill
-
25346887 L.H. GrillL.H. Grill
-
35346890 R.H. GrillR.H. Grill
-
35346889 L.H. GrillL.H. Grill
-
4605149354 IsolationIsolation
-
5414631900 Foam-acousticFoam-acoustic
-
6517302998 R.H. grillR.H. grill
-
7570027100 Hood latchHood latch
-
836037 RivetRivet
-
920008 WasherWasher
-
10517303016 Middle grillMiddle grill
-
1141034 CirclipCirclip
-
12517302158 Mold. head lampMold. head lamp
-
13517302003 Windshield supportWindshield support
-
14570023800 Windshield latchWindshield latch
-
15243141640 Screw M4 x 16Screw M4 x 16
-
16517302709 R.H.consoleR.H.console
-
17517302006 L.H.consoleL.H.console
-
18517302729 Center consoleCenter console
-
19732600030 ScrewScrew
-
2036036 RivetRivet
-
21605351270 Air intake plateAir intake plate
-
22517302024 R.H. air intake grillR.H. air intake grill
-
22517302025 L.H. air intake grillL.H. air intake grill
-
23605450267 Air intake foamAir intake foam
-
24517302043 Console nutConsole nut
-
255447116 GasketGasket
-
26517302764 R.H. mirrorR.H. mirror
-
26517302766 L.H. mirrorL.H. mirror
-
2720037 WasherWasher
-
2833008 Nut elastic M4Nut elastic M4
-
29517302982 Windshield, xtra highWindshield, xtra high
