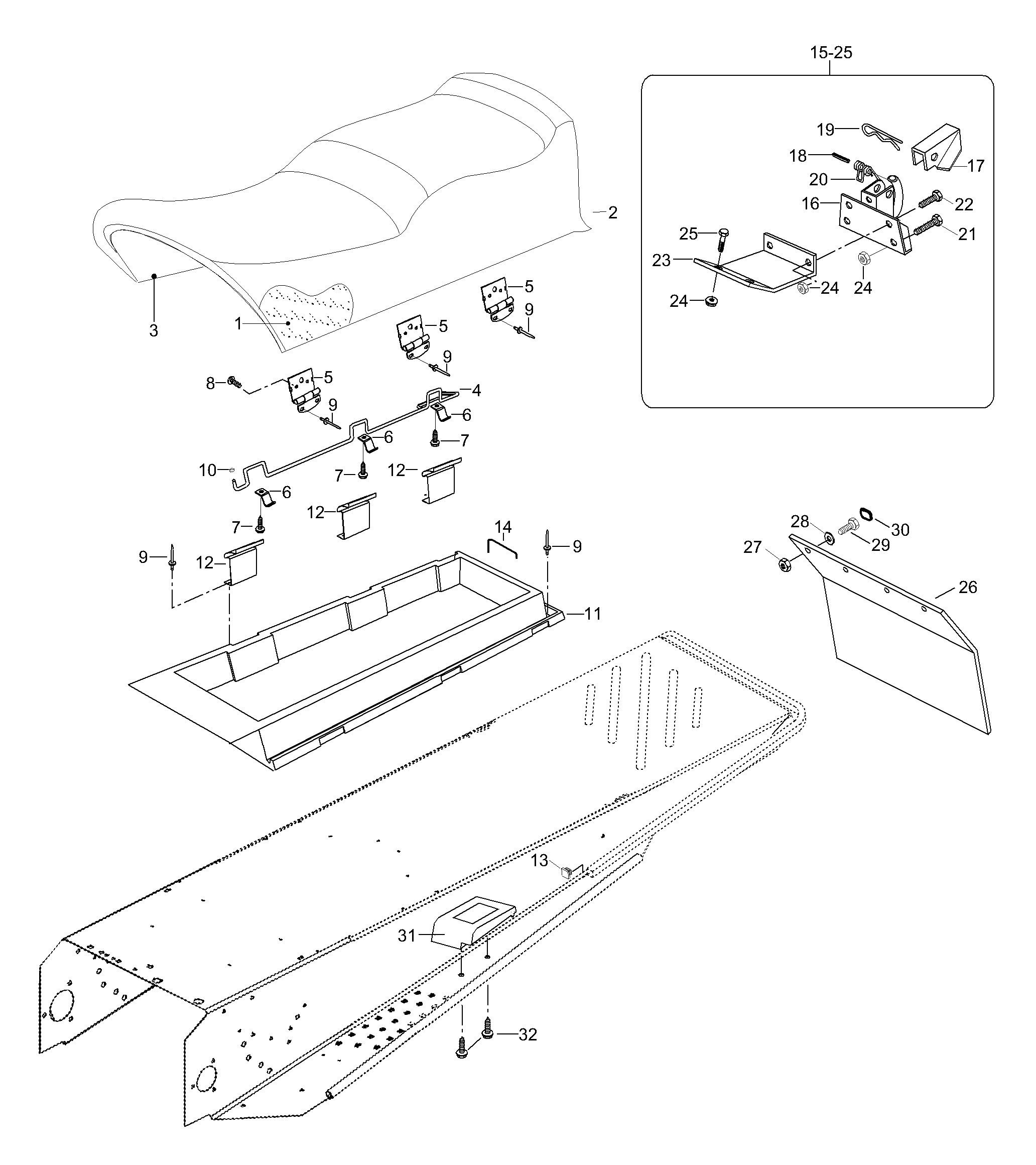

09- Body для BRP Lynx Ranger V-1000 - 2004
-
№АртикулНазвание
-
1605150630 Seat foamSeat foam
-
2605150617 Seat coverSeat cover
-
35144962 Seat baseSeat base
-
45245337 Locking shaftLocking shaft
-
55346518 HingeHinge
-
65446102 Locking plateLocking plate
-
740888 Screw 4,2 x 19Screw 4,2 x 19
-
840887 Screw 4,2 x 9,5Screw 4,2 x 9,5
-
936489 RivetRivet
-
1028019 PlugPlug
-
11605350823 Seat housingSeat housing
-
125345195 Locking deviceLocking device
-
1328232 PlugPlug
-
145441849 Stopper HookStopper Hook
-
155344156 Hitch assy. Includes items 15 thru 25Hitch assy. Includes items 15 thru 25
-
165344208 HitchHitch
-
175440767 LockLock
-
1841012 Spring PinSpring Pin
-
1941029 Needle PinNeedle Pin
-
20545693 SpringSpring
-
2140007 Screw M8 x 40Screw M8 x 40
-
2240037 Screw M8 x 25Screw M8 x 25
-
23605349063 Support plateSupport plate
-
2433201 Elastic flanged nut M8Elastic flanged nut M8
-
2540036 Screw M8 x 20Screw M8 x 20
-
265246860 Snow guardSnow guard
-
2733200 Elastic flanged nut M6Elastic flanged nut M6
-
2820009 WasherWasher
-
2940078 Screw M6 x 22Screw M6 x 22
-
30415073300 CapCap
-
31572088700 R.H. foot restR.H. foot rest
-
31572088800 L.H. foot restL.H. foot rest
-
3240870 ScrewScrew
