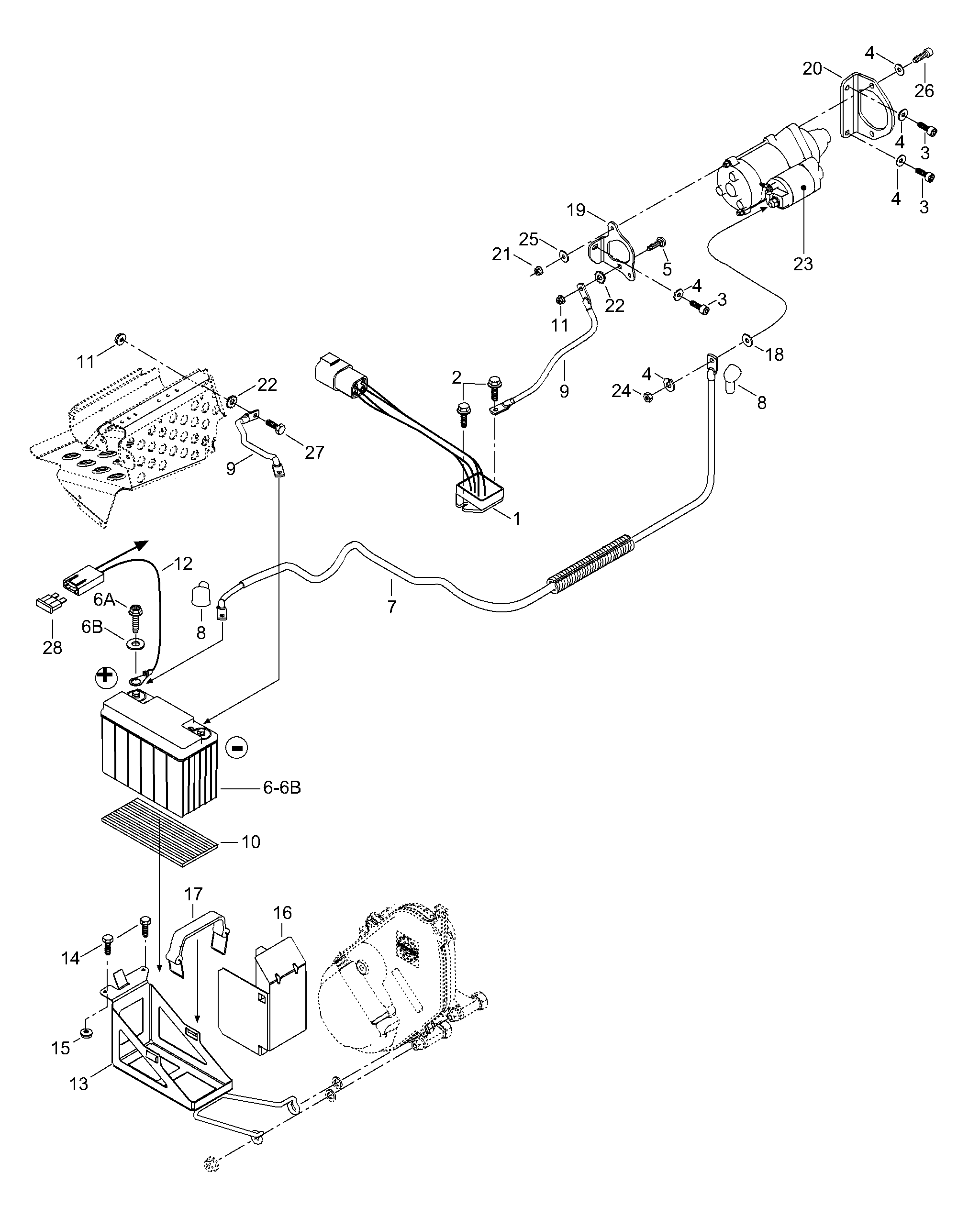

10- Battery для BRP Lynx Explorer 550 - 2004
-
№АртикулНазвание
-
1515175656 Voltage regulatorVoltage regulator
-
240322 Screw M6 x 16Screw M6 x 16
-
340305 Allen screw M8 x 20Allen screw M8 x 20
-
420014 Spring washerSpring washer
-
540866 Locking screw M6 x 20Locking screw M6 x 20
-
6515175642 Battery. Includes items 6 thru 6BBattery. Includes items 6 thru 6B
-
6a207161644 Screw M6 x 16Screw M6 x 16
-
6b391302100 WasherWasher
-
7515175634 Battery wireBattery wire
-
8570151000 Cap protectionCap protection
-
9515175483 Ground wireGround wire
-
105347314 Rubber blanketRubber blanket
-
1133200 Elastic flanged nut M6Elastic flanged nut M6
-
125446894 Wire, fuse-batteryWire, fuse-battery
-
13515175625 Battery supportBattery support
-
1440247 Screw M5 x 16Screw M5 x 16
-
1533062 Elastic flanged nut M5Elastic flanged nut M5
-
16515175643 ProtectorProtector
-
17515175475 Battery strapBattery strap
-
1820004 WasherWasher
-
19515175633 Starter bracket, MAG-sideStarter bracket, MAG-side
-
20515175652 Starter bracket, PTO-sideStarter bracket, PTO-side
-
2133009 Nut elastic M5Nut elastic M5
-
2220017 WasherWasher
-
23515175141 StarterStarter
-
2433003 Nut M8Nut M8
-
25391301700 WasherWasher
-
2640289 Allen screw M8 x 25Allen screw M8 x 25
-
2740029 Screw M6 x 16Screw M6 x 16
-
28410917200 Fuse 30 AFuse 30 A
