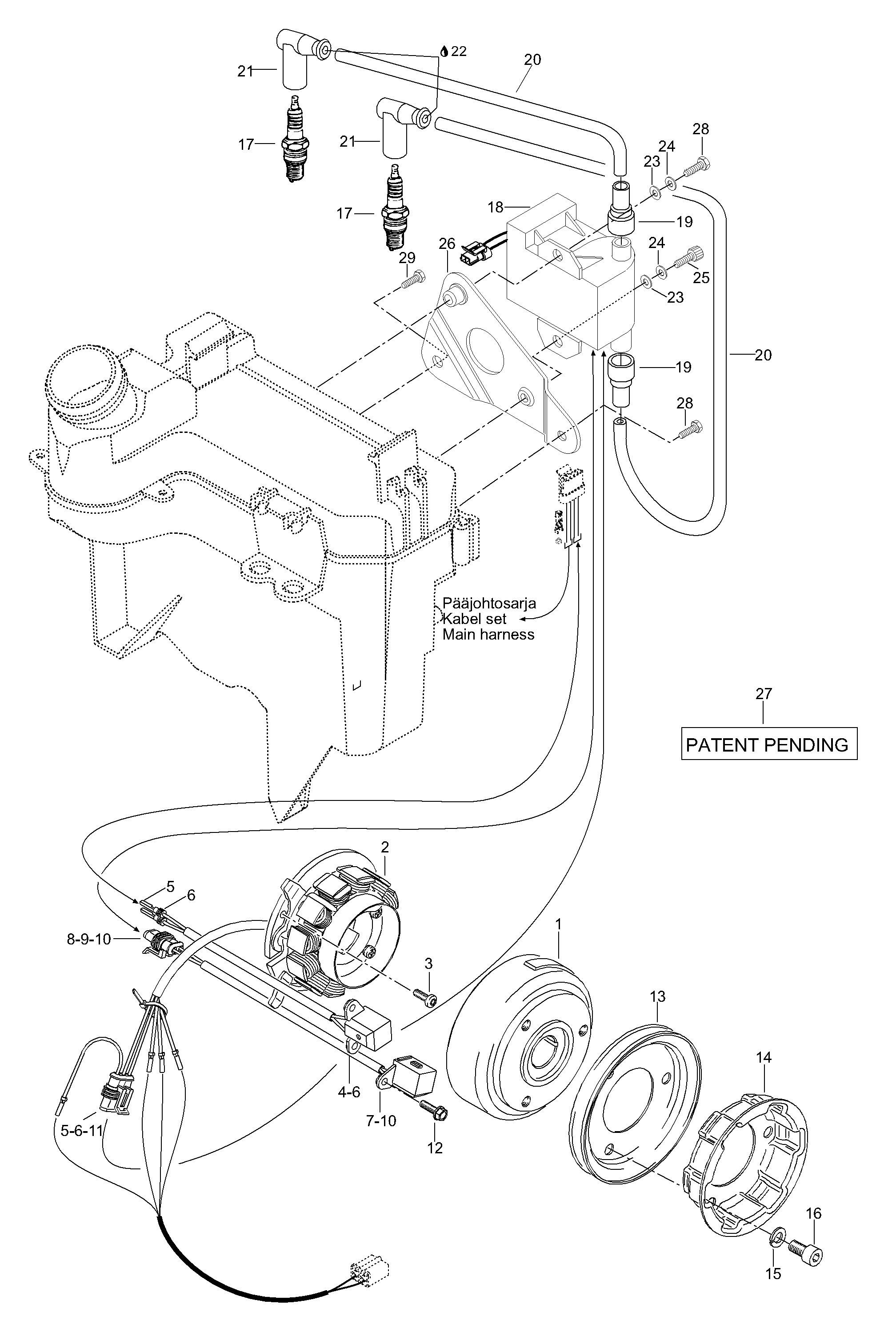

03- Fly Wheel для BRP Lynx Explorer 550 - 2004
-
№АртикулНазвание
-
1420888970 Magneto 12V/340W. Includes items 1 thru 2Magneto 12V/340W. Includes items 1 thru 2
-
1420889375 Fly wheelFly wheel
-
2420889365 Stator assyStator assy
-
3420641521 Torx, allen screw M5 x 16Torx, allen screw M5 x 16
-
4420966548 Pick up assy for reverse. Includes items 4 thru 6Pick up assy for reverse. Includes items 4 thru 6
-
5278001014 Female terminalFemale terminal
-
6278001013 SealSeal
-
7420966546 Pick up assy. Includes items 7 thru 10Pick up assy. Includes items 7 thru 10
-
8409209500 Female terminal housingFemale terminal housing
-
9278001014 Female terminalFemale terminal
-
10278001013 SealSeal
-
11409209600 Female terminal housingFemale terminal housing
-
12420941925 Taptite screw M5 x 16Taptite screw M5 x 16
-
13420980486 V-belt pulleyV-belt pulley
-
14420852414 Starting pulleyStarting pulley
-
15420845311 Lock washerLock washer
-
16420440852 Torx-screw M8 x 16Torx-screw M8 x 16
-
17414961100 Spark plug BR-9ESSpark plug BR-9ES
-
18512059626 Electronic box assy. 18 Includes items 21Electronic box assy. 18 Includes items 21
-
19515174900 Protection capProtection cap
-
20278001268 Ignition cableIgnition cable
-
21278000237 Spark plug connectorSpark plug connector
-
22413711500 Synthetic greaseSynthetic grease
-
2320003 WasherWasher
-
2420052 Spring washerSpring washer
-
2540364 Allen screw M6 x 16Allen screw M6 x 16
-
26512059494 BracketBracket
-
27418003000 Pending-labelPending-label
-
2840052 Screw M6 x 20Screw M6 x 20
-
29209561640 ScrewScrew
