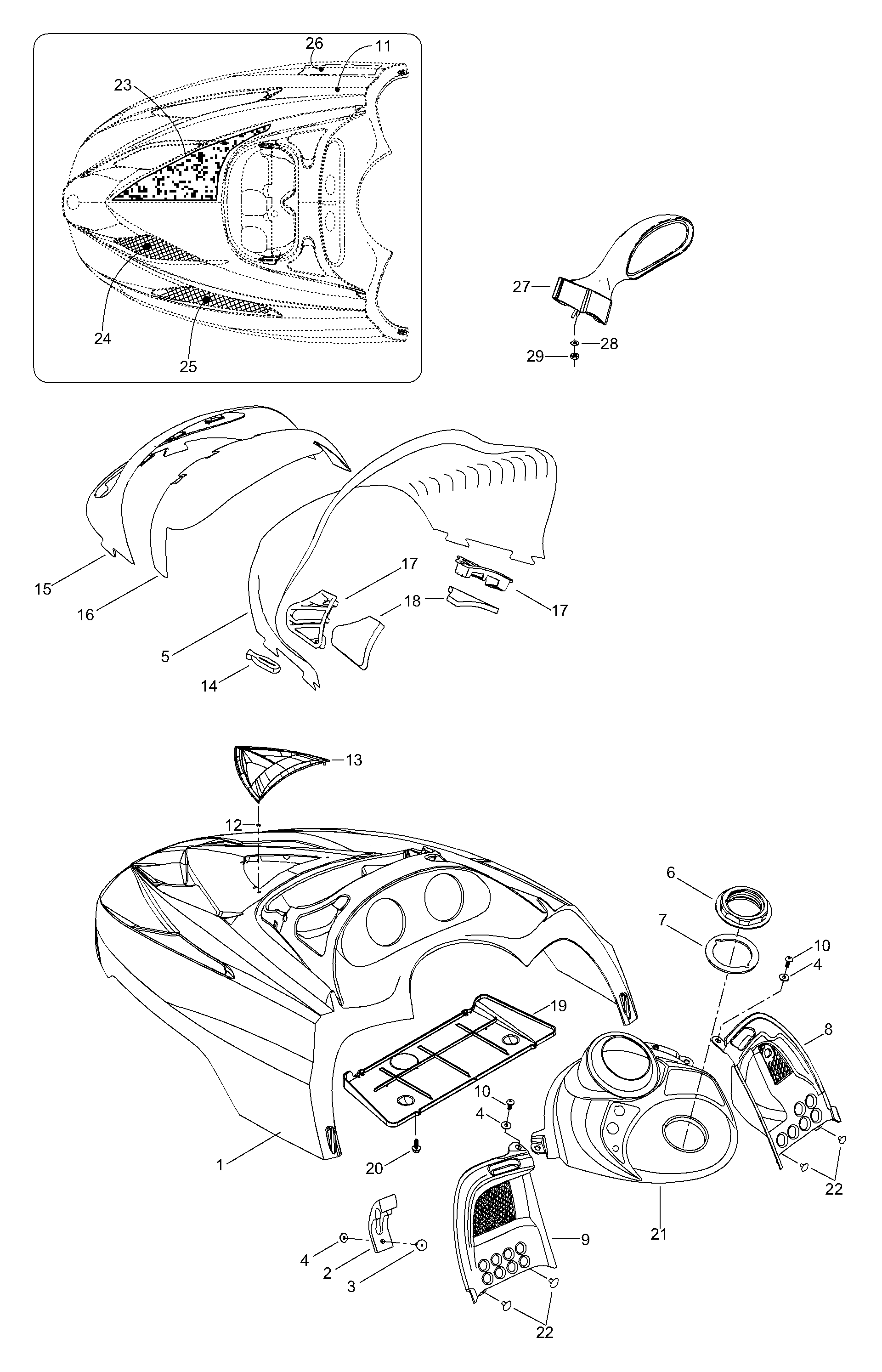

09- Hood для BRP Lynx Ranger V-1000 - 2003
-
№АртикулНазвание
-
1605149108 Hood, blue/silverHood, blue/silver
-
2570027100 Hood latchHood latch
-
336037 RivetRivet
-
420008 WasherWasher
-
5517302982 Windshield, xtra highWindshield, xtra high
-
6517302043 Console nutConsole nut
-
75447116 GasketGasket
-
8517302709 R.H.consoleR.H.console
-
9517302006 L.H.consoleL.H.console
-
10732600030 ScrewScrew
-
11517302998 R.H. grillR.H. grill
-
1241034 CirclipCirclip
-
13517303016 Middle grillMiddle grill
-
14570023800 Windshield latchWindshield latch
-
15517302158 Mold. head lampMold. head lamp
-
16517302003 Windshield supportWindshield support
-
17517302024 R.H. air intake grillR.H. air intake grill
-
17517302025 L.H. air intake grillL.H. air intake grill
-
18517302151 Air intake foamAir intake foam
-
19517302628 Air intake plateAir intake plate
-
20243141640 Screw M4x16Screw M4x16
-
21517302944 Center consoleCenter console
-
2236036 RivetRivet
-
23414631900 Foam-acousticFoam-acoustic
-
245346887 L.H. GrillL.H. Grill
-
245346888 R.H. GrillR.H. Grill
-
255346889 L.H. GrillL.H. Grill
-
255346890 R.H. GrillR.H. Grill
-
26605149354 IsolationIsolation
-
27517302764 R.H. mirrorR.H. mirror
-
27517302766 L.H. mirrorL.H. mirror
-
2820037 WasherWasher
-
2933008 Nut elastic M4Nut elastic M4
