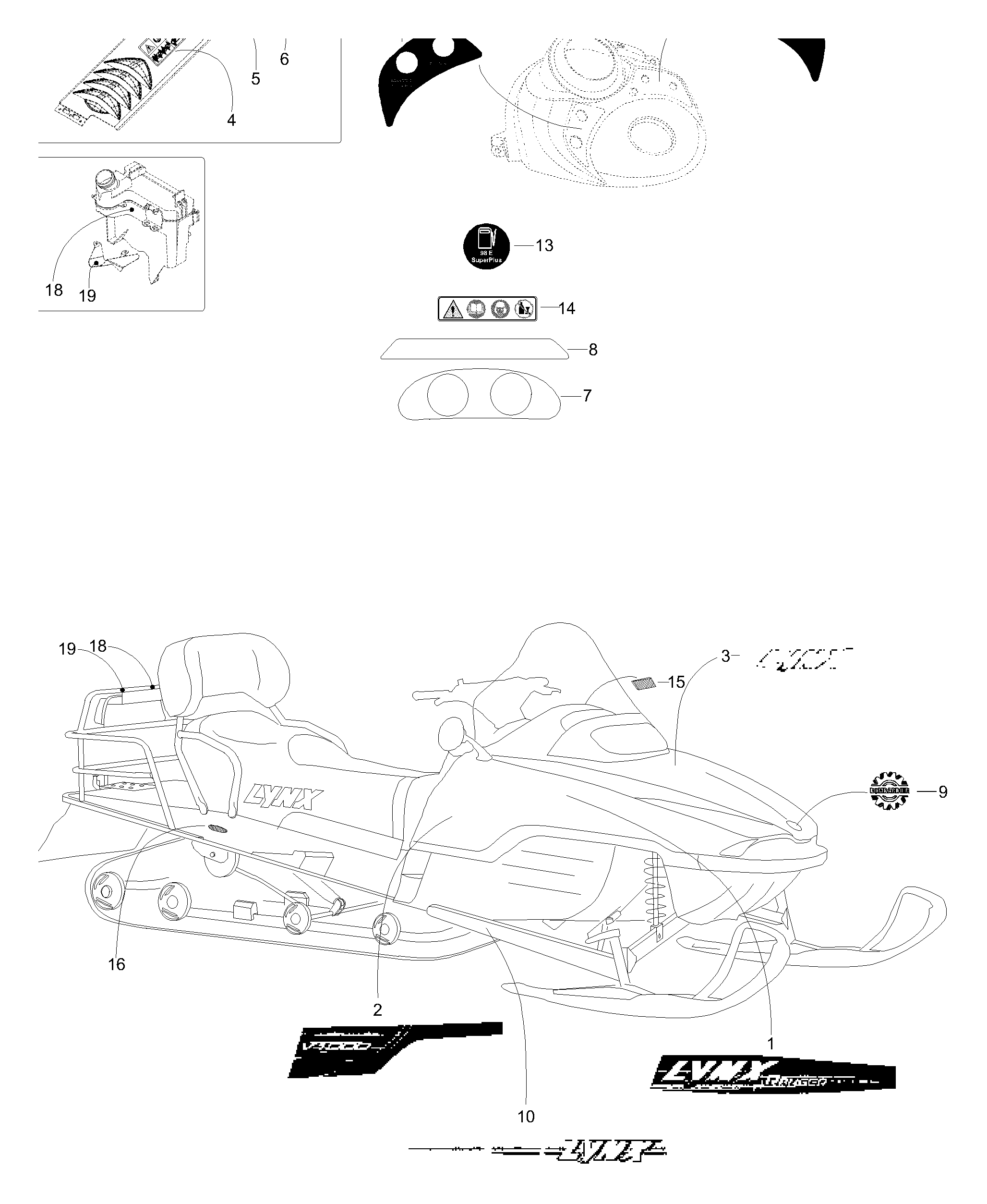

09- Decals для BRP Lynx Ranger V-1000 - 2003
-
№АртикулНазвание
-
1605348568 R.H. Hood decal, upperR.H. Hood decal, upper
-
1605348569 L.H. Hood decal, upperL.H. Hood decal, upper
-
2605348570 R.H. lower decal, hoodR.H. lower decal, hood
-
2605348571 L.H. lower decal, hoodL.H. lower decal, hood
-
3605349270 Hood decal, frontHood decal, front
-
4605448801 Instruction symbol decalInstruction symbol decal
-
55447014 Pulley decalPulley decal
-
65447012 Oil check decalOil check decal
-
7605248800 Control panel decalControl panel decal
-
85346800 Instruction decalInstruction decal
-
9516000983 Logo-BombardierLogo-Bombardier
-
10605348572 R.H. Decal, swing armR.H. Decal, swing arm
-
10605348573 L.H. Decal, swing armL.H. Decal, swing arm
-
11605448798 R.H. console decalR.H. console decal
-
12605449572 Decal, DESS/electric s.Decal, DESS/electric s.
-
135447020 Fuel labelFuel label
-
145447124 Instruction symbol decalInstruction symbol decal
-
1521060 Reflector, brightReflector, bright
-
1621135 Reflector, yellowReflector, yellow
-
175446973 Instruction labelInstruction label
-
185447930 Instruction symbol decalInstruction symbol decal
-
19605448799 Decal, pulling barDecal, pulling bar
