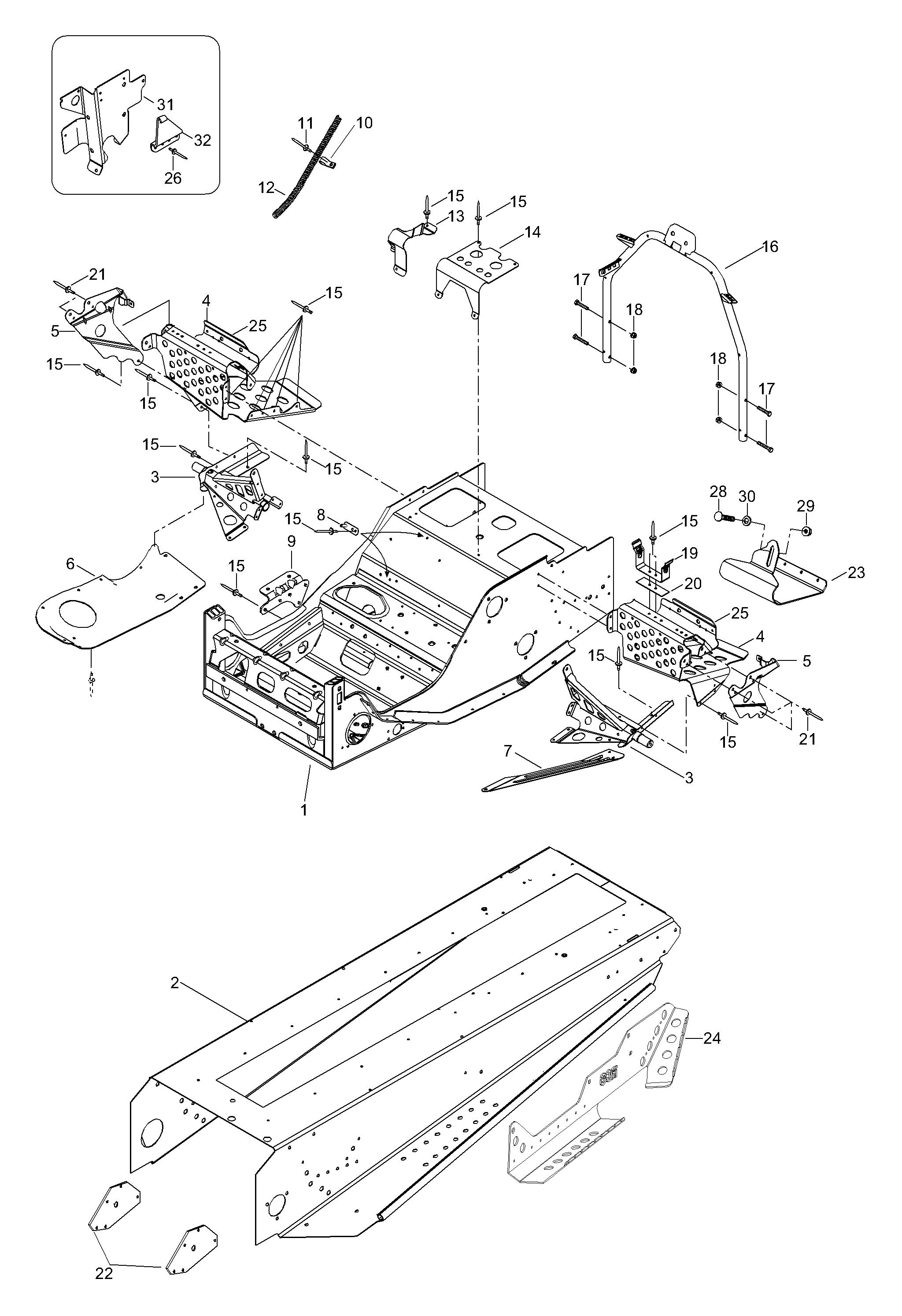

09- Frame для BRP Lynx Rave Cross - 2002
-
№АртикулНазвание
-
15147916 Frame assy. Includes items 1 thru 2Frame assy. Includes items 1 thru 2
-
35247875 R.H. supportR.H. support
-
35247876 L.H. supportL.H. support
-
45147867 R.H. front footrestR.H. front footrest
-
45147868 L.H. front footrestL.H. front footrest
-
55147871 R.H. footrest reinforcem.R.H. footrest reinforcem.
-
55147872 L.H. footrest reinforcem.L.H. footrest reinforcem.
-
6518319760 R.H. bottom pan plateR.H. bottom pan plate
-
7518322119 L.H. reinf. plateL.H. reinf. plate
-
8518319728 Double bracketDouble bracket
-
9518206300 Muffler supportMuffler support
-
1027092 ClipClip
-
1136036 RivetRivet
-
12518321569 Rope guideRope guide
-
13518322699 Hose supportHose support
-
14518310400 Air intake supportAir intake support
-
1536489 RivetRivet
-
165247856 Handle steering supp.Handle steering supp.
-
1740003 Screw M6x35Screw M6x35
-
1833200 Nut M6Nut M6
-
19518202100 Pulley Guard bracketPulley Guard bracket
-
20518207500 ReinforcementReinforcement
-
2136083 RivetRivet
-
225348321 SupportSupport
-
235248038 R.H. toe hold, adjustableR.H. toe hold, adjustable
-
235248039 L.H. toe hold, adjustableL.H. toe hold, adjustable
-
245248135 R.H. holed corner plateR.H. holed corner plate
-
245248136 L.H. holed corner plateL.H. holed corner plate
-
255147869 R.H. toe holdR.H. toe hold
-
255147870 L.H. toe holdL.H. toe hold
-
2636083 RivetRivet
-
2840056 Locking screw M8x16Locking screw M8x16
-
2933010 Elastic nut M8Elastic nut M8
-
3020005 WasherWasher
-
31518322927 BracketBracket
-
32518322928 BracketBracket
